CAUTION:
If the air intake opening
is kept under water, such as turning
constantly in tight circles, water will
get inside bilge, which may cause
severe damage to internal parts of
the engine.
17) Seat Strap
The seat strap provides a handhold to
assist boarding and is used as a hand-
hold for the passenger.
RXP Models
The seat strap is available when the
seat cover is removed.

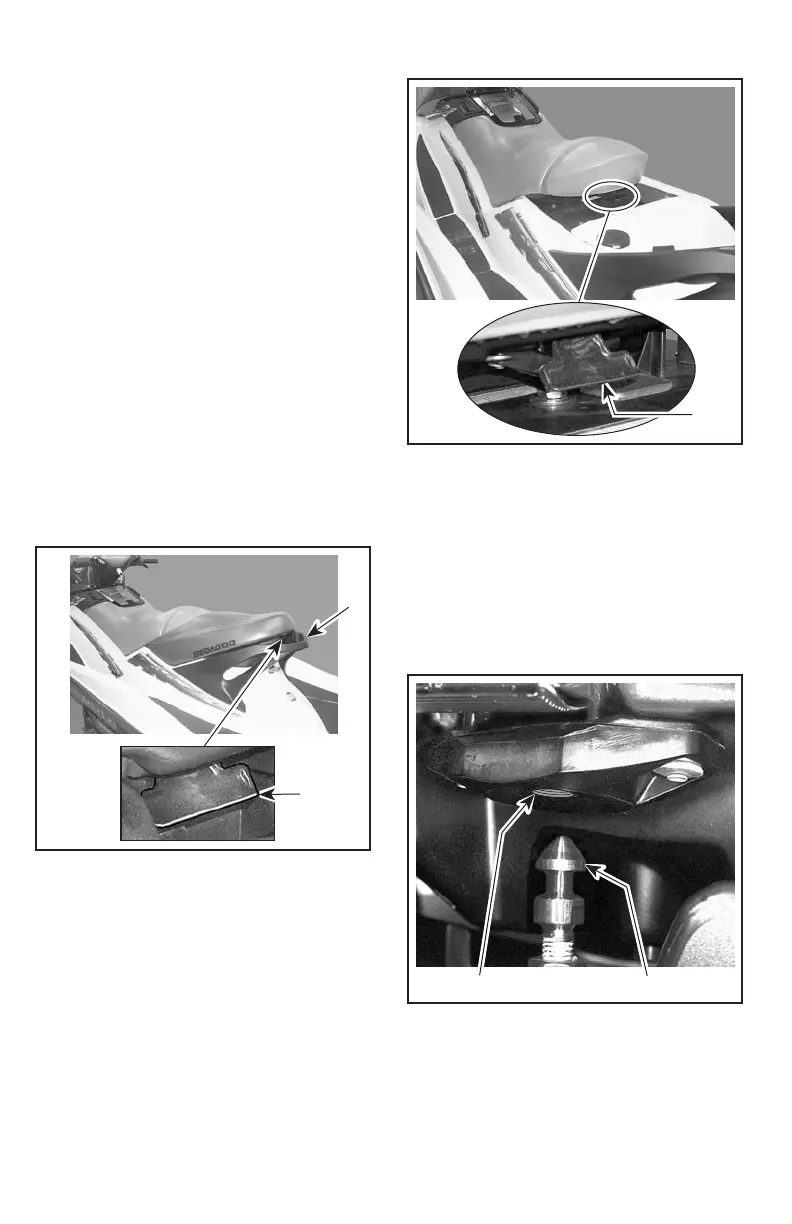

18) Seat Extension Latch
(if so equipped)
Removing the seat extension allows
access to the rear storage basket. It
also gives access to the seat latch.
F18L0FZ
1
2
1. Seat extension latch
2. Rear grab handle
19) Seat Latch
Removing the seat allows access to
the engine compartment.
The seat latch is located at the rear end
and underneath the seat.
1
F18L0CY
1. Seat latch
To remove seat, pull the latch lever
upward and hold. Lift and pull the seat
rearward.
NOTE: It is necessary to remove the
seat extension first.
Tolatchseat,alignlatchholewithpin
then, firmly push down on the rear
portion of the seat.
F00L2TY
12
1. Latch hole
2. Pin
Engine Compartment
Removing the seat gives access to the
engine, electrical and fuel systems.
44
