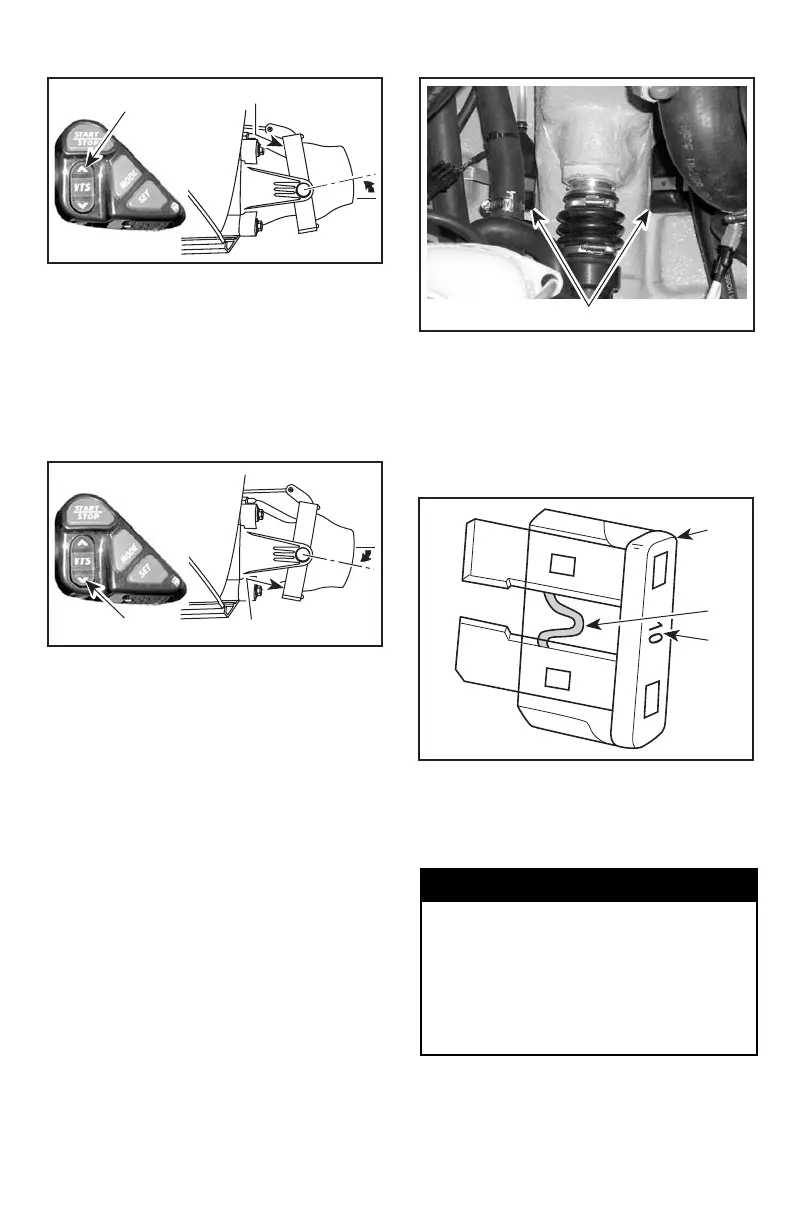

SeaDoo RXP 4-Tec Supercharged - Vacuum Bailer Pick-Ups; Fuses

F19J02Y
1
2
3
TYPICAL
1. Push on arrow pointing upward
on VTS button
2. No interference
3. Nozzle up
Push on arrow pointing downward on
VTS button until VTS stops. The noz-
zle must be down and it must not in-
terfere with the venturi.
F19J03Y
3
2
1
TYPICAL
1. Push on arrow pointing downward
on VTS button
2. No interference
3. Nozzle down
If VTS needs to be readjusted, refer to
an authorized Sea-Doo dealer.
CAUTION:
Trim ring and/or nozzle
should not interfere at any position.
Vacuum Bailer Pick-Ups
They are located each side of the drive
shaft tunnel.
Two pick-ups use a low pressure area
in the jet pump to siphon the water
out of the bilge when the engine is
operating.
Inspect each pick-up screen for ob-
structions, clean as necessary.
F18L11Y
1
TYPICAL
1. Vacuum bailer pick-ups
Fuses
If an electrical problem occurs, check
the fuses. If a fuse is burnt, replace
by one of the same rating.
A15E0KZ
1
2
3
1. Fuse
2. Check if melted
3. Ampere rating
Follow procedures below.

WARNING
Do not use a higher rated fuse as
this can cause severe damage. If
a fuse has burnt out, source of
malfunction should be determined
and corrected before restarting.
See an authorized Sea-Doo dealer
for servicing.
_____________________
93
