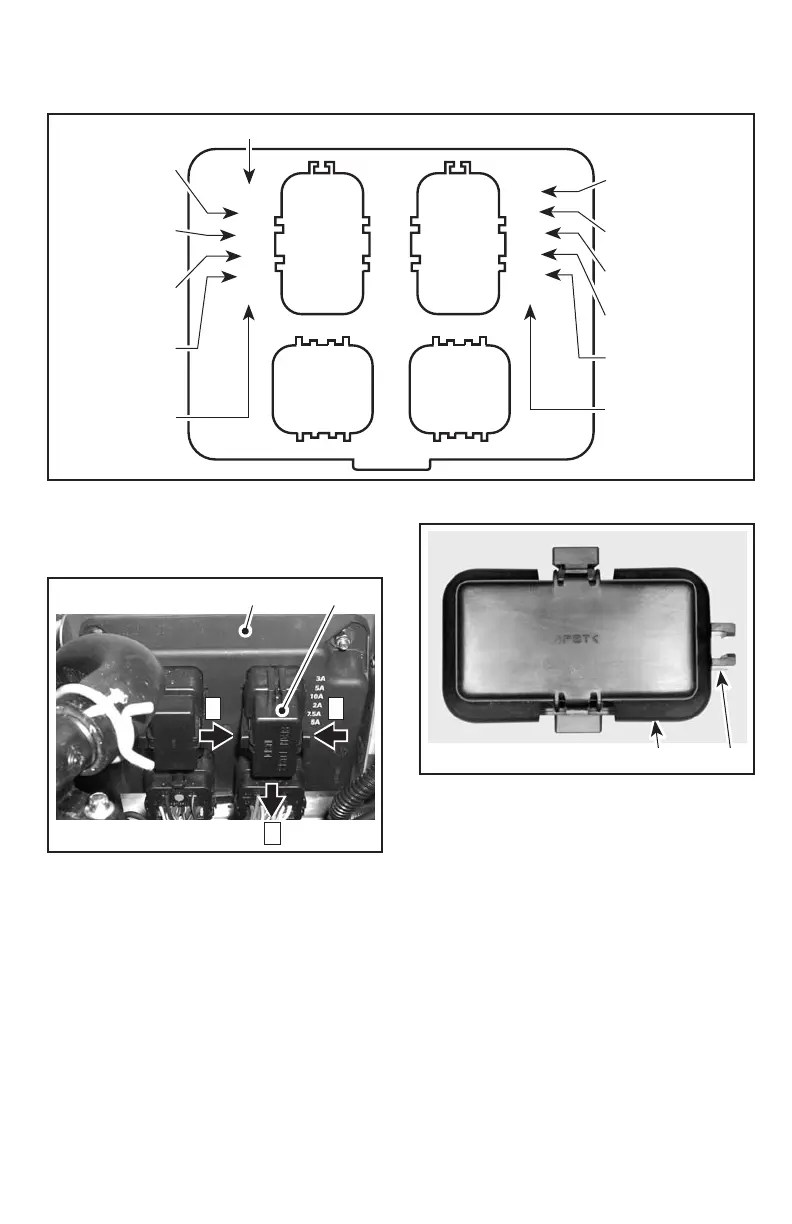

Fuses rating are identified, look beside the fuse holders.
10A
2A
10A
1A
10A
10A
3A
5A
10A
2A
7.5A
5A
F18H07N
Depth gauge
(if so equipped)
or spare fuse
T.O.P.S.
Cylinder 3
ignition coil
and injection
Information
center
EMS
start/stop circuit
VTS
(if so equipped)
MPEM
Electric starter,
fuel pump
Bilge pump
(optional)
Beeper
diagnostic,
connector
Cylinder 2
ignition coil
and injection
Cylinder 1
ignition coil
and injection
Spare fuse
FUSE IDENTIFICATION
Squeeze locking tabs together, hold
and pull fuse cover from the MPEM.
F18H0CY
1
2
1
1 2
TYPICAL
1. MPEM
2. Fuse cover
Use the tabs of the fuse cover to re-
move and reinstall fuses. Slide cover
tabs along fuse top.
F06H1TY
12
1. Fuse cover
2. Fuse tabs
One cover contains spare fuses.
To gain access to spare fuses, remove
the cover identified "SPARE FUSES IN-
SIDE". Look inside cover and pull the
rubber protector with a finger. Take
care not to drop the fuses.
_____________________
95
