Seaga JDL-2 COMBO - Bill Validator Removal and Jam Clearing; Removing Bill Validator

59JDL V1.0 8 2022

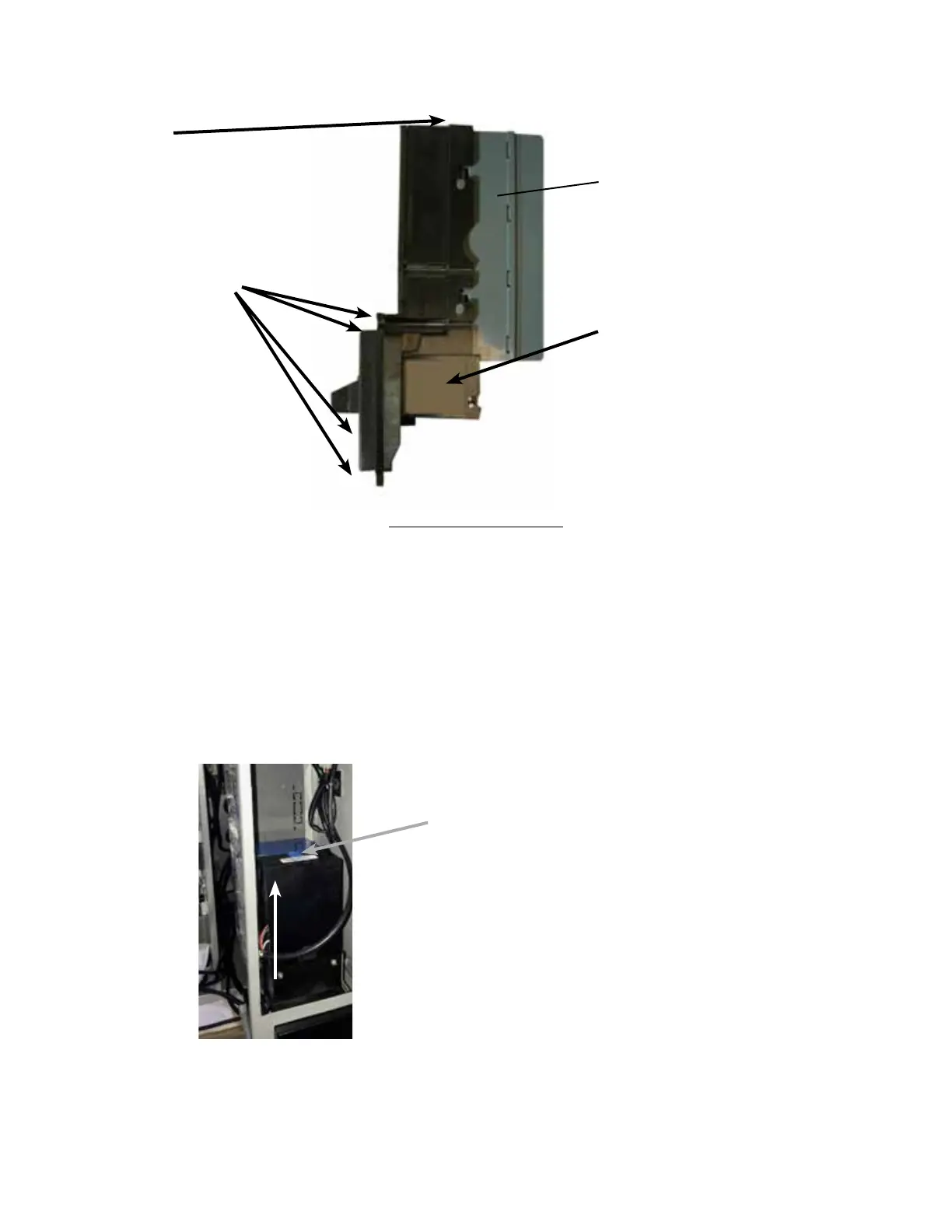

Figure 23 – Bill Validator
Tab
(4) Mounng Nuts
Bill Collecon Box
Lower Housing
Removing Bill Validator
From me to me it may be necessary to remove the Bill Validator for cleaning and clearing jams.
1. To remove the Bill Validator
a. Disconnect the power to the machine – this is very important to avoid damaging not only
the bill validator but your VMC. Failure to disconnect power before performing this operaon
will void your warranty.
b. Unlock and open the Front Door
c. Push Bill Validator Tab forward and slide Bill Storage Box up to remove
Tab
d. Disconnect Bill Validator from Wire Harness
e. Remove the Four (4) Mounng Nuts.
