IMAG 4700r INSTRUCTIONS
Seametrics • 253.872.0284 Page 17 seametrics.com

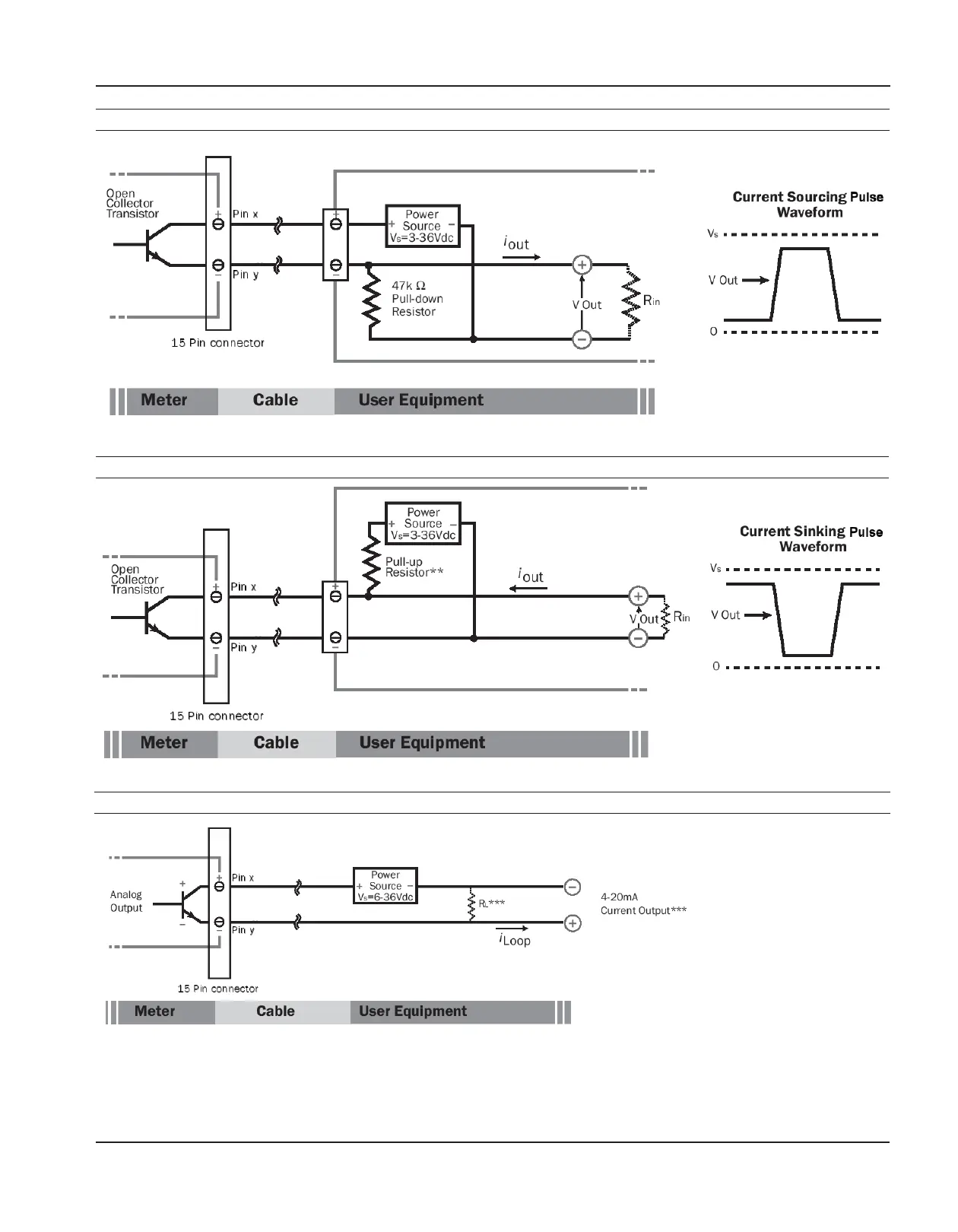

Pulse Output Application - Sourcing Mode (Recommended for Rin < 30kΩ)
Pulse Output Application - Sinking Mode (Recommended for Rin > 30kΩ)
Analog (4-20mA Current Loop) Output Application
**Minimumresistorvalueis(100xVs)ohms.Higherresistancesmaybeuseddependingonfrequencyandcablelength.
Longercablesandhighfrequenciesrequirelowerresistance.
***ResistorRLconverts4-20mAcurrenttovoltageforvoltageinputonlydevices.
CONFIGURATION
