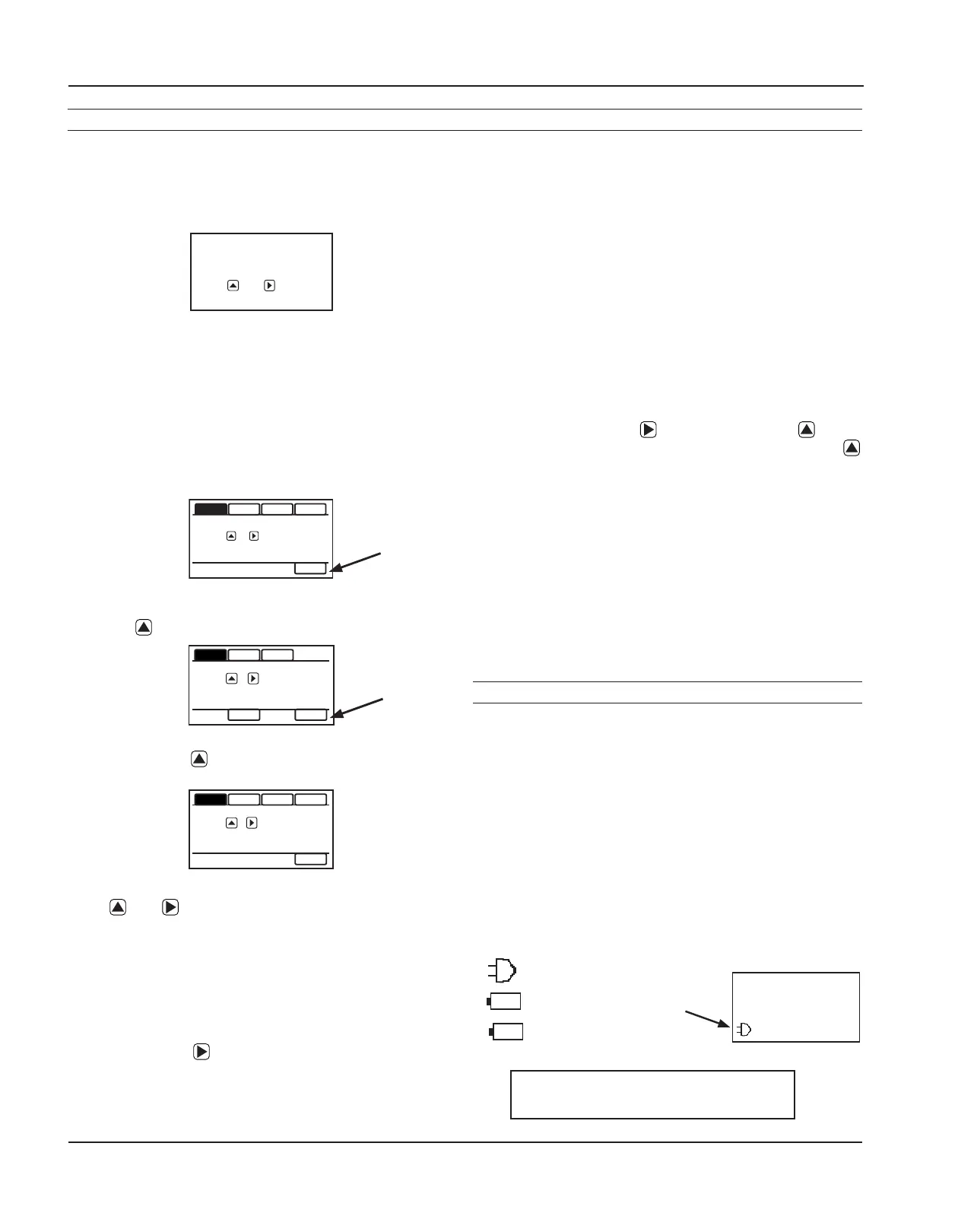

IMAG 4700r INSTRUCTIONS
Seametrics • 253.872.0284 Page 22 seametrics.com
OPERATION
The iMAG4700 has a passcode system for restricting access
to the menus. The iMAG comes from the factory with the
passcode set to 000000. When a user attempts to enter the
menu system (see details on page 20), the passcode entry
screen will be displayed.
The default passcode is 000000. If a dierent passcode has
previously been set, then the user must enter that passcode
at this time. After entering the passcode, or leaving it at
000000 if using the default passcode, the user does the tap
and hold sequence to move into the menu system.
To change the passcode, you must use the THIRD MENU
screen. Access the THIRD MENU screen as follows:
• Enter the main menu system, as described above.
• On the main menu, tab over to the EXIT tab and tap
the ve times. A SUBMENU screen will display.
• On the SUBMENU screen tab over to the EXIT tab
and tap the ve times. The THIRD MENU screen
will display.
• To set the passcode, hold and tap and then use the
and to enter the new code.
• Hold and tap again to return to the THIRD MENU
screen
• Tab to EXIT, and then hold and tap to return to the
SUBMENU.
To change the number of decimal places in the total
• To set the decimal point, hold and tap on SETD and
then use the to move the decimal point.
• Hold and tap again to return to the THIRD MENU
screen.
• Tab to EXIT, and then hold and tap to return to the
SUBMENU.
000000
ENTER PASSCODE
PRESS AND TO CHANGE
1.2345678
100
TOTAL
CU FT
X1000
RATE
GPM
T UNIT R UNIT SET PDAMP
SET 4
SET 4
SET 20
SET 20
SET F
SET F
EXIT
TOTAL = GALLONS
PRESS + TO SET TOTAL
UNITS FOR DISPLAY
T UNIT R UNIT SET PDAMP
SET 4
SET 4
SET 20
SET 20
SET F
SET F
EXIT
TOTAL:
PRESS TO CHANGE
GALLONS
0.0000000
SET ID
TOTAL
ACRE
FEET
RATE
GPM
OK
FORWARD TOTALFORWARD TOTAL
INFO COMM MBID FL DIR
SAMP
HPOLL FOUT EXIT
PRESS + TO VIEW INFO
ABOUT METER
SETCD
PRESS + TO SET
SAMP
FOUT EXIT
000000
PASSCODE
SETD
PDAMP
TEST
To Change a Passcode and Decimal Places
PDAMP
PDAMP is used to view or change the number of samples
for rolling average of pulse output.
TEST
TEST allows the user to initiate a fully functional, articial
ow rate for the purpose of testing other connected
equipment. When TEST is applied, all features of the meter
will function at the stated ow rate (in gallons per second).
For TEST to function, the meter must be lled (not EMPTY
PIPE).
To enter a value into the TEST feature, navigate to the TEST
tab and enter a ow rate value in the VAL screen (in gallons
per second only,) then to the VAL box and to the
ON screen. This will initiate the TEST feature. The next
would bring you to the OFF screen, but you can ‘hold and
tap’ the arrows to return you to the sub menu while the
feature operates.
After use, the TEST feature must be turned OFF. If the
TEST feature is not turned OFF, the stated static ow rate
(in gallons per second) will be shown any time the meter is
full or in a owing condition. Flow values recorded by the
meter while the TEST feature is operating are permanently
recorded in the displayed TOTAL. It may be useful to note
that these values are only written to permanent memory
every 15 minutes and cycling all power within this 15 minute
time frame will return the meter to its previous total.
Power Indicators
A power indicator is displayed in the lower left of the main
display window.
Any meter that was congured to be powered from an
xternal power source will display a power plug icon when
running on external power. If the connection to external
power is lost, the meter will switch to the backup battery
and the power icon will switch to a battery symbol.
OK on the battery indicator means battery voltage is above
6.4 volts.
LO on the battery indicator means the battery is low and
should be replaced soon.
Beingpoweredbyexternal
DCorAC
Beingpoweredbybattery-
voltageissucient
Beingpoweredbybattery-
voltageislow
1.2345678
100
TOTAL
CU FT
X1000
RATE
GPM
T UNIT R UNIT S ET PDAMP
SET 4
SET 4
SET 20
SET 20
SET F
SET F
EXIT
TOTAL = GALLONS
PRESS + TO SET TOTAL
UNITS FOR DISPLAY
T UNIT R UNIT S ET PDAMP
SET 4
SET 4
SET 20
SET 20
SET F
SET F
EXIT
TOTAL:
PRESS TO CHANGE
GALLONS
0.0000000
SET ID
TOTAL
ACRE
FEET
RATE
GPM
OK
FORWARD TOTA
LFORWARD TOTAL
P
If display reads, ‘BATT END’
replace battery immediately.
OK LO
P
OK LO
