IMAG 4700r INSTRUCTIONS
Seametrics • 253.872.0284 Page 21 seametrics.com
OPERATION

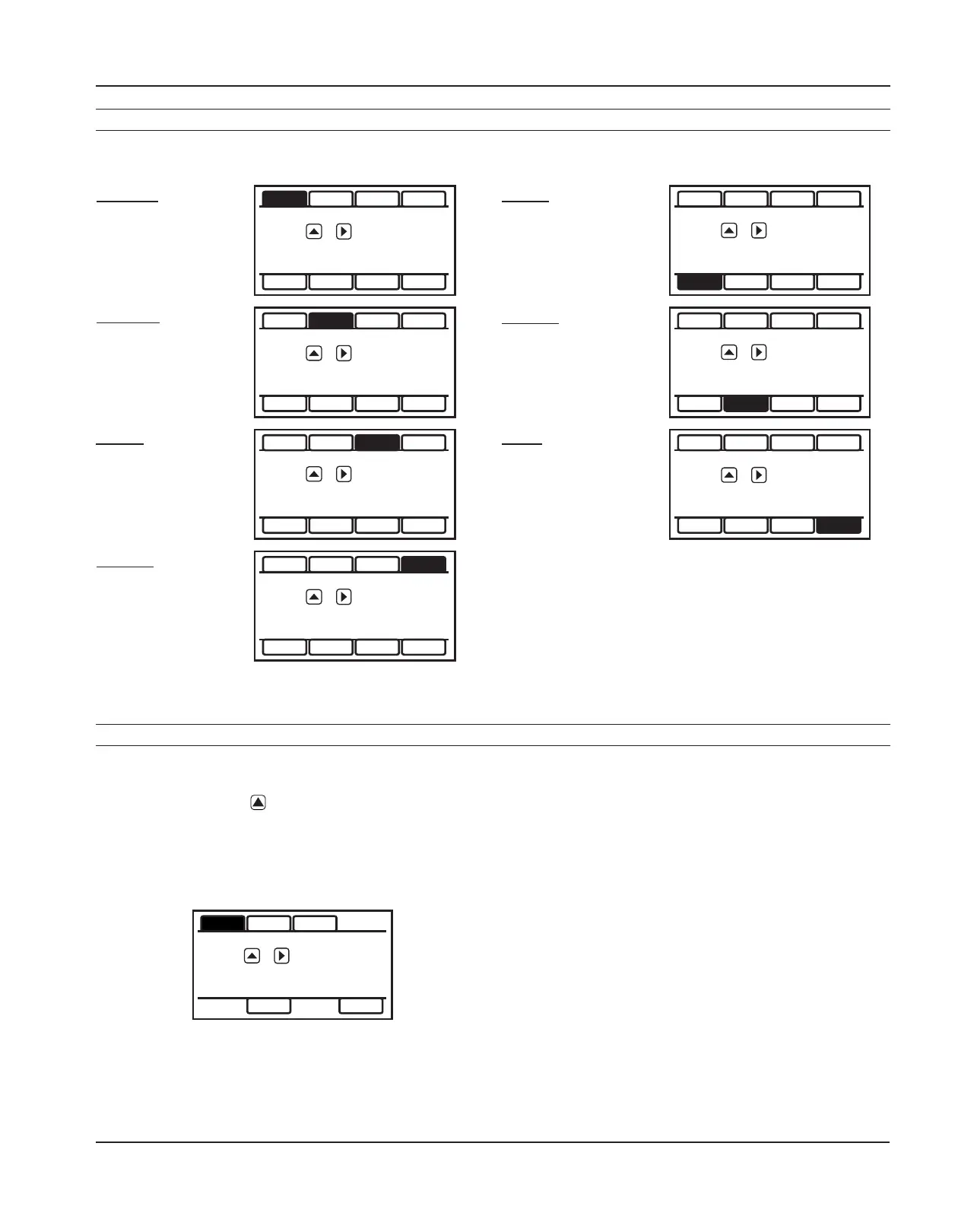

Standard Menu Options
The EXIT tab in the MAIN MENU has a second function. If,
instead of using the hold and tap sequence to return to the
HOME screen, you tap ve times, you will be redirected
to a SUBMENU screen from which you can access several
more options. Navigation in this SUBMENU is the same
as for the MAIN MENU. Whenever you wish, go to the
EXIT tab in the SUBMENU and perform the hold and tap
sequence to return to the MAIN MENU.
Sub-Menu
INFO COMM MBID FL DIR
SAMP
HPOLL FOUT EXIT
PRESS + TO VIEW INFO
ABOUT METER
INFO: Meter model number, serial number, and rmware
version.
COMM: Modbus
®
baud rate and parity.
MBID: Modbus
®
address
EXIT: Return to MAIN MENU.
T UNIT
View or change TOTAL
volume units
R UNIT
View or change ow
RATE units
SET P
View or change pulse
output scaling
DAMP
View or change # of
samples for rolling
average.
SET 4
View or change ow
rate corresponding to
4mA.
SET 20
View or change ow
rate corresponding to
20mA.
EXIT
Return to HOME
SCREEN or enter
SUBMENU
T UNIT R UNIT SET P DAMP
SET 4 SET 20 SET F EXIT
TOTAL = GALLONS
PRESS + TO SET TOTAL
UNITS FOR DISPLAY
T UNIT R UNIT SET P DAMP
SET 4 SET 20 SET F EXIT
FLOW RATE = GALLONS/MIN
PRESS + TO SET RATE
UNITS FOR DISPLAY
T UNIT R UNIT SET P DAMP
SET 4 SET 20 SET F EXIT
00001.0 GALLONS
PRESS + TO SET
GALLONS TOTALIZED PER
PULSE SENT OUT PULSE1
T UNIT R UNIT SET P DAMP
SET 4 SET 20 SET F EXIT
DAMPING = 1
PRESS + TO SET
DAMPING VALUE
T UNIT R UNIT SET P DAMP
SET 4 SET 20 SET F EXIT
00040.0 GALLONS/MIN
PRESS + TO SET FLOW
RATE AT WHICH 4mA
(MIN) OUTPUT IS DESIRED
T UNIT R UNIT SET P DAMP
SET 4 SET 20 SET F EXIT
00200.0 GALLONS/MIN
PRESS + TO SET FLOW
RATE AT WHICH 20mA
(MAX) OUTPUT IS DESIRED
T UNIT R UNIT SET P DAMP
SET 4 SET 20 SET F EXIT
PRESS + EXIT MENU
AND RETURN TO FLOW
DISPLAY
Note: Available options will depend on specic meter conguration. Not all options are available on all meters.
Options not ordered with your meter will not appear on the meter menu.
Special SUBMENU for Further Options
