IMAG 4700r INSTRUCTIONS
Seametrics • 253.872.0284 Page 20 seametrics.com

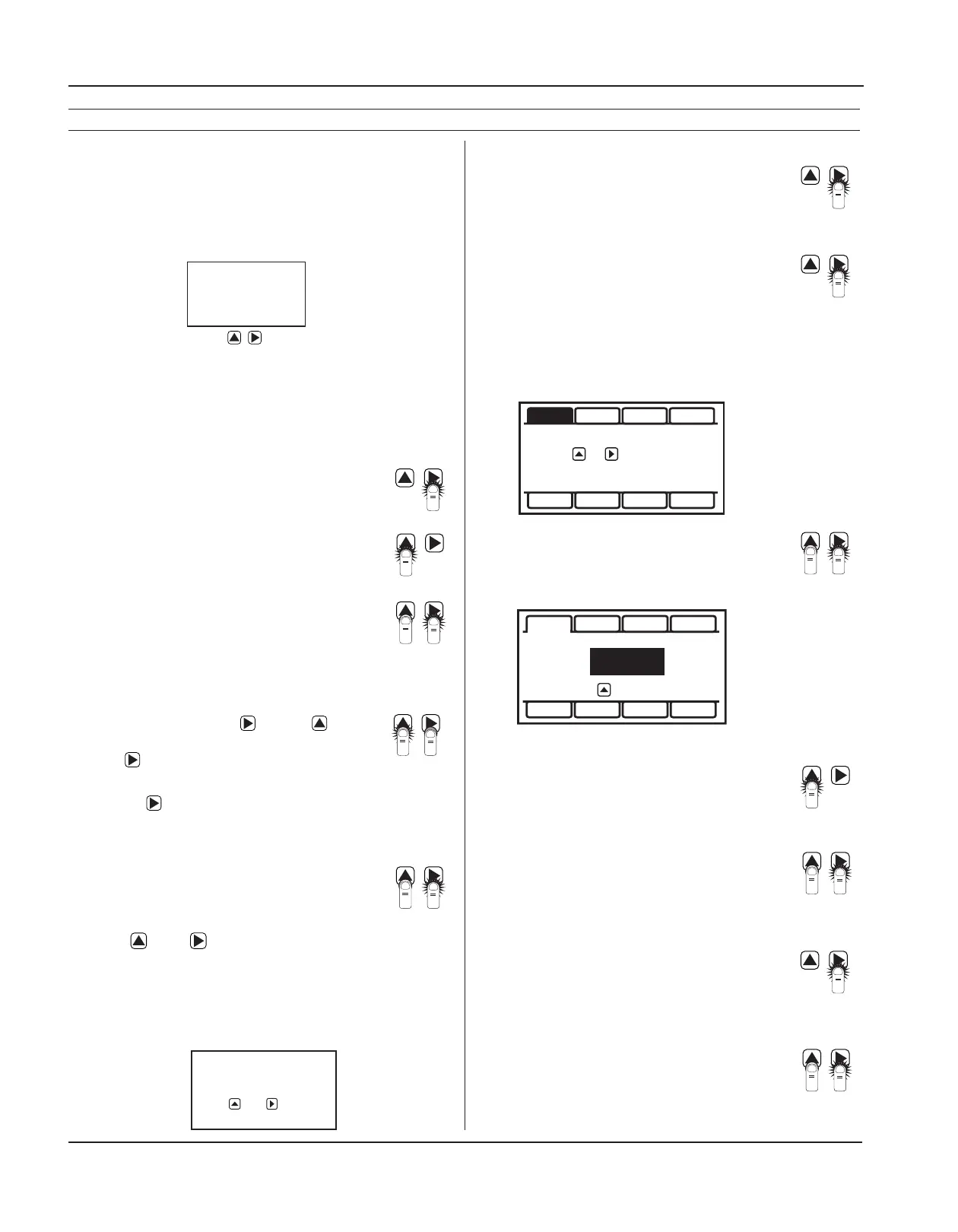

OPERATION
Changing Flow Meter Settings
Home Screen and General Navigation
The HOME Screen displays ow volume, direction of the
ow total and ow RATE along with status conditions such
as Empty Pipe. Two buttons below the LCD display are used
to access menu screens for viewing and changing meter
setup parameters.
These two buttons are light sensors which can detect
when a nger is covering them and activate upon
release. Only three button touch actions are needed to
control navigation through the menus, settings changes
and back to the home screen.
1.2345678
100
TOTAL
CU FT
X1000
RATE
GPM
T UNIT R UNIT SET PDAMP
SET 4SET 20 SET F EXIT
TOTAL = GALLONS
PRESS + TO SET TOTAL
UNITS FOR DISPLAY
T UNIT R UNIT SET PDAMP
SET 4SET 20 SET F EXIT
TOTAL:
PRESS TO CHANGE
GALLONS
FORWARD TOTAL
Making Selections
Once in the Menu System, move from tab to
tab by tapping the right button. (See the next
page for details on the various available tabs.)
Select the parameter. In the screen for
the highlighted tab you will see the current
parameter value for that tab. Tapping the right
button, move to the tab for the parameter you
want to change.
In this example, the rst line indicates that the
current unit for the TOTAL is GALLONS. The
next two lines tell you what to do next.
If you would like to change the TOTAL units,
just perform the hold and tap sequence to
bring up a screen to change the setting.
Select a new setting. Select the new setting
by scrolling through a list of selections as in
the screen illustration below by tapping the
left button to nd a dierent TOTAL unit.
Accept changes. To accept any changes
you have made, perform the hold and tap
sequence.
When nished making changes. When you
are nished making changes, move to the EXIT
tab using the right button.
To return to the HOME screen, perform the
hold and tap sequence.
TAP
TAP
1.2345678
100
TOTAL
CU FT
X1000
RATE
GPM
T UNIT R UNIT SET PDAMP
SET 4SET 20 SET F EXIT
TOTAL = GALLONS
PRESS + TO SET TOTAL
UNITS FOR DISPLAY
T UNIT R UNIT SET PDAMP
SET 4SET 20 SET F EXIT
TOTAL:
PRESS TO CHANGE
GALLONS
FORWARD TOTAL
+
HOLD TAP
1.2345678
100
TOTAL
CU FT
X1000
RATE
GPM
T UNIT R UNIT SET PDAMP
SET 4SET 20 SET F EXIT
TOTAL = GALLONS
PRESS + TO SET TOTAL
UNITS FOR DISPLAY
T UNIT R UNIT SET PDAMP
SET 4SET 20 SET F EXIT
TOTAL:
PRESS TO CHANGE
GALLONS
FORWARD TOTAL
TAP
+
HOLD TAP
TAP
+
HOLD TAP
HORIZONTAL SCROLLING:
Tap right button to scroll horizontally through
menu tabs or move horizontally within a tab
dialog when applicable.
SELECT:
Tap left button to change a highlighted item
within a tab dialog.
ENTER/EXIT:
Hold left button while tapping right button
once to enter or exit a tab dialog or to navigate
between the HOME and other menu screens.
Changing Total Direction/Resetting Batch
Totalizers
On the Main screen, hold and tap 5 times
to scroll through the total direction options.
Release to select a total direction.
Once BATCH FORWARD or BATCH REVERSE is
selcted, tap four times to reset batch totalizer.
Entering Menu System
To enter the Menu System perform the hold
and tap sequence. The Passcode entry screen
will display. The default passcode is 000000. If
a dierent passcode has previously been set,
use the and to enter that passcode.
In either case, hold and tap again to move
into the menu system. (Ifyouenterthewrong
passcode,hold and tap again to return to the
previousscreen.Seepage21forinformationon
howtochangeapasscode.)
TAP
TAP
+
HOLD TAP
000000
ENTER PASSCODE
PRESS AND TO CHANGE
+
HOLD TAP
+
HOLD
TAP
