IMAG 4700r INSTRUCTIONS
Seametrics • 253.872.0284 Page 3 seametrics.com
GENERAL INFORMATION
The iMAG-Series meters are the most economical anged
electromagnetic owmeters on the market. With electrodes
designed to discourage fouling, it is available in 2” to 12”
pipe in municipal or industrial water, waste and reclaimed
water, pump stations, and packaged plant applications.
Minimal straight pipe requirements allow iMAG-Series
meters to be used in piping congurations where there is
little space between the meter and an elbow.
iMAG-Series meters are CE certied, certied to NSF/ANSI
standard 61 and are rated IP68 for applications where the
meter may be operated under water to a depth of at least
10 feet (3 meters) continuously.
The display for the iMAG 4700r is mounted remotely for
ease of access. Both rate and total indication are standard.
Rate and total units and pulse scaling can be set via the
front panel touch key pad by the user. Bidirectional ow
reading is standard with totals available in forward, reverse,
net ow, batch forward ow, and batch reverse ow. Built-
in data logging is available as an option for secure ow
logging.
A power/output cable allows outputs for use with a
variety of Seametrics and other displays and controls for
remote reading and telemetry applications. Pulse output is
standard on all units. Additionally, 4-20mA passive current
loop, and Modbus
®
protocol outputs are optional. The
iMAG 4700r can be supplied with an optional internal AC
power supply.

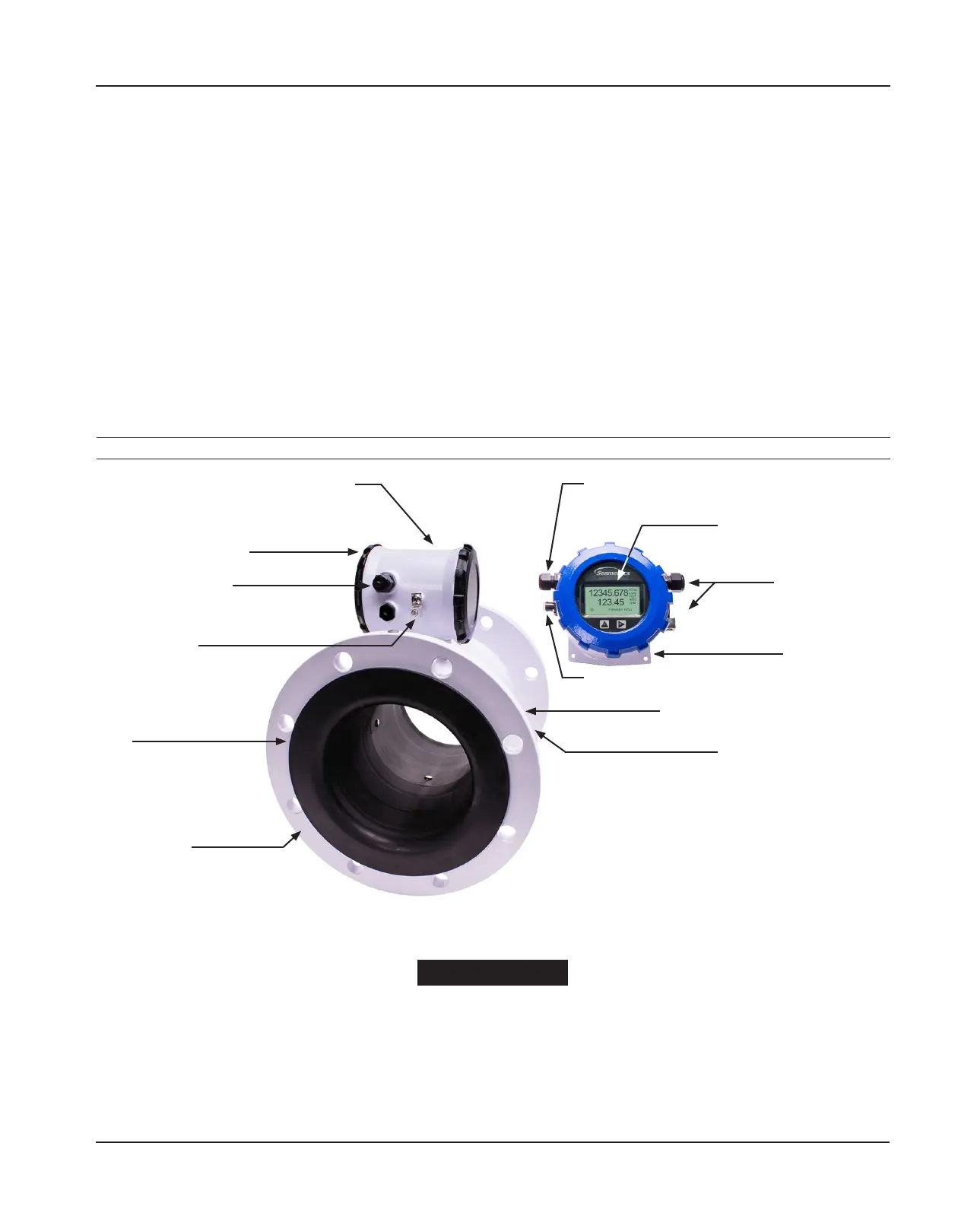

Features
Flanges, 150 lb.
ANSI pattern
Equalization lug
Powder-coated diecast aluminum housing
Rate and total indicator with
light sensor button controls
316SS electrodes standard
(inside)
Power and Output
cable port access
User access lid (on back)
Data logger port
Remote cable access
Remote cable access
Mounting ange
Welded steel epoxy-coated ow tube
No moving parts
Liner
