4、Connect the Rail to the Header Bracket
Mount the rail to the header bracket by inserting the Shouldered shaft (H1) through
the holes in the header bracket and rail. Secure with the cotter pin(H5).
HARDWARE
H1 Shouldered shaft, long
Φ8×80 (1)
H5 Cotter pin Φ2×25(1)

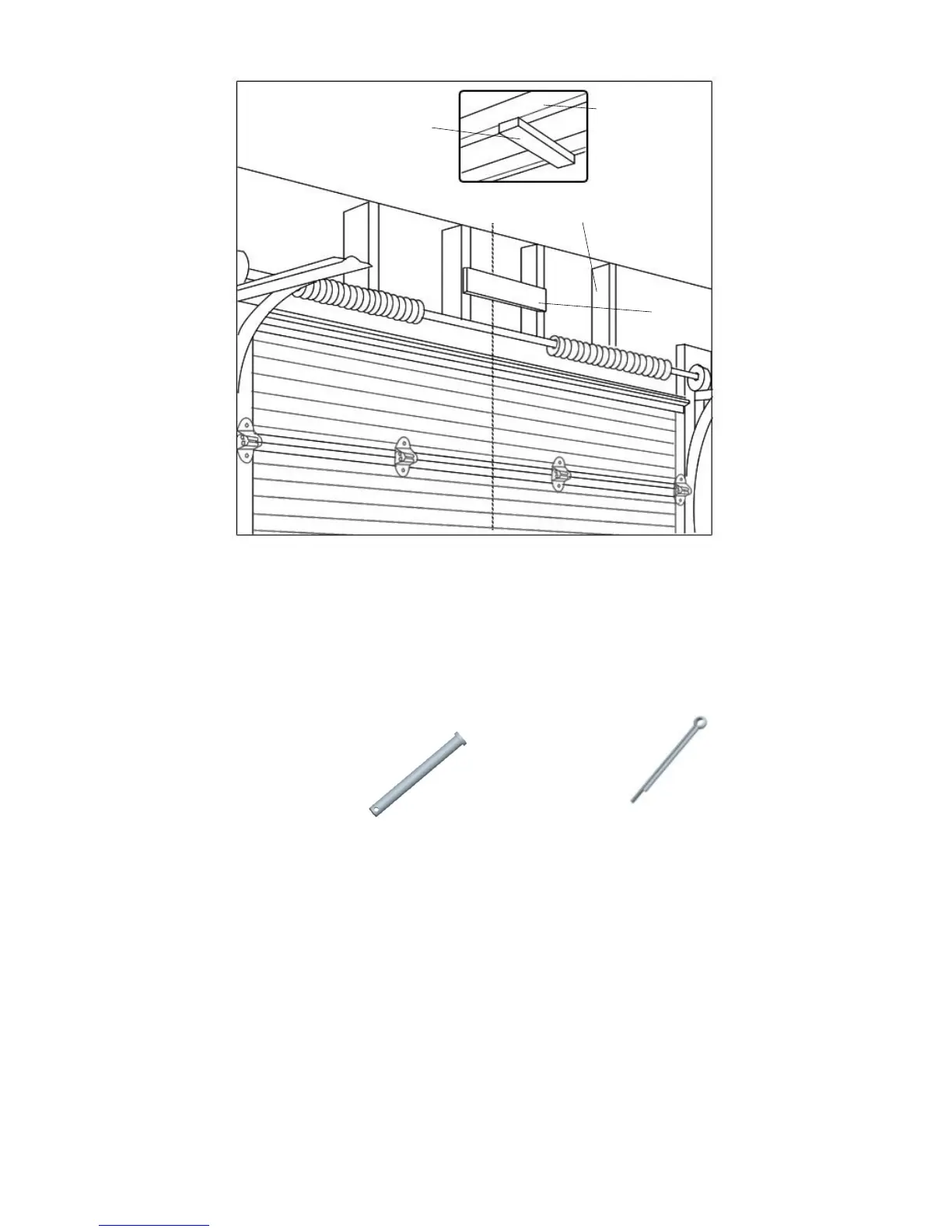

Header wall
Optional ceiling
mount for
Header bracket
Unfinished
ceiling
Structural support
2x4
