Seaside 9357 - Permanent Wiring

25
NOTE:
Do not use extension cord.
Do not use any power supplies other than standard household power source.

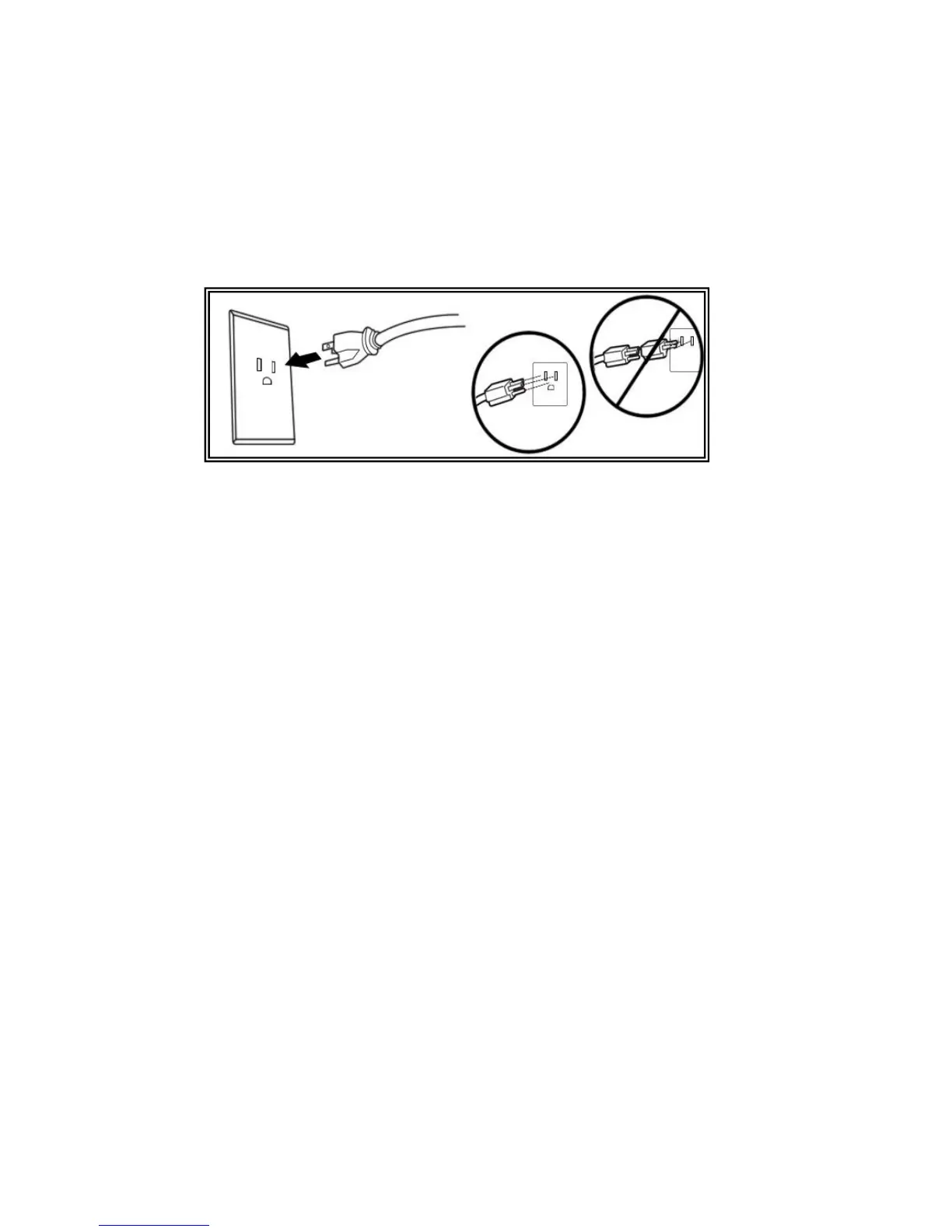

Do no use a 3 to 2 plug adapter.
The operator must be connected to a grounded outlet near the operator head, if the
grounded outlet is not available, please contact a qualified electrician.
Do not modify the plug.
a. Plug the operator into a grounded outlet.
b. When the operator is connected to the power, the light should turn on; And the
screen on setting panel is showing from 9 to 1, then flashing “｜｜”. If the light is not
on, please check the power and its light bulb.
c. DO NOT operate the garage door operator at this point.
PERMANENT WIRING
If your local code requires your operator to be connected via permanent wiring
instead of a cord and a plug, your operator must be converted following procedures
below.
Please call a qualified electrician to make a permanent wiring connection under your
local building and electrical codes.
To make a permanent connection through the 7/8" hole in the top of the motor unit
(according to local code):
(1) Make sure power is NOT connected to the operator, and disconnect power to
circuit.
(2) Open the garage door operator cover and set aside.
(3) Remove the attached green ground terminal.
(4) Cut black and white wires and strip away 1/2" (1 cm) of insulation, 6" (15 cm)
before spade terminals.
(5) Remove the power cord from opener.
(6) Knock out the hole plugs above 7/8" hole.
