Seaside 9357 - Attach the Door Arm

16

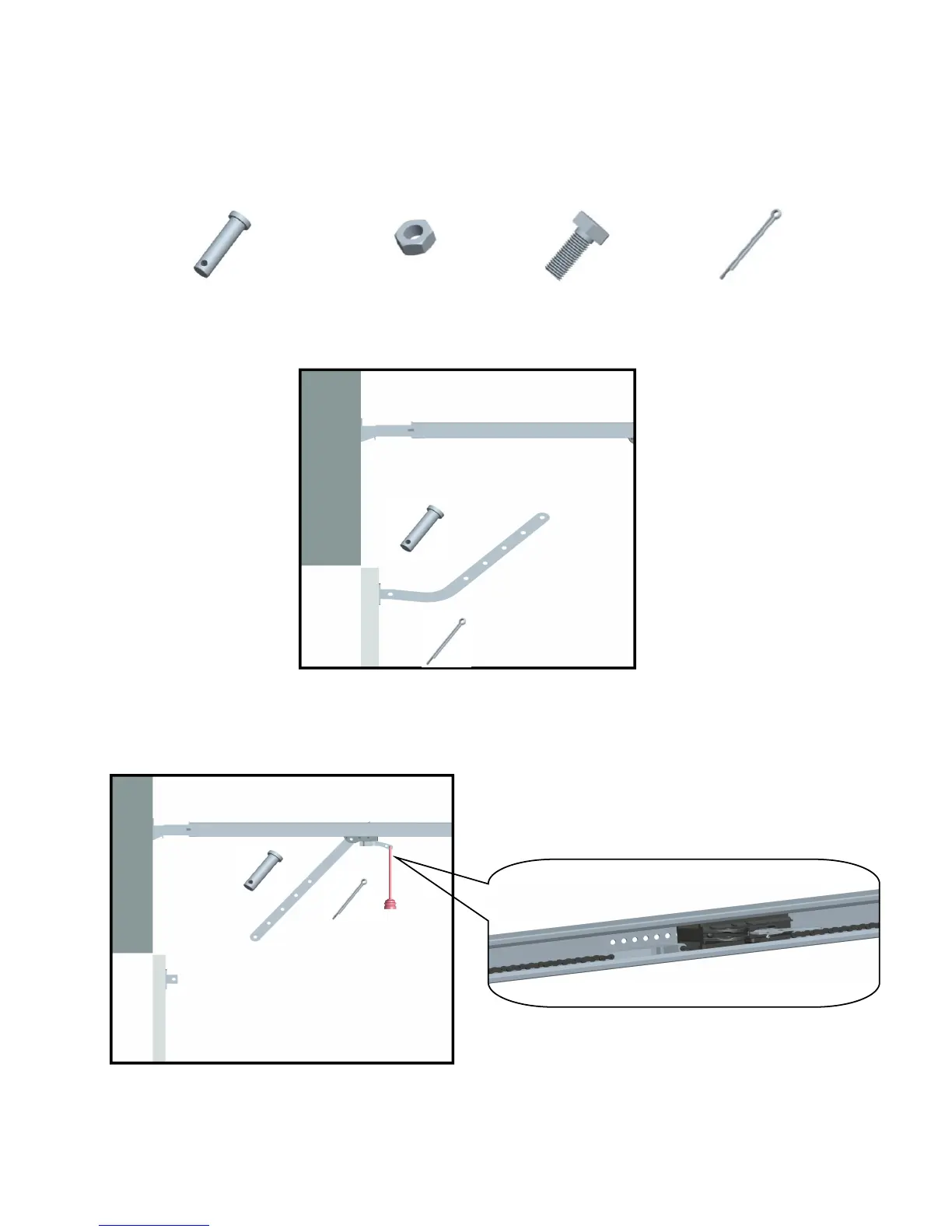

7、Attach the door arm
H2 Shouldered shaft
Φ8×30 (2)
H5
Cotter pin
Φ2×25(2)
H3
Hex Nut
M8(2)
H4 Hex Bolt
M8×20(2)
7.2 Pull the emergency release to move the trolley to the locking holes. Connect the
straight door arm to the trolley by using the shouldered shaft (H2).Attach the
shouldered shaft with the cotter pin.
7.1 Close the door. Connect the curved door arm to the door bracket by using the
shouldered shaft (H2).Attach the shouldered shaft with the cotter pin(H5).
H2
H5
H2
H5
