11. Connect the wall control to the garage door operator
Run the wires from the wall control along the wall and ceiling to the operator. Use staples
or suitable material to secure wiring neatly to avoid entanglement.
12、Attach the warning labels
12.1 Attach the warning label firmly near the wall control where people can easily
read.
12.2 Attach the hanging warning label to the emergency release cord.
Note: To connect or disconnect the wires from the terminal, press in the tab with a
screwdriver tip.

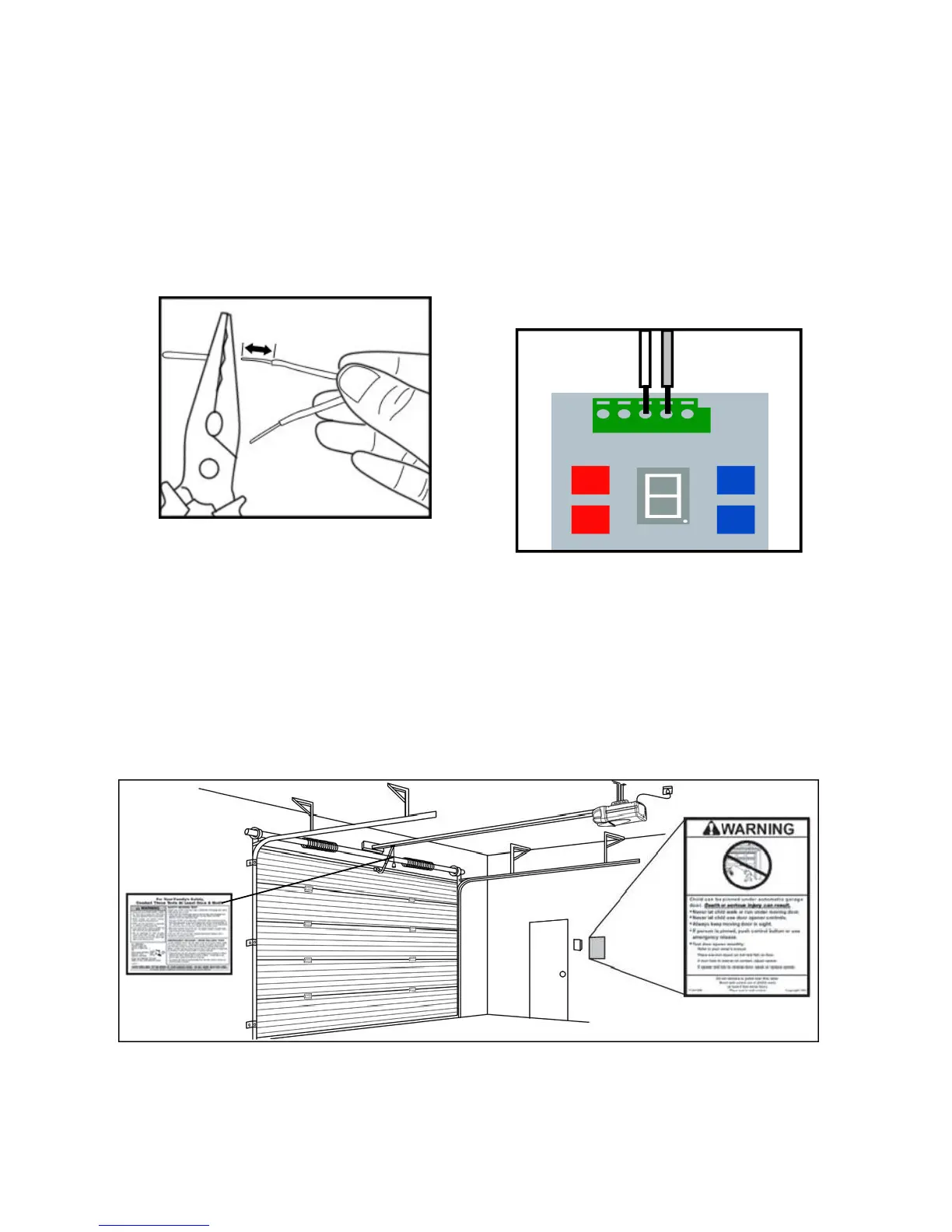

11.2 Connect the white wire to the #3
terminal and the red\white wire to
the #4 terminal on garage door
operator.
11.1 Strip back 10 mm of insulation
from the other end of the wire.
To Next Page
