1. Check steering fluid level in all steering pumps.
Each Optimus 360 hydraulic pump has a steering fluid reservoir.
Ensure the fluid level is between the MIN and MAX marks on
the reservoir as shown in the figure below. Use only SeaStar
Electronic Power Steering Fluid in the Optimus 360 System.
FAILURE TO ADHERE TO THESE WARNINGS MAY RESULT IN LOSS OF
BOAT CONTROL, LEADING TO POSSIBLE EJECTION FROM VESSEL;
CAUSING PROPERTY DAMAGE, PERSONAL INJURY AND/OR DEATH.
8.3 System Inspection
2. Verify immediate steering response when turning steering wheel(s).
Turn the steering wheel slowly to port and to starboard and make
sure the engines follow the commands. Watch that the hoses
harnesses, and cables move freely without any snags or hang-ups.
3. Inspect all steering hoses, fittings and mechanical and
electrical harness for wear, kinks, or leaks.
Check all steering hoses and fittings between the pump, service
valves and cylinders for any signs of leakage, kinking, wear or
chafing. Check all electrical harnesses and mechanical cabling
for abrasion, wear, rubbing or chafing. Check that all connections
are tight and free of corrosion.
WARNING

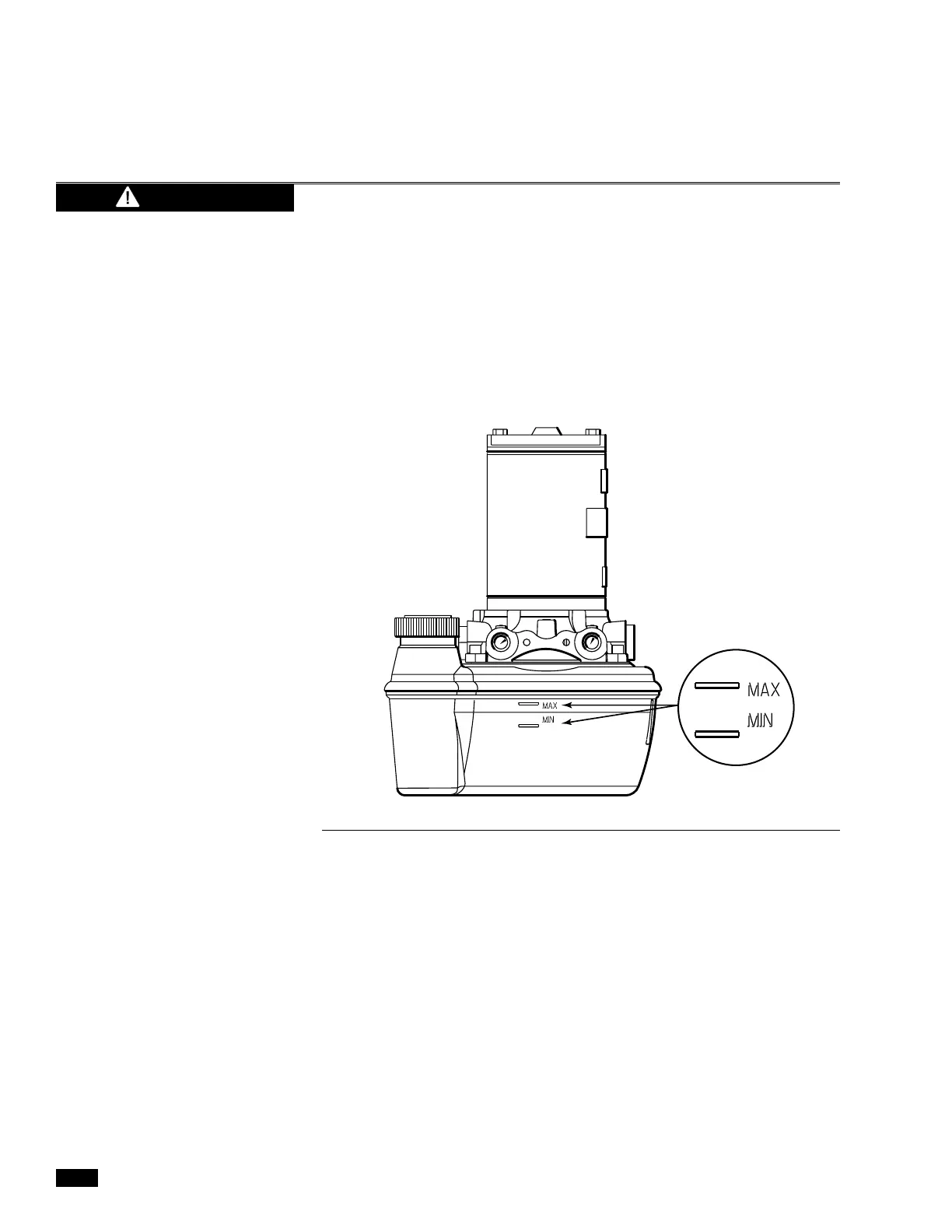

Figure 8-4. Location of fluid level marks.
