follows: IM_SEC3_02.01_en.docx
29/70

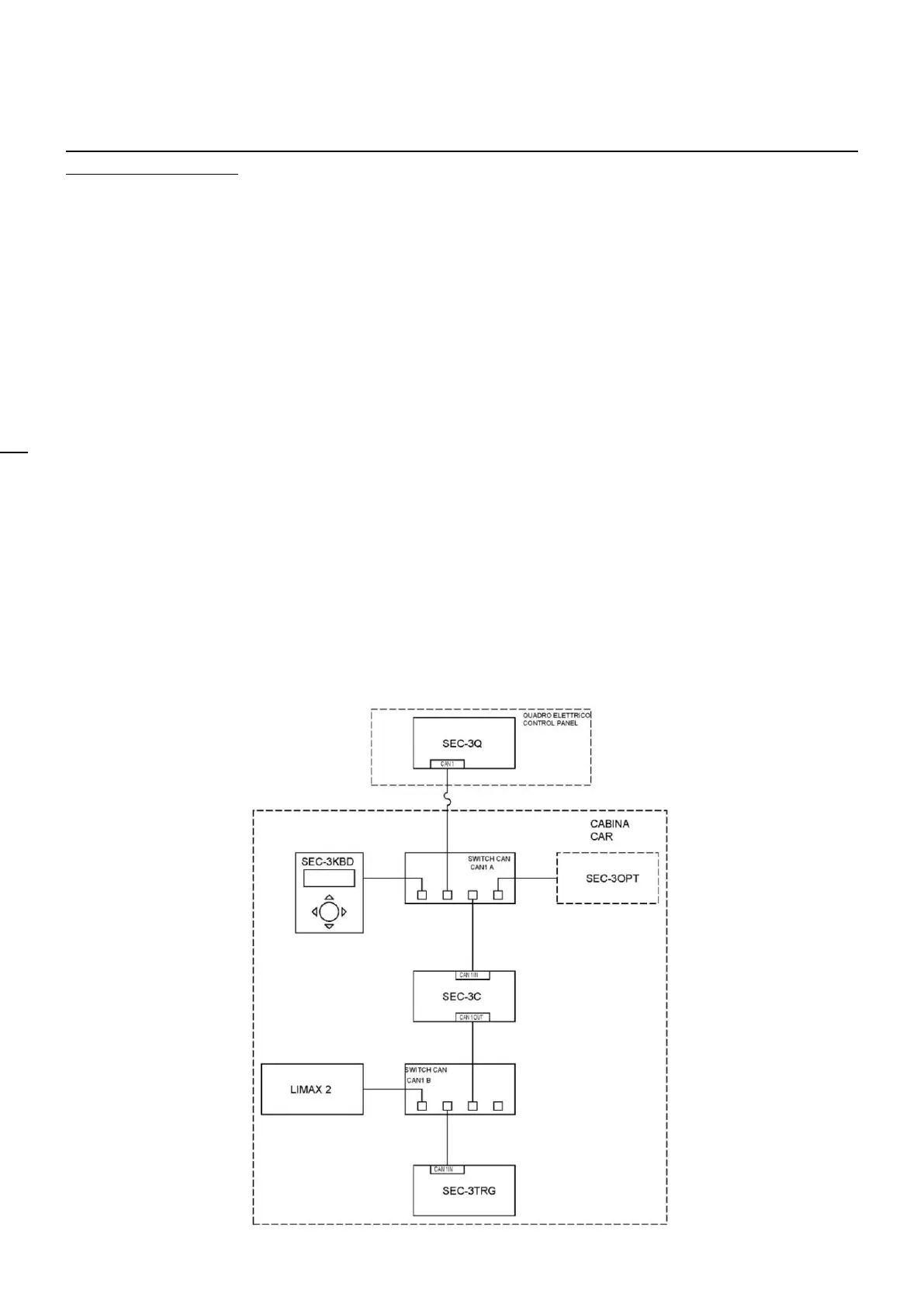

ELGO LIMAX – absolute positioning system
Following procedures have to be performed only after lift installation is completed, with all safeties
installed and checked.
1. Connect programming keypad to SEC-3Q board by the RJ45 cable
2. Check parameter 01.02 – Number of stops [ nn]
3. Check parameter 02.01 – Lift Type =
• [Trac.Dig] if traction lift
• [Hydr.Dig] if hydraulic lift
4. Check parameter 07.01 - Encoder Type = [Limax2]
5. Insert value in parameter 07.11 - Range Synch.:
a) Rated speed = 0.63m/s 07.11 = 750mm
b) Rated speed = 1m/s 07.11 = 1300mm
c) Rated speed = 1.6m/s 07.11 = 2200mm
6. HYDRAULIC LIFT ONLY
Verify default values:
09.01 = 100
09.02 = 1000
09.03 = 1000
09.04 = 1000
09.05 = 1000
Exit and save
7. SET floors levels
7.1. Go on car roof, connect programming tool to CAN1:A by a suitable CAN cable
