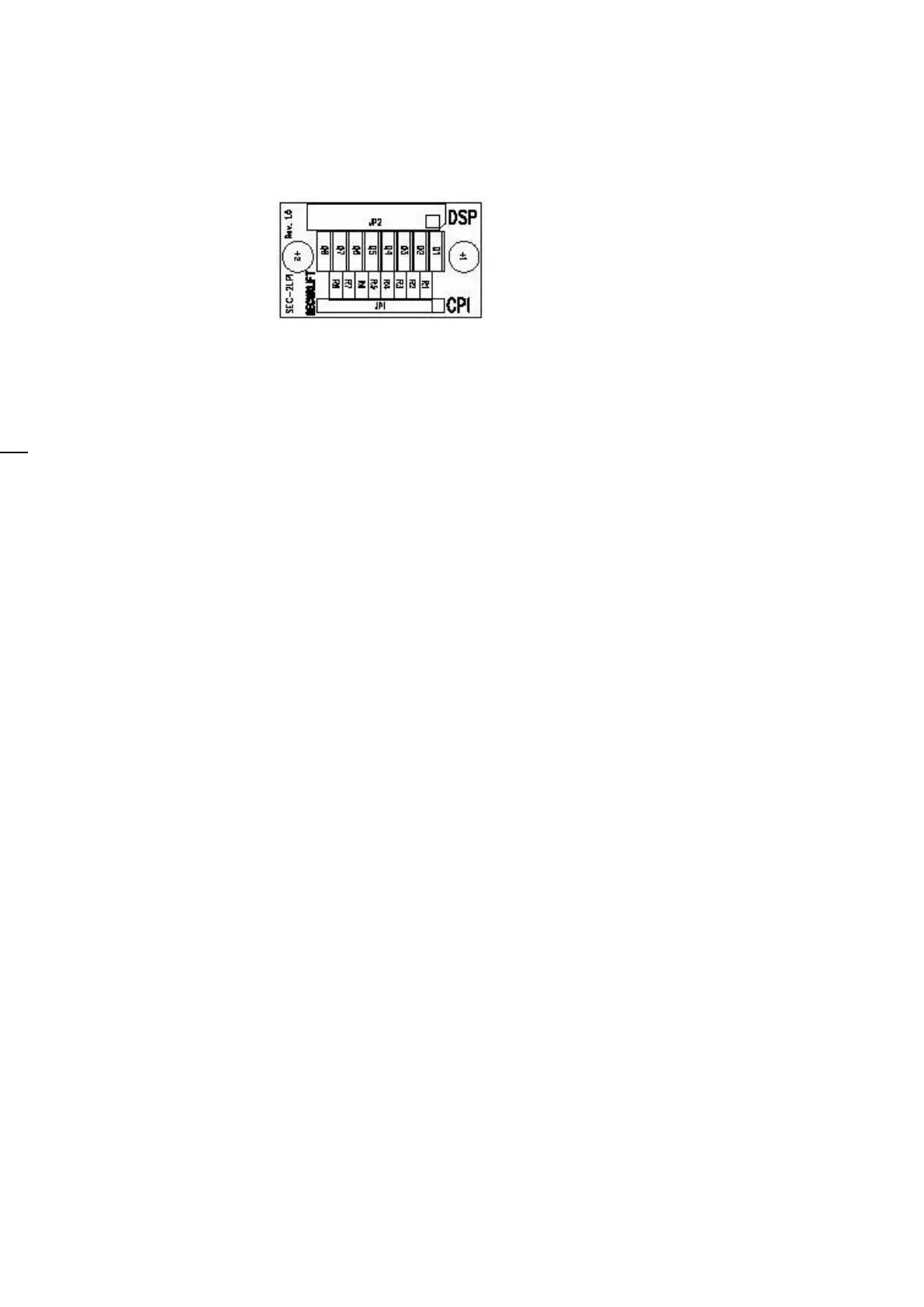

SEC-2LPI – Landing display board
SEC-2LPI is the car position indicator driver at landings, when serial landing connection is used. It fits on
the SEC-2L board by connector CPI.
DSP (car position output)
1 a segment a bin 1 dec 1
st
floor
2 b segment b bin 2 dec 2
nd
floor
3 c segment c bin 4 dec 3
rd
floor
4 d segment d bin 8 dec 4
th
floor
5 e segment e bin 16 dec 5
th
floor
6 f segment f bin 32 dec 6
th
floor
7 g segment g dec 7
th
floor
8 G segment G dec 8
th
floor
9 +24 VDC
10 GND
