Universal Radiographic System
Service Manual
SM-0524R4
17
4.2.2 CENTRAL CARRIAGE BALANCE FOR MANUAL VERSION
1. With the unit turned ON. Place the Swivel Arm in horizontal position and
open SID at 1.5 meters.
2. Re-install the Safety Locking Rod in the Central Carriage.
3. Remove the Top Cover of the Column.
4. Disengage the Spring located on the Top of the Column (only one end).
5. Loosen the Adjustment Screw of the Vertical Movement Lock.

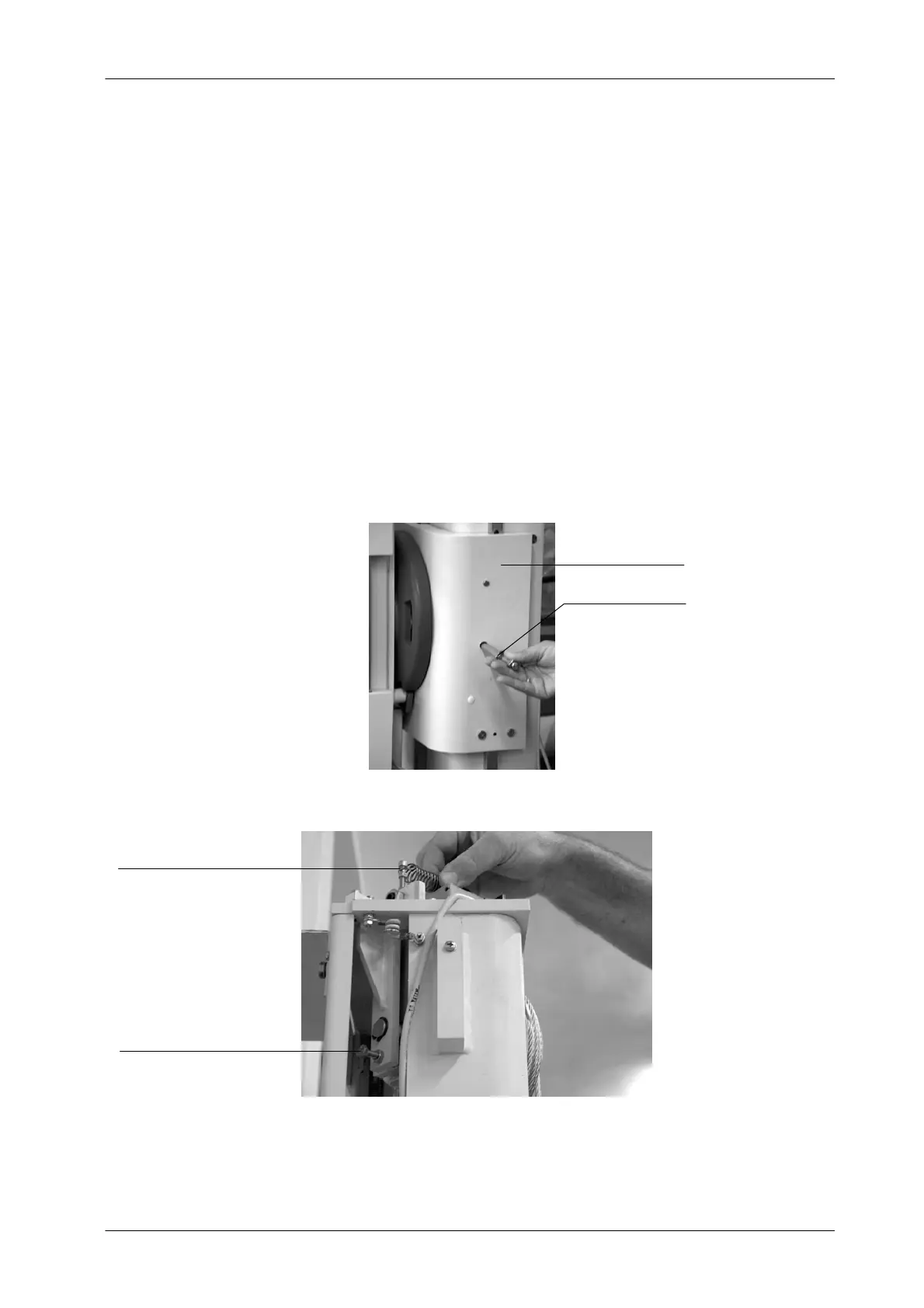

Illustration 4 -2
Adjustment of the Central Carriage Balance
ADJUSTMENT SCREW
DISENGAGE THIS END OF THE SPRING
SAFETY LOCKING ROD
CENTRAL CARRIAGE
To Next Page
