4.3.2 ADJUSTMENT OF SID MOVEMENT OF THE RECEPTOR ASSEMBLY
1. With the unit turned ON. Place the Swivel Arm centered in horizontal
position and open SID at 1.5 meters.

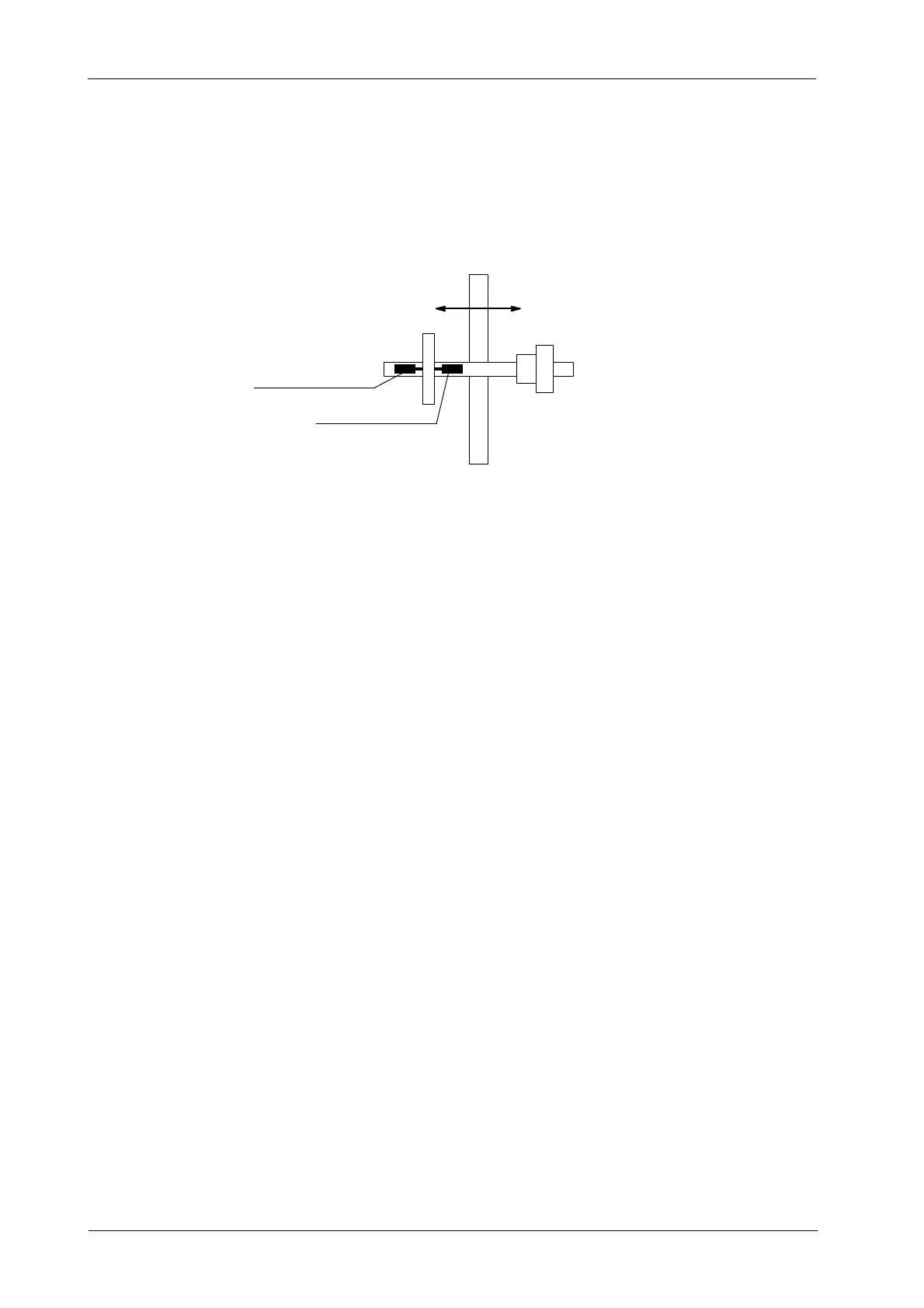

DYNAMOMETER (Pos. 2)
DYNAMOMETER (Pos. 1)
2. Press the respective button to reduce the SID and check with a
Dynamometer located in contact with the inner side of the Receptor
(Table--Top) that the horizontal movement closing the SID is blocked
when a strength of 15 ¦ 3 kg (Peak) is measured on the Dynamometer.
3. Press the respective button to increase the SID and check with a
Dynamometer located in contact with the outer side of the Receptor
(back side) that the horizontal movement opening the SID is blocked
when a strength of 15 ¦ 3 kg (Peak) is measured on the Dynamometer.
4. If it is not correct, adjust the Potentiometer R67 of the Control Unit Board
(A3194--XX). T urn the potentiometer screw CW to increase the strength
and turn it CCW to reduce the strength.
5. Check it again, and repeat the adjustment if needed.
