Universal Radiographic System
Service Manual
SM-0524R4
19
4.2.3 CENTRAL CARRIAGE BALANCE FOR MOTORIZED VERSION
1. With the unit turned ON. Place the Swivel Arm in horizontal position and
open SID at 1.5 meters.
2. Re-install the Safety Locking Rod in the Central Carriage.
3. Remove the Top Cover of the Column.
4. Loosen slightly the three Safety Screws of the Motor. Then, loosen
completely the Stop Screw of the Motor.
5. Move up the Motor and take away the Chain.

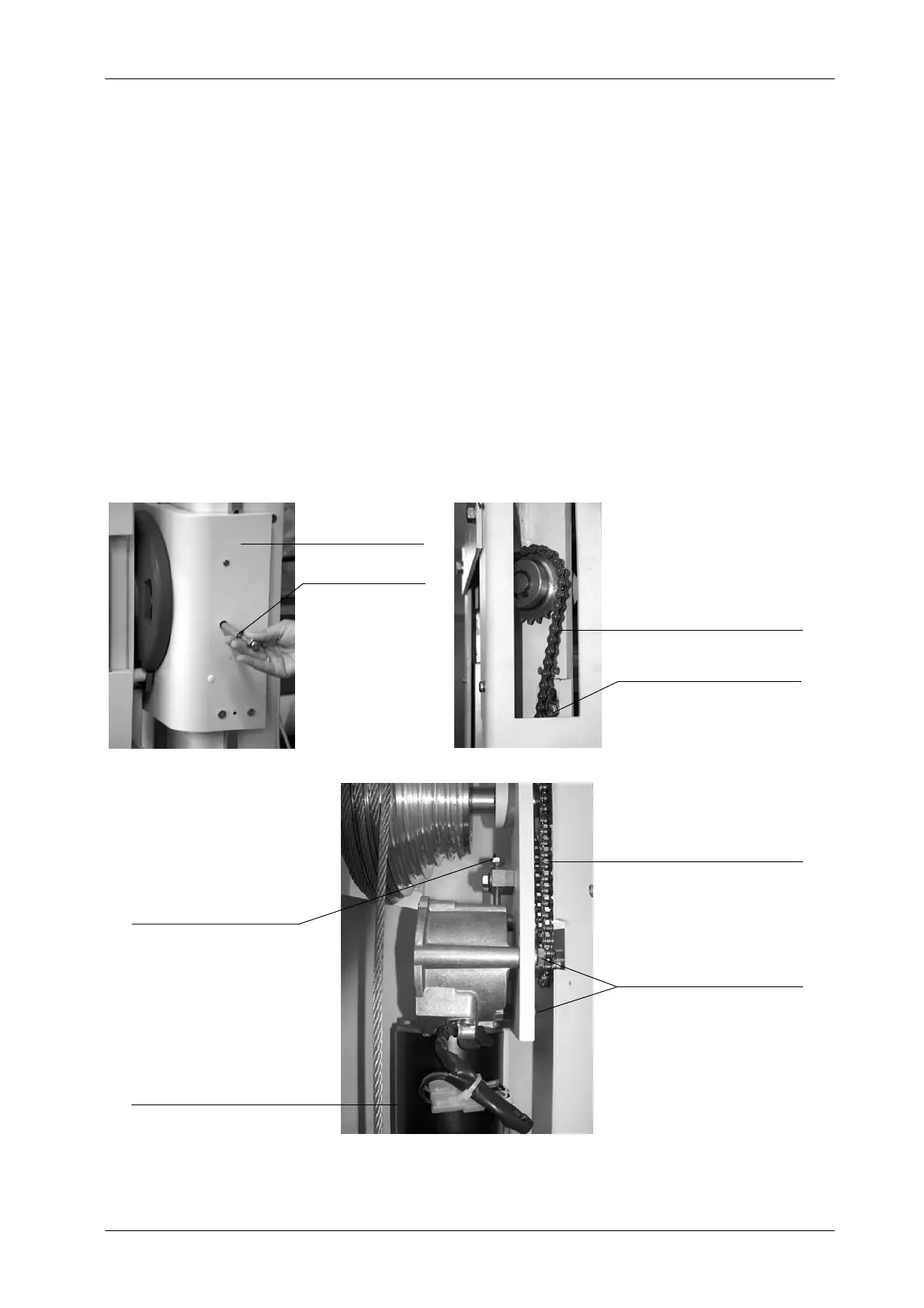

Illustration 4 -4
Motor and Chain
MOTOR DRIVE OF THE CHAIN
STOP SCREW OF THE MOTOR
SAFETY SCREWS OF THE MOTOR (3)
CHAIN
SAFETY LOCKING ROD
SAFETY SCREWS OF THE MOTOR (3)
CHAIN
CENTRAL CARRIAGE
To Next Page
