4.5 SID INDICATOR TEST
Before starting with the SID Indicator Test, the Alignment of X-Ray
Beam Test and the Alignment of Light Field with X-Ray Field Test
should be performed.
1. Place the Swivel Arm in vertical position. The Tube-Collimator Assembly
has to be perfectly aligned with the Bucky Assembly. Check with a level
correct horizontal position of both assemblies (refer to Illustration 4-11).

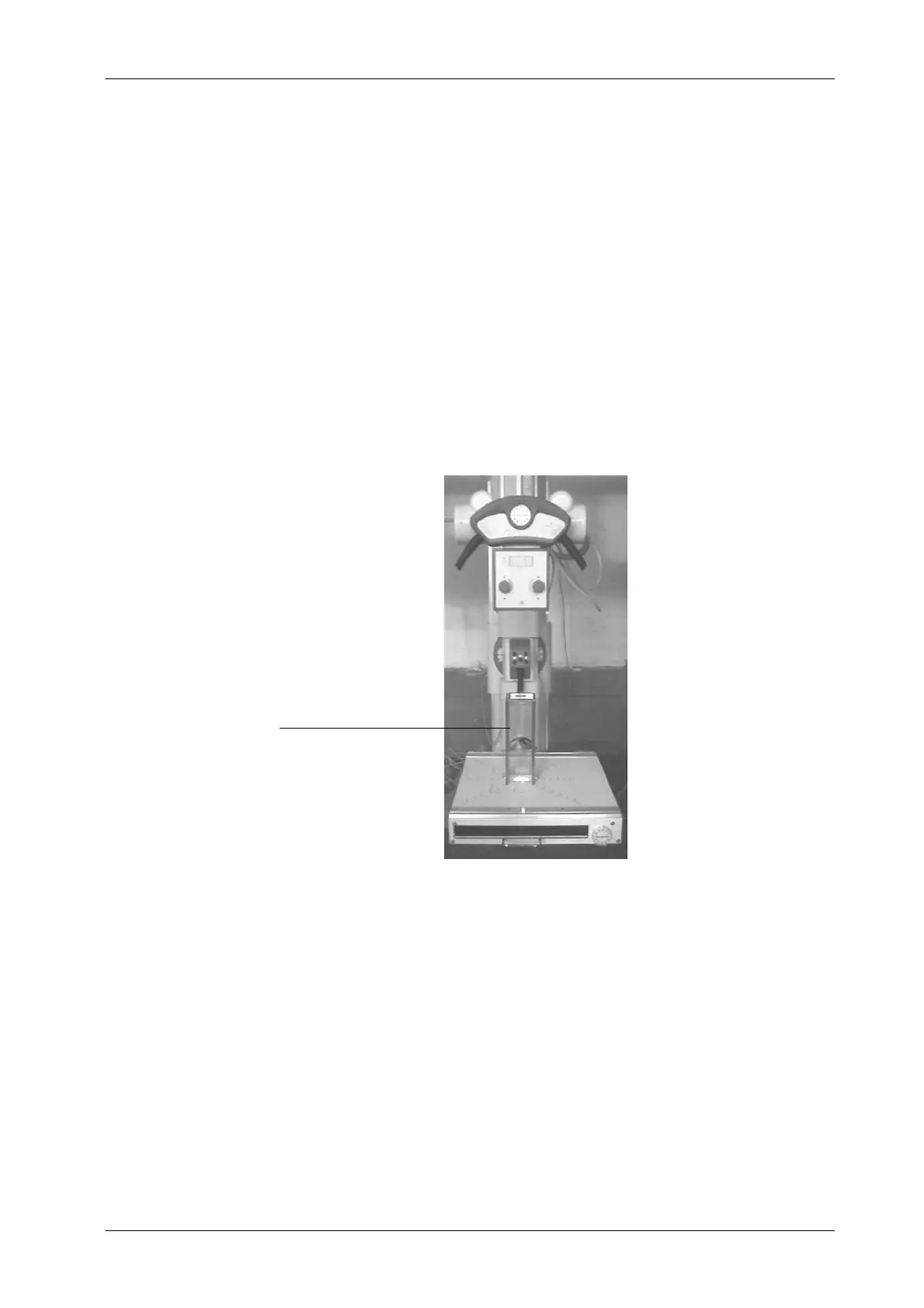

Illustration 4 -11
SID Test Stand Tool
SID TEST STAND TOOL
2. Position SID at 1 meter (use the SID scale of the Column).
3. Place the SID Test Stand Tool on the Bucky Table-Top. (Refer to
Illustration 4-11).
4. T urn on the Collimator Light and by means of Collimator Control Knobs,
center the SID Test Stand Tool with the light axes projected by the
Collimator Lamp.
5. Adjust the Light Field to cover the window (circle) on the top SID Stand
Test Tool . (Refer to Illustration 4- 12).
Note .
