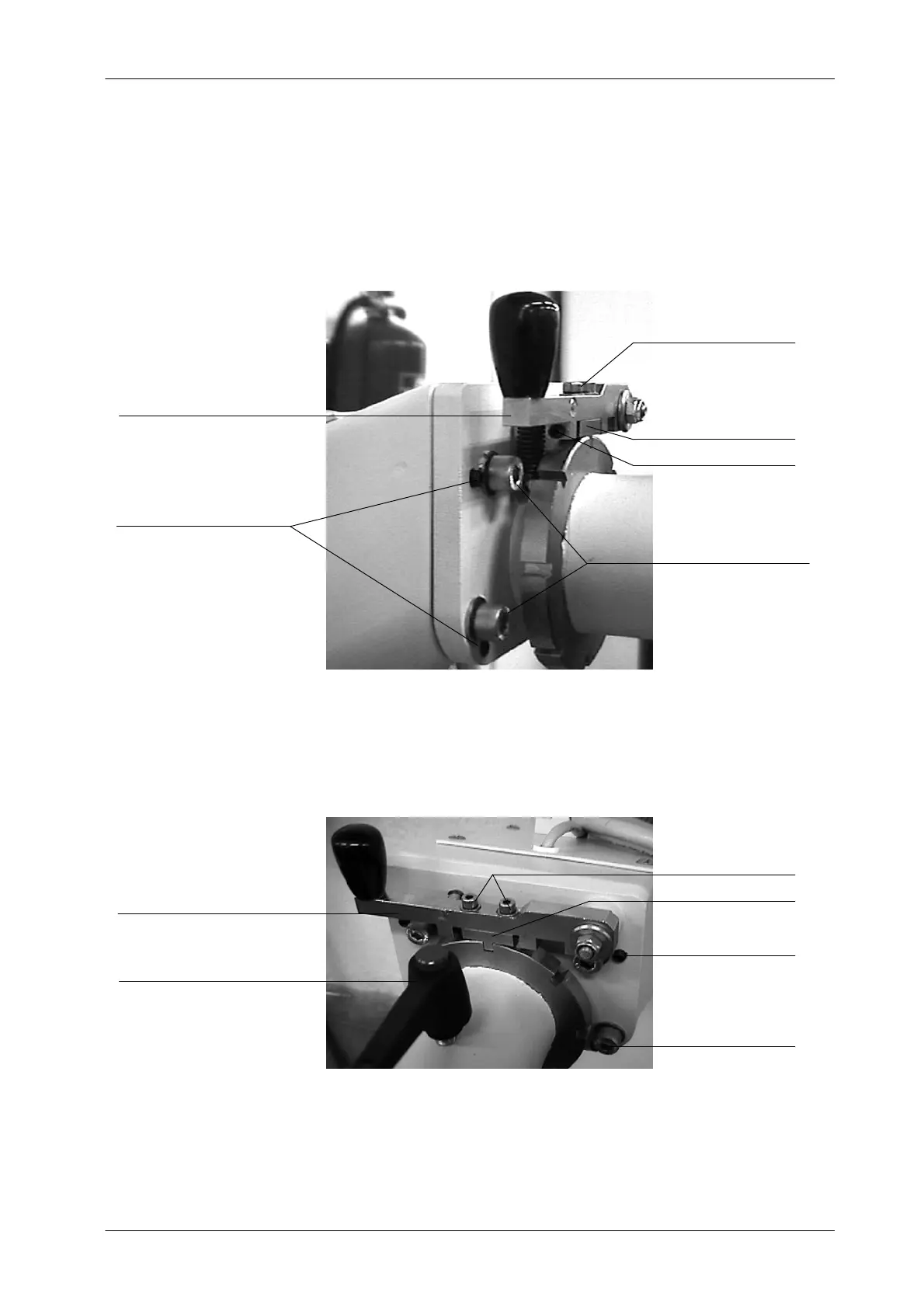

Illustration 4 -10
Levelling Rods of the Tube -Collimator Assembly Support
TUBE-COLLIMATOR ASSEMBLY
LOCK-LEVER FOR ROTATION OF
LEVELLING SCREWS
PIVOTATION LOCKING RATCHET OF THE
TUBE-COLLIMATOR ASSEMBLY
SAFETY SCREWS
PIVOTATION LOCKING RATCHET
SAFETY SCREWS
SETSCREWS
SAFETY SCREWS
LOCK TOOTH
LOCK TOOTH
SAFETY SCREWS (ALLEN M8)
LEVELING SCREWS (ALLEN M6)
