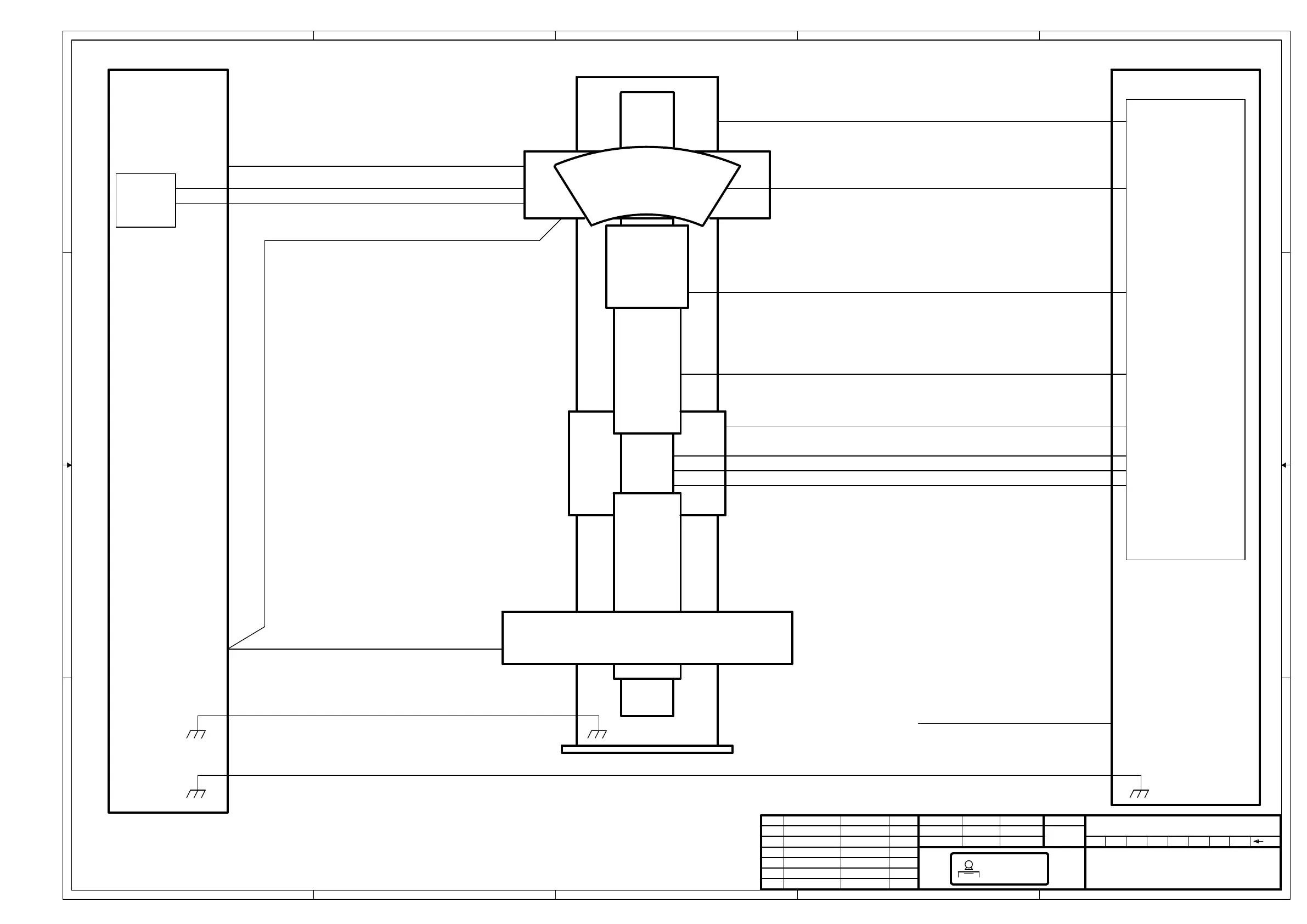

Sedecal X - A6541-03-S Motorized URS Interconnection Schematic

A
A
B
B
C
C
D
D
E
E
4 4
3 3
2 2
1 1
Optima URS Motorized
Board (A3194-03)
X-RAY
TUBE
COLLIMATOR
CONTROL
PANEL
SID
CARRIAGE
ROTATION
ARM
BUCKY
COLUMN
COLUMN
CARRIAGE
MOTORIZED CONTROL UNIT
(A6541-03)
Lock-up Cable (A3392-01)
Push-Button Cable (A3393-01)
ROT LOCK Cable (A3389-01)
Collimator Cable (A3388-01)
Optima URS Motorized Display Cable (A3387-01)
HEIGHT Motor Cable (A3386-01)
SID Cable (A3391-01)
SID Motor Cable (A3386-02)
Bucky Cable
Power Cable (A3153-02)
Anode Cable
Cathode Cable
Stator Cable
TS3
J1
TS1
J2
J2
J2
TS1
TS2
TS1
GND Cable
GND
Stud
GND
Stud
from VAC LINE
TS1
TS2
HV TANK
GENERATOR CABINET
GND Cable
GND
Stud
Fan Cable (A7306-XX)
(optional)
MOTORIZED URS
A6541-03-S
1/2
06/06/03F.GARCIA
06/06/03A.DIAZ
A
CN 07/024 F. García 29/01/08
A
REV DESCRIPTION ISSUED BY DATE
DRAWING
REVISED
NAME DATE SHEET / OF
REV
SEDECAL
