Guardian Field Support Manual – Section 2

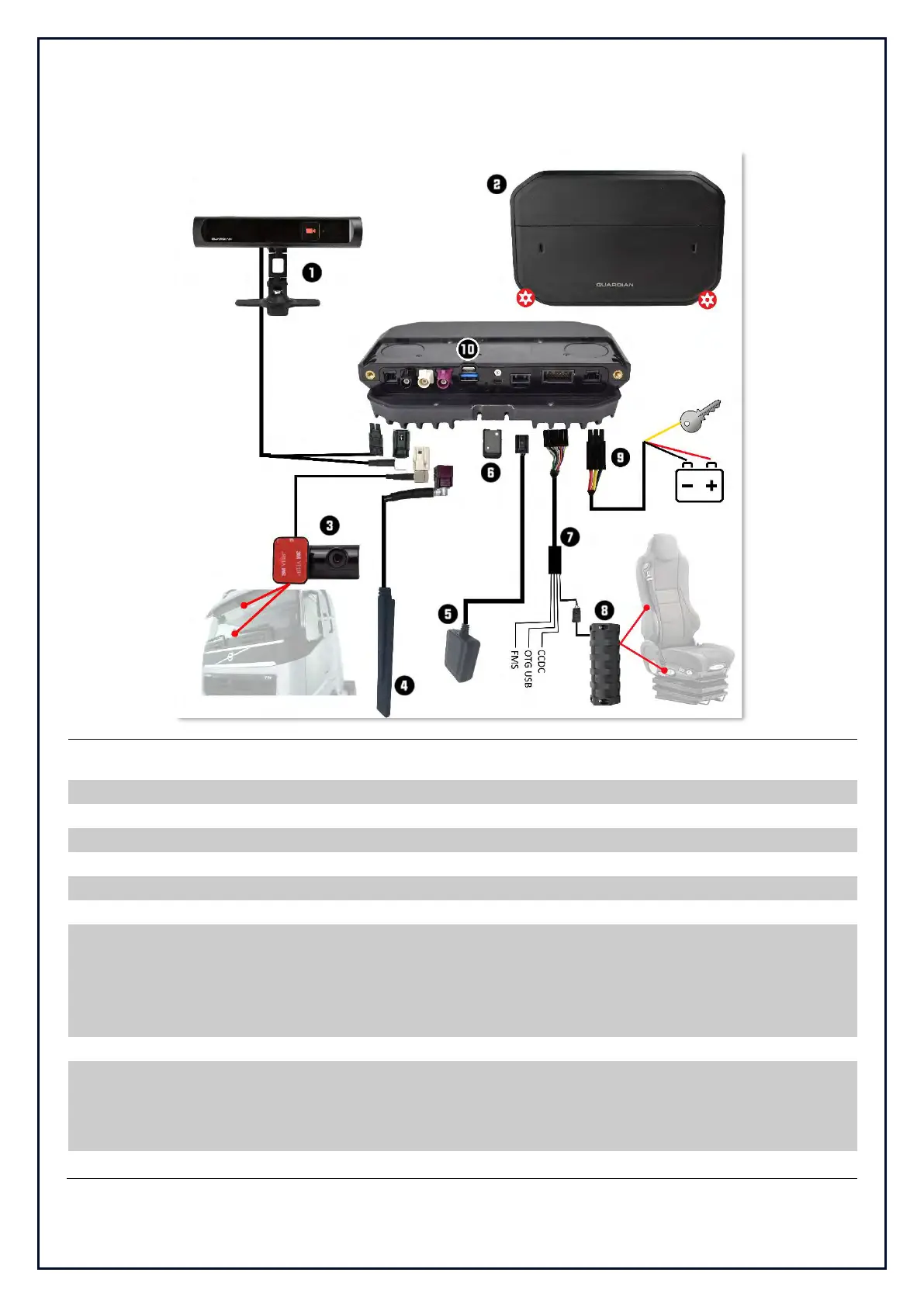

5.2 COMPONENT INTERCONNECTIONS

REFERENCE

DESCRIPTION

In-Cab Sensor (ICS)

Controller Unit

Forward Facing Camera (FFC)

3/4G Antenna

GPS Antenna

Nano SIM card slot

Multi-Function Cable (MFC) – Connects to;

• Vibration Motor

• Cruise Control Disable Cable (CCDC)

• Micro USB OTG –Telematics integration

• Serial Telematics integration

Vibration Motor

Power Cable;

• Yellow Wire = Ignition

• Red Wire = Battery

• Black Wire = Ground/Chassis

USB 3.0 – Laptop connection
