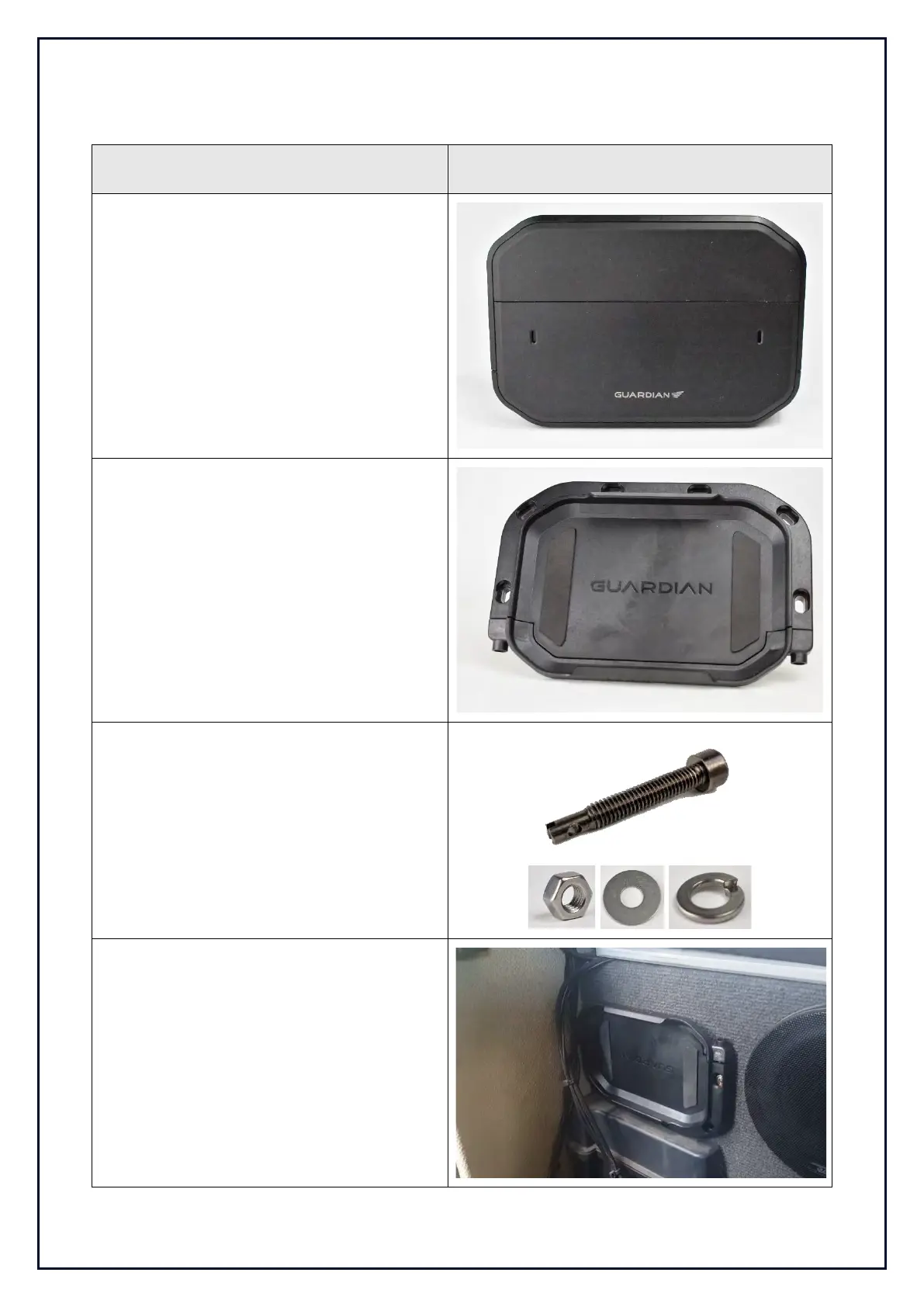

5.4.2 CONTROLLER UNIT INSTALLATION
Controller Unit
The Contoller Unit
When installing the Contoller Unit you will
need:
The Mounting Pan
- You should use at least 3 mounting
screws.
- It should be orientated so that you
can easily access the 2 bottom T20
bolts to slide the controller panel off
without removing the Controller Unit
from the Mounting Pan.
The Fasteners
- Each fastener should be used to
securely mount the unit so that it is
protected against vibration.
Mounting Location:
Determine the most suitable place for
mounting using the following considerations:
