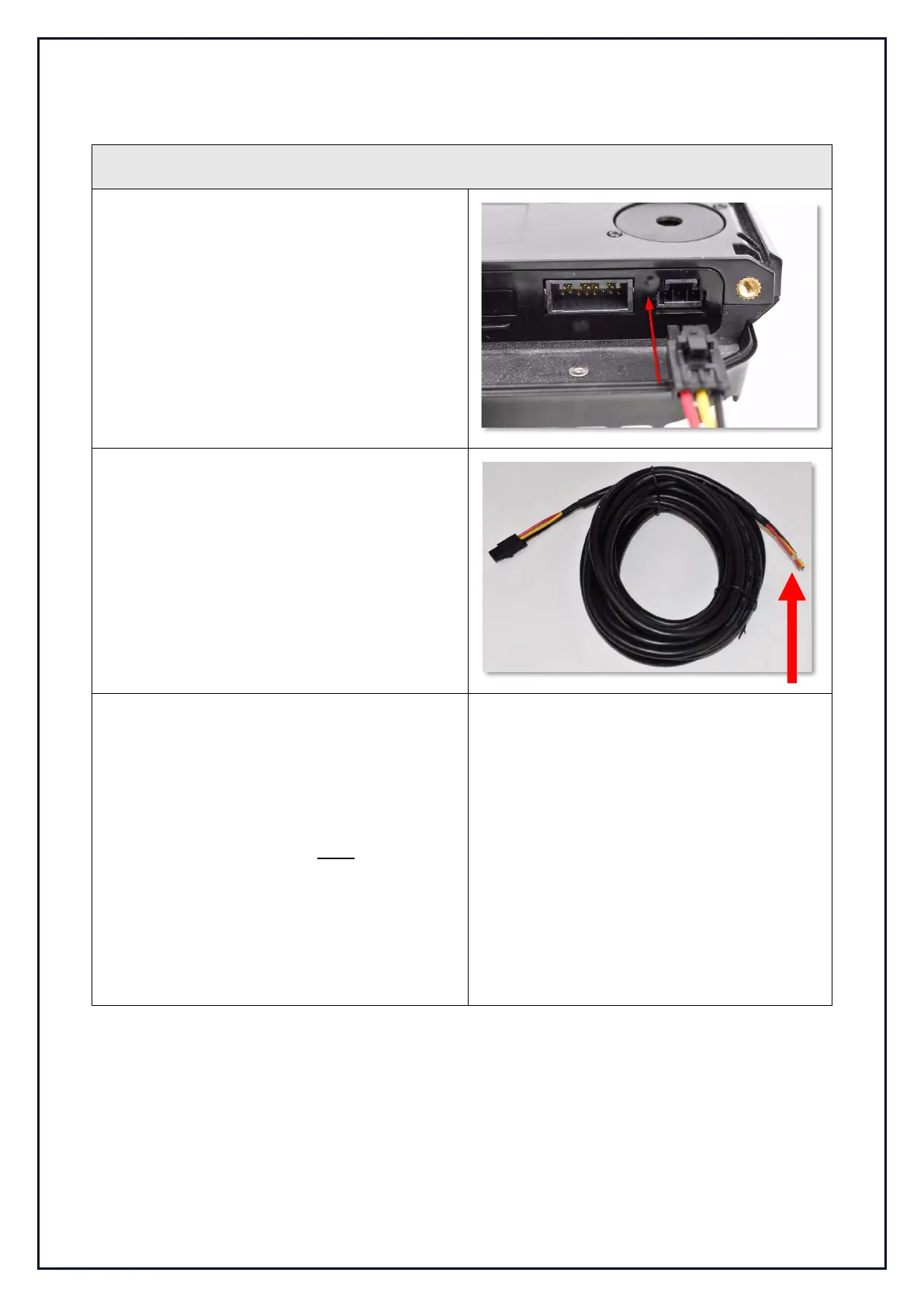

5.4.8 POWER CABLE INSTALLATION
Mounting Location:
Ensure that you start at the Controller/Mounting
Pan (to ensure you have enough length).
Route the Power Cable to the fuse box for the
power pickup.
You will need to route the cable in such a way
that it is not at risk of being damaged during
normal vehicle operation. Once you have
routed the cable to the fuse box cut off any
excess cable with your wire cutters.
Note: The Power Cable is the only cable that
can be cut during installation.
At the fuse box
The fuse holders are to be attached at the end
of the Power Cable, as close to the fuse box as
possible. They must be attached in line with
the power connection on the battery and
ignition wires.
WARNING: The inline fused must be used for
install. There is a risk of electrical fire if they
are not used.
The provided ring terminals can be used
depending on the connection type.
For information on crimping techniques refer to
the “Installer Resources” on the TCP.
