Guardian Field Support Manual – Section 2
49

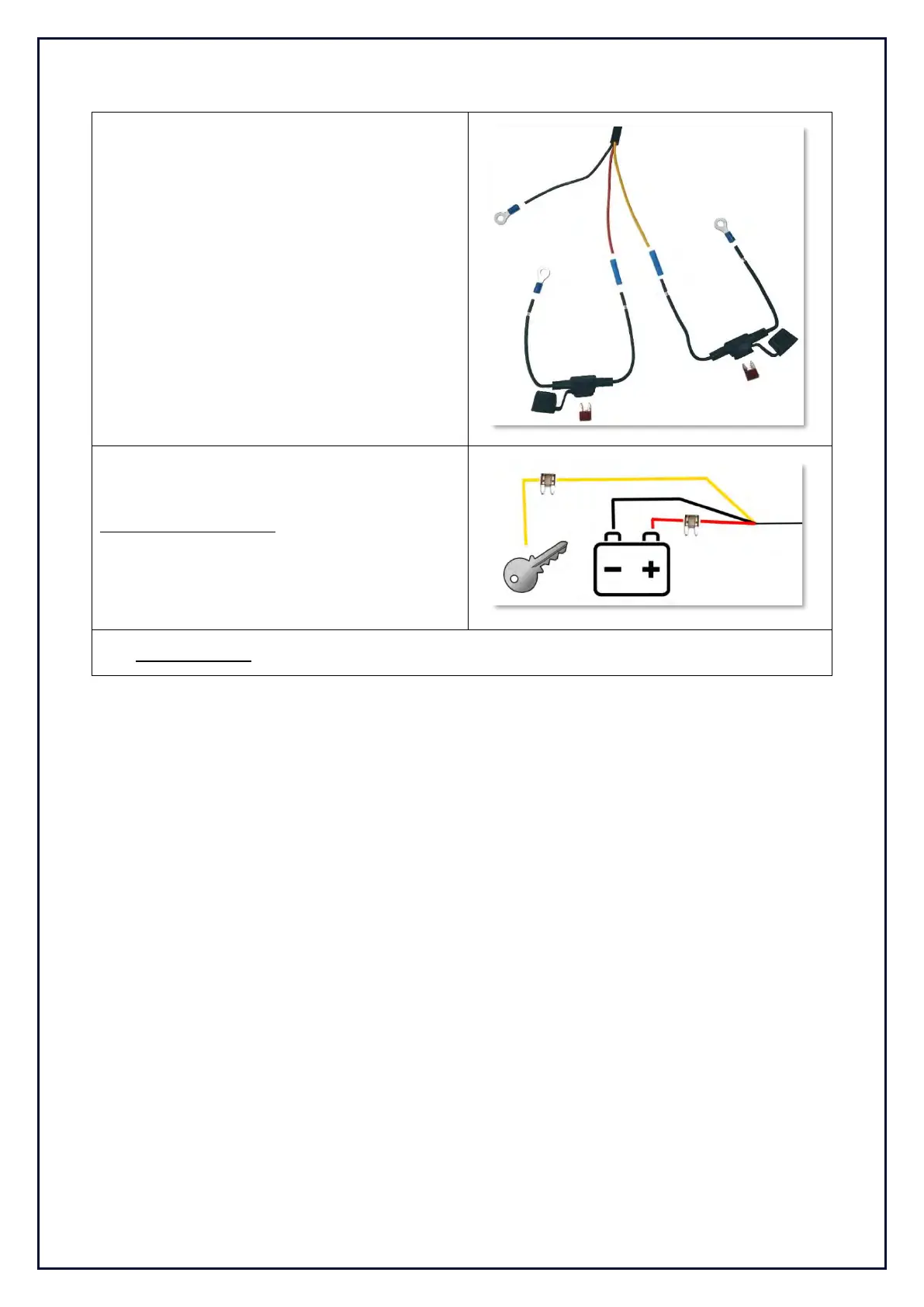

Types of Connection:
The system comes with enough crimps to
enable you to crimp together the connections.
This is the preferred method.
Soldering is permitted; however, you must
ensure that your soldering joints are protected
from shorting out by covering them with
electrical tape or heat shrink.
Before power connection:
Isolate the vehicle
The wiring is as follows;
RED WIRE – Battery Terminal (7.5A fuse).
YELLOW WIRE - Ignition Terminal (7.5A fuse).
BLACK WIRE – Ground/Chassis Terminal.
You must un-isolate the vehicle to find your pickup points.
