5.4.9 MFC INSTALLTION
Multi-Function Cable (MFC)
Mounting Location:
The MFC connects the system to:
- The Vibration Motor.
- The Cruise Control Disable Cable
(Optional Extra See the TCP).
- Mix Integration Cable
- Other Fleet Management Systems
(FMS) Serial and USB ports. Note
that these connections are designed
to work with other FMS/Telematics
systems, not the FMS system in the
truck.
The MFC will be plugged into the Controller.

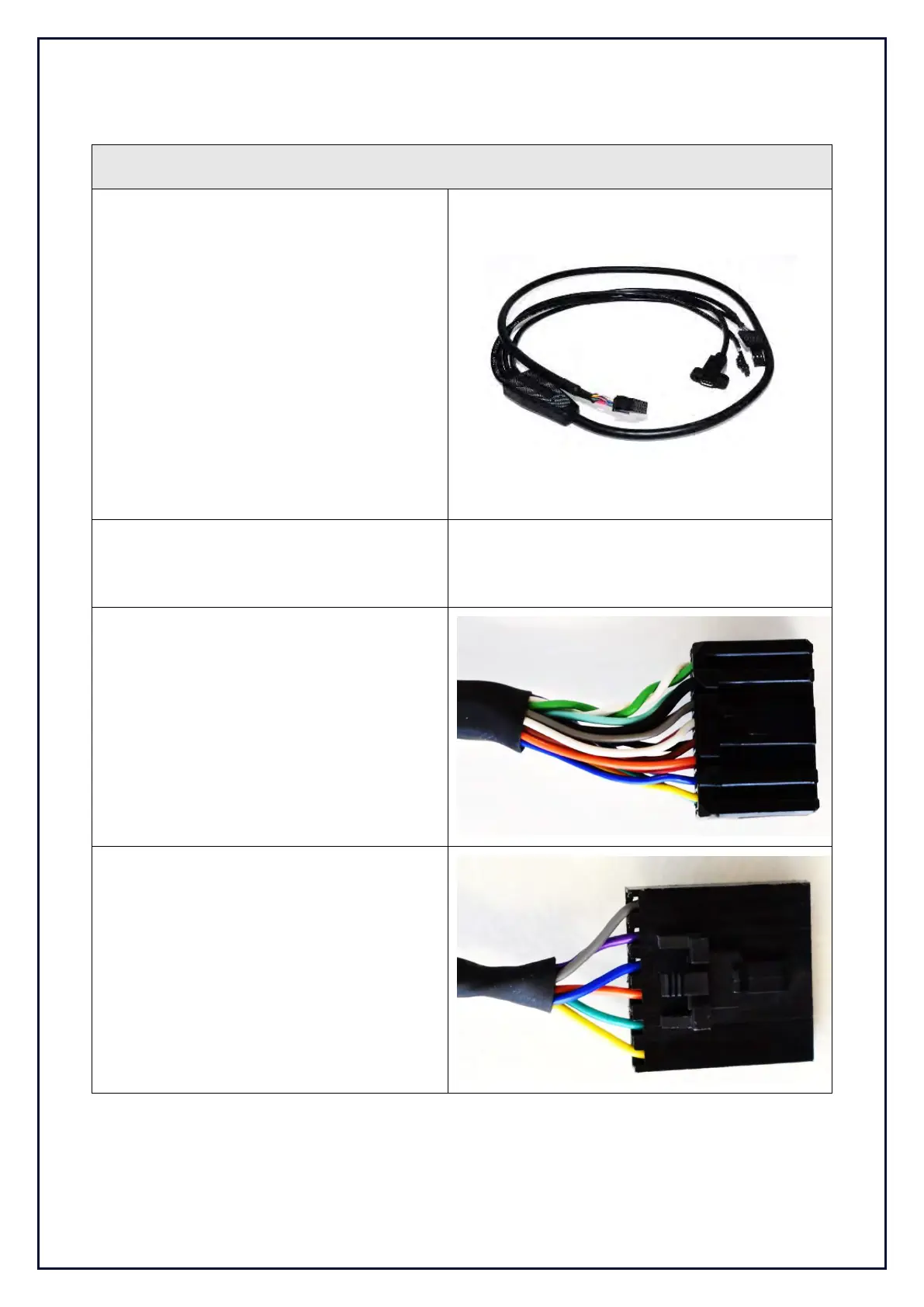

Types of Connection:
The MFC cable splits from one connector to
four.
The Main connector plugs into the Controller
(see image).
The six pin connector plugs into the
Vibration Motor cable.
