Guardian Field Support Manual – Section 2
34

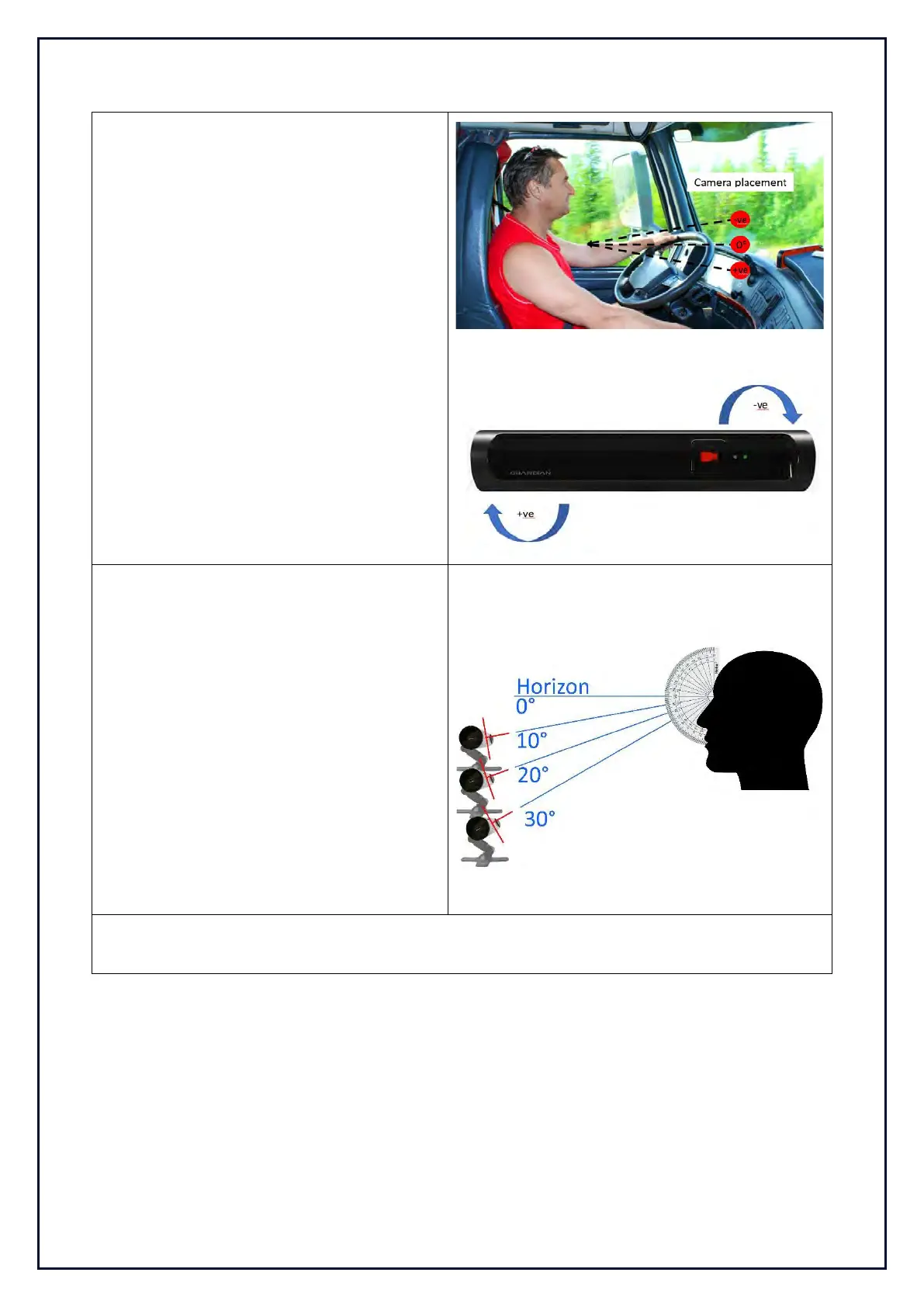

The ICS is designed to be mounted at 0° or
lower. 0° is considered to be directly in front
of the driver’s head.
If the ICS has been mounted above the
steering wheel (for example) and it has been
rotated in a downward direction, it will result
in a negative (-ve) value. If the ICS has
been mounted below the dash and it has
been rotated in an upward direction, it will
result in a positive (+ve) value. The IVS
Install Wizard will not auto calibrate negative
(-ve) values.
Adjusting the Pitch
The final position of the ICS should be
perpendicular to the drivers face in the
normal sitting position for both Pitch and
Yaw.
The Pitch should be set between 10 and 30
degrees of the drivers head position.
Adjust the angle of the ICS (vertically up and
down), so that the sensor is perpendicular to
the driver’s head position as shown in the
image.
Note: The pitch and yaw can be fully adjusted during the Software installion when you can see
the video feed.
