3.9 DiggiMEC – Nano HMI with Flag Indicators and Output Relays
The DiggiMEC is a remote HMI to be used in connection with a WIC1 (version 2) protection
relay. (It cannot be used with the predecessor WIC1.)
An overview of the elements and connectors can be found here: ╚═▷ “3.9.1 Navigation –
Operation”, and here: ╚═▷ “3.9.2 DiggiMEC Connectors”
Information about the LEDs and their con󰊟guration is here: ╚═▷ “3.8.1 LEDs”
Connection of the DiggiMEC
Network Cable
RJ45
RESET
WIC1
WIC1_Z04
Smart view
DiggiMEC
USB Cable
RJ45
(Rear Side)
Device connected
Ready
Shortcuts
Device Data
Smart view
Operation
Device planning
Device Para
1,0
Field Para
50/60
Protection Para
7
6
5
WIC1
Operation
Device planning
Device Para
Field Para
Protection Para
Service
File Device Edit View Settings Tools Window Help
- . - - . -
- . - - . -
- . - - . -
- . - - . -
Name Value
Protection Para/- . -
Information
4
Warning Incoming
3
Information
2
Information
1
Type
Record No.
Messages
Message
Value
?
Date of Record
27.07.2021 1... 22:56
27.07.2021 0... 0:47:28
27.07.2021 0... 9:44:29
27.07.2021 0... 9:44:29
SI3 Settings Changed
SW2 Run Mode
SI2 Device Restart
SI1 Firmware Update
1
Not OK
1
1
...
- . - - . -
- . - - . -
- . - - . -
- . - - . -
- . -
- . -
- . - - . -
- . - - . -
Name
- . -
Protection Para/- . -
- . -
- . -
- . - - . -
- . -
- . -
- . -
- . - - . - - . - - . -

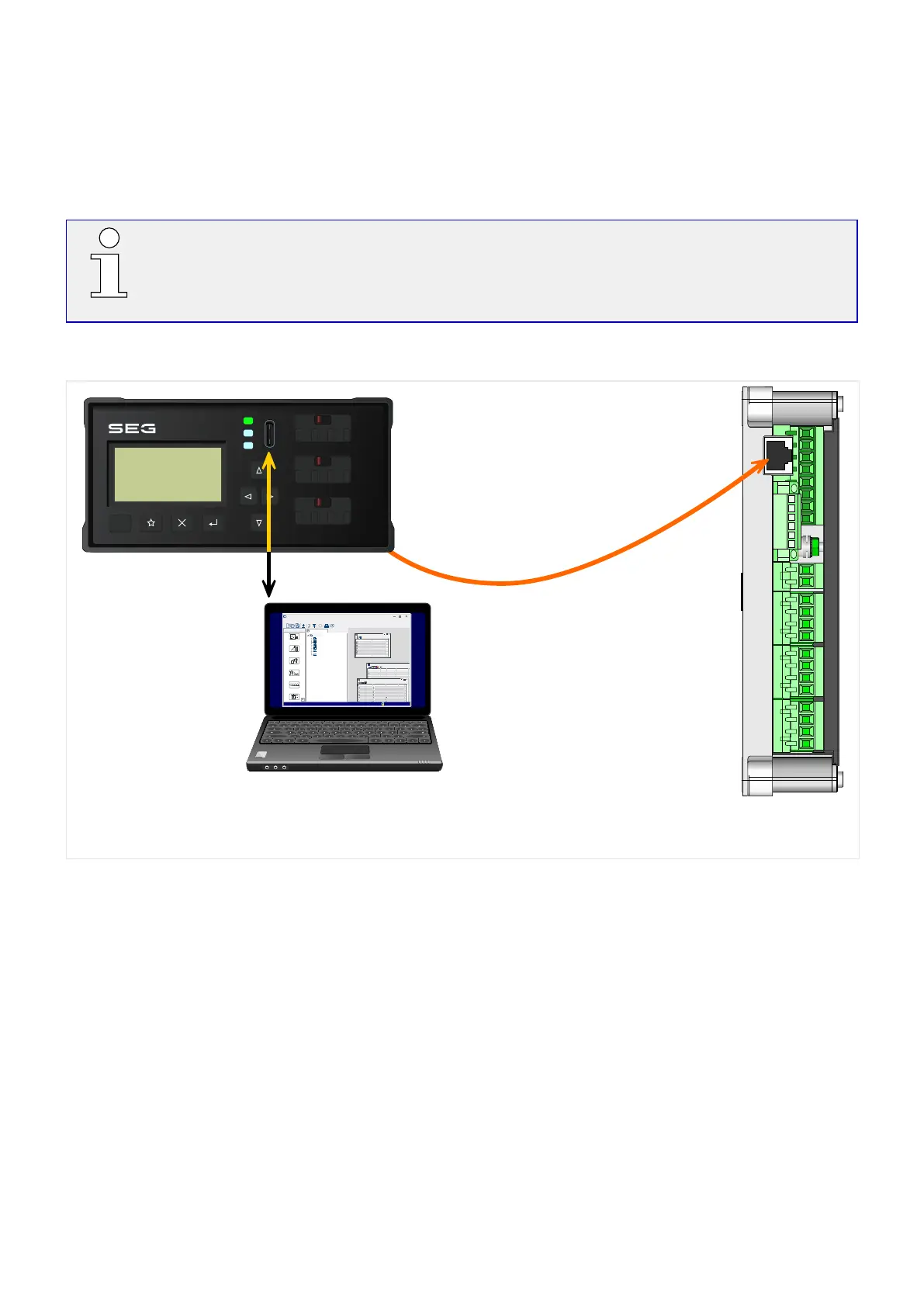

Fig. 34:
Connection options of a WIC1 with a DiggiMEC and a PC.
The WIC1 can be (optionally) connected to the interface device DiggiMEC, which adds
an LCD display, keys and one or three 󰊠ag indicators. Each 󰊠ag indicator is mechanically
related to a bistable output relay.
The DiggiMEC can be connected to a Windows PC, so that the parameter setting and
evaluation software Smart view can be used to con󰊟gure the WIC1 and to retrieve
measurement values and fault data from it. Moreover, the WIC1 can trigger the 󰊠ag
indicators / output relays.
102 WIC1 WIC1-1.0-EN-MAN
3 Hardware
3.9 DiggiMEC – Nano HMI with Flag Indicators and Output Relays
