Seg WIC1-3 User Manual

3.2.2
DiggiMEC Dimension Drawings
RESET
WI_Z02
[3.78]
96.0
48
[1.89]
[4.02]
102.0
53
[2.09]

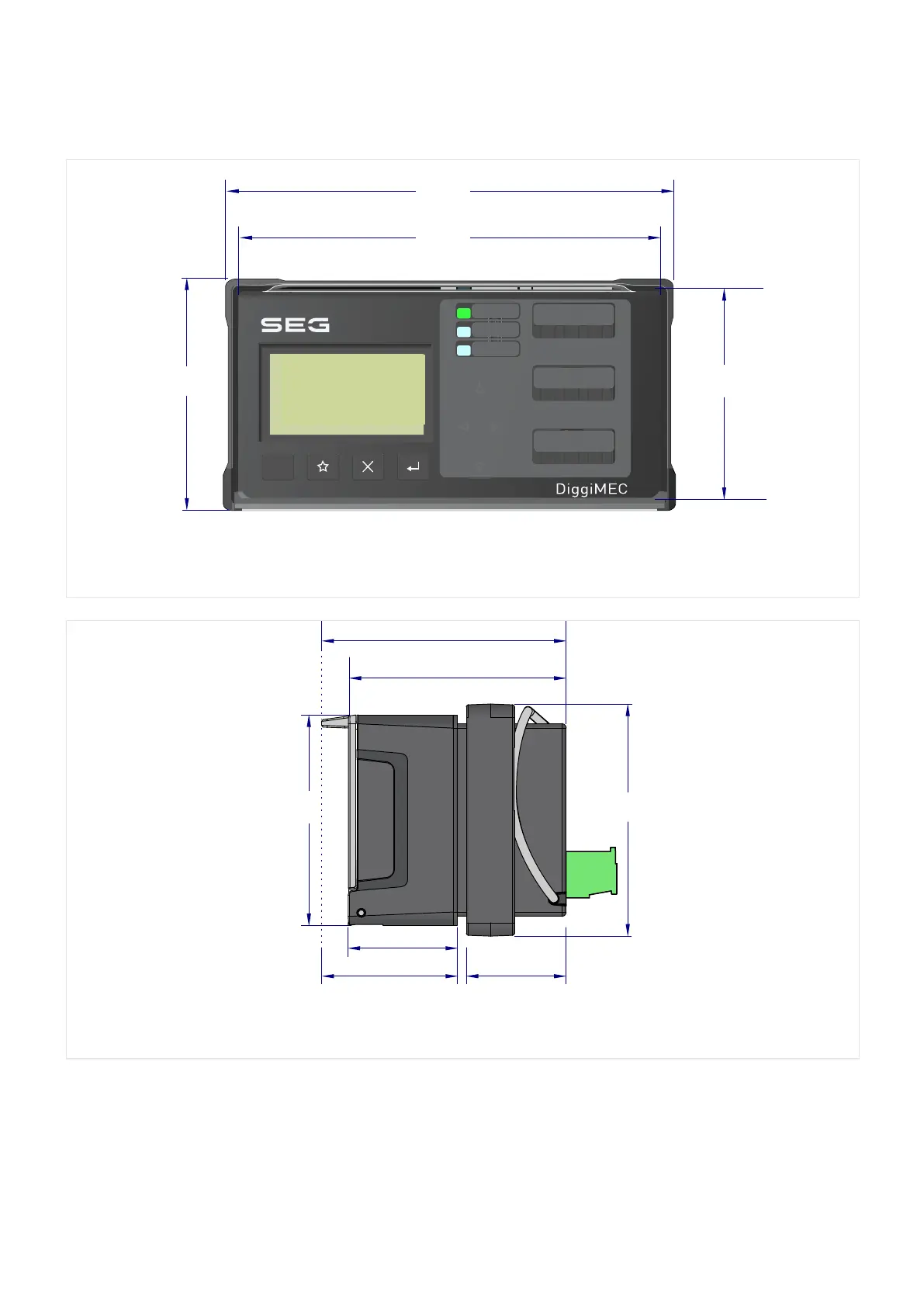

Fig. 9: DiggiMEC, front view. All dimensions in mm, except dimensions in brackets [inch].
WI_Z03
[0.98]
24.8
48
[0.98]
25
[1.22]
31
[1.96]
49.8
[2.20]
55.8
53
[2.09][1.89]
Fig. 10: DiggiMEC, side view. All dimensions in mm, except dimensions in brackets [inch].
60 WIC1 WIC1-1.0-EN-MAN
3 Hardware
3.2.2 DiggiMEC Dimension Drawings
