CONTROL UNIT
61
10

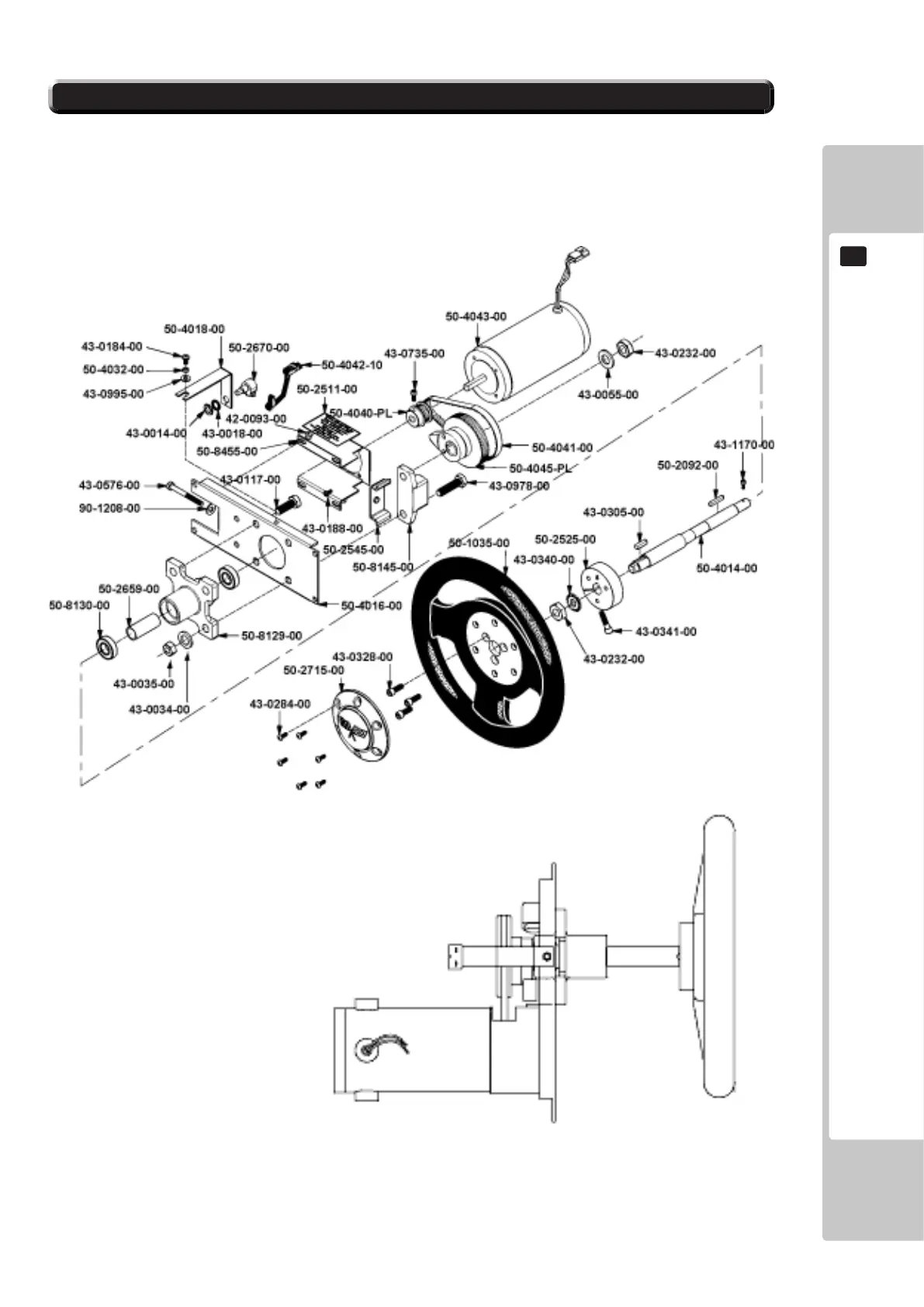

The exploded diagram below shows the Active Steering Wheel Assy. Each part is tagged with a part number. Please
quote this number when ordering spare parts.
10-1 CONTROLLER - EXPLODED DIAGRAM
