Sega Grid 42 - Installing a Twinned Cabinet

ASSEMBLY AND INSTALLATION
17
6
6-1-2 INSTALLING A TWINNED CABINET (EU ONLY)
1
Locate the Cabinets into location as once assembled it is not recommended to move the Cabinets as damage
may occur to the connection points between each Cabinet.
Follow the instructions to install the Assy Billboard and Billboard Plate on the previous pages of this
manual. Chapter 6-1-1 and 6-1-2.
2

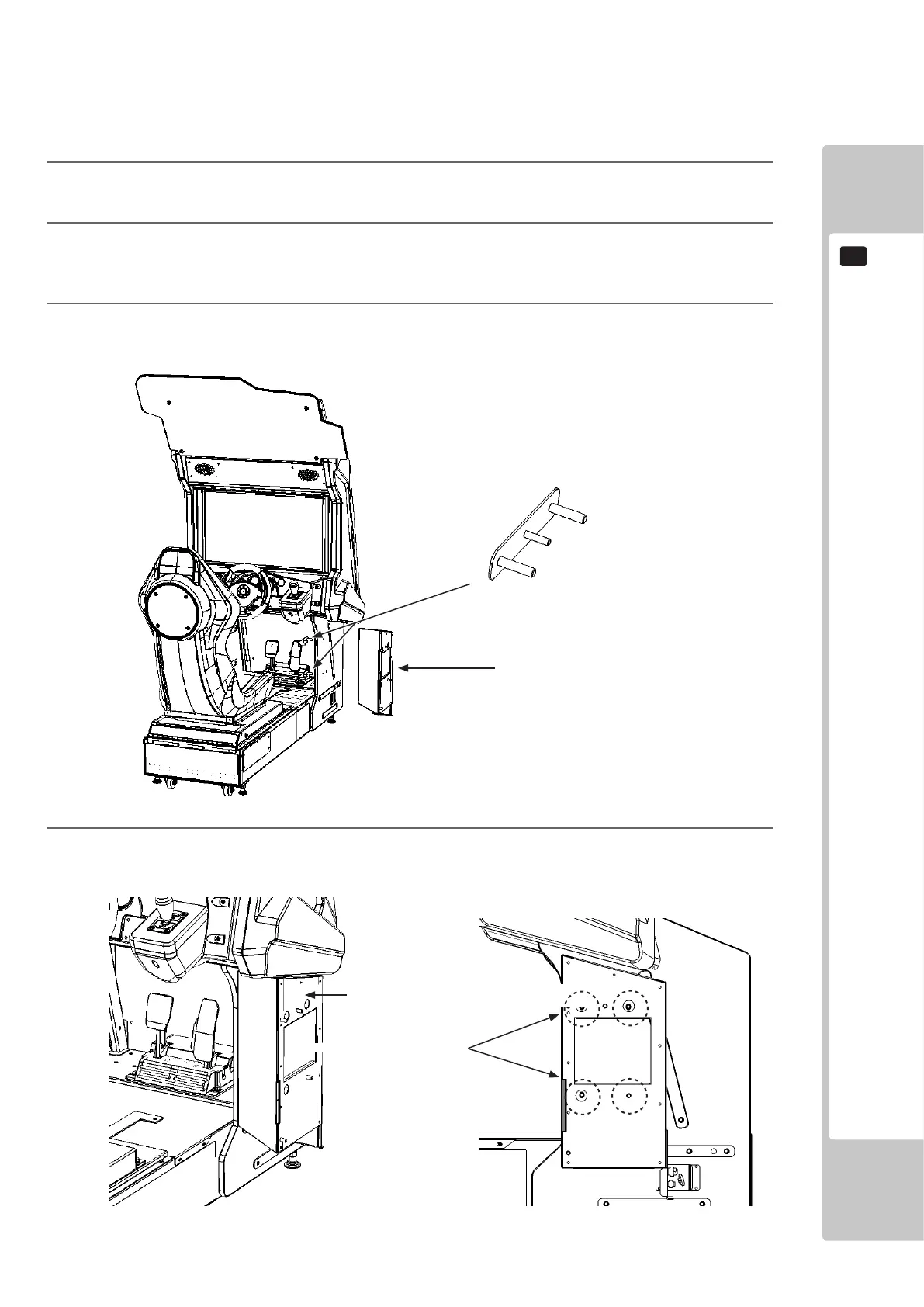

Fit 2x Coin Chute Tower Holders (RD-1214UK) to the inside footwell if the Left Hand Cabinet as
illustrated.
3
Offer the Coin Chute Tower Spacer Left (PD-0051UK) up to the xing positions of the Coin Chute Tower
Holders. Once aligned, x securely into position using 4x M8 Hex Nuts (supplied)
Coin Tower Holder x2 (RD1214UK)
Coin Chute Tower Spacer Left. (RD-0051UK)
Coin Chute Tower Spacer Left.
(PD-0051UK)
M8 Hex Nuts (4) Supplied
