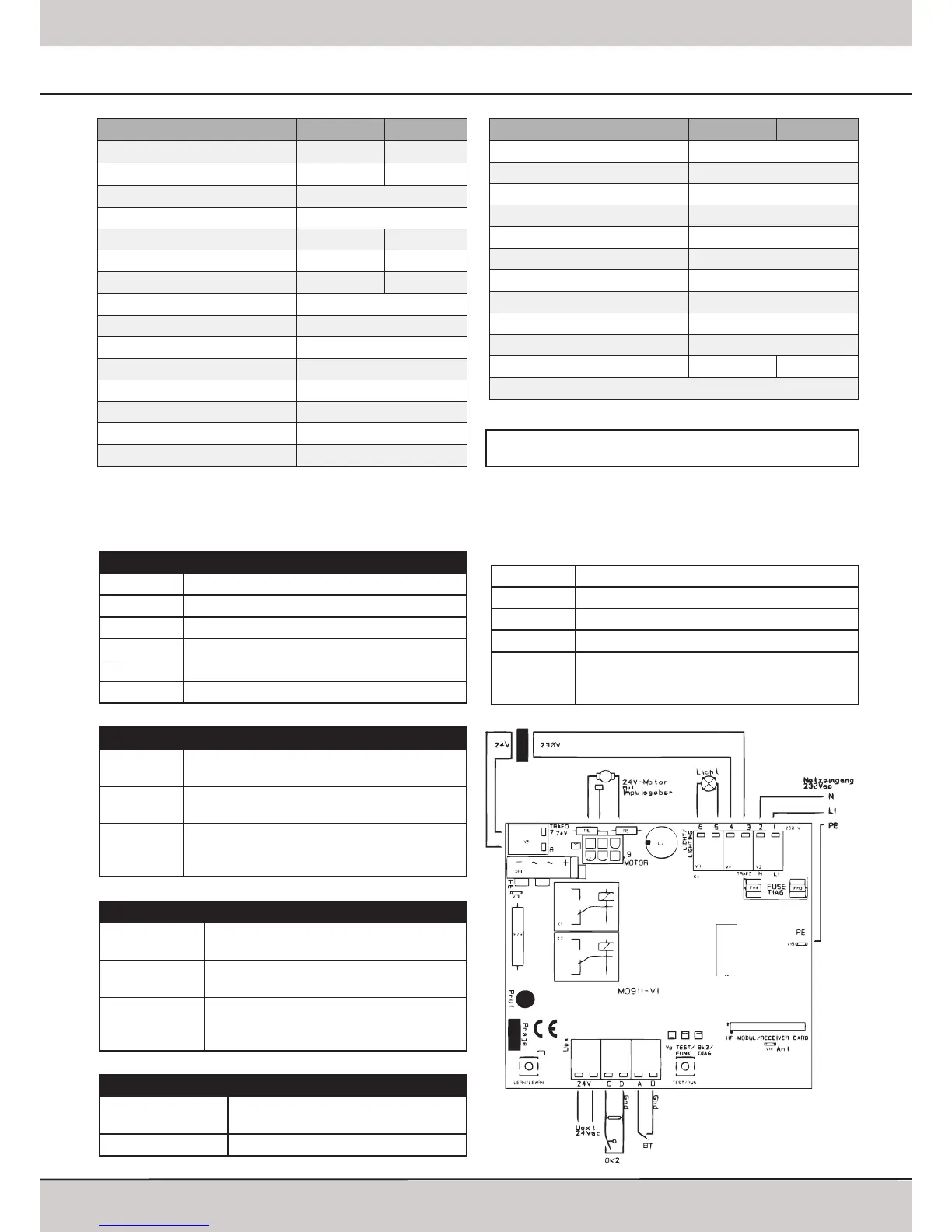

Installation Instructions TM50/TM80 - MO911/1V0
Page 18
Technical Information
Technical Data
Wiring Diagram
TM 50 TM 80
Nominal Pulling Force 50 kg 80 kg
Peak Pulling Force 60 kg 90 kg
Force-Setting for Operation automatic
Motor 24V DC, low-noise
Max� Running Speed 18 cm/sec� 14 cm/sec�
Speed in Soft Mode 8 cm/sec� 8 cm/sec�
Time for 2,10m opening 11,5 sec� 16 sec�
Lighting 230V AC, max� 40W
Lighting Durance (adjustable) 10 sec� to 10 minutes
Duty Cycle 50%
Stand By Power Consumption 2�0 watts
Power Supply 190-250V AC
Transformer 230V AC, 24V AC
Pre-Warning Light adjustable
Automatic closing adjustable
TM 50 TM 80
Net Running Length 2,500 mm
Max� Running Length extended 4,000 mm
Overall Length 3,150 mm
Height Motor Head 80 mm
Length Motor Head 360 mm
Width Motor Head 180 mm
Minimum Space above the door 35 mm
Weight including packaging 18 kg
Noise Emissions ≤ 60 dB(A)
Programmable Remotes 10 max�
Max� number of cars/garage 1 3
Subject to technical alterations!
Maintenance: The operator is maintenance free! Do not
grease or oil the chain!
Internal Wiring
1 Blue, mains supply, 230V
2 Brown, mains supply, 230V
3 Black, transformer, 230V
4 Black, transformer, 230V
5 Brown, Lighting, 230V
6 Blue, Lighting, 230V
External connections
A + B Floating connector for push-button, key-switch
and the impulse cables of an external receiver
C + D Floating connector with a 8,2kOhm resistor for
impulse cables from a photo-cell receiver
24V 24V AC for a photo cell transmitter when a
self test before every movement of the door is
required
Others
HF-Modul/Receiver
Card
Plug for receiver module, 433 MHz
FUSE Fuse T1,6A 250V
Devices for adjustments
Button
„Test/Run“
Runs the operator - OPEN-STOP-CLOSE
Button
„Lern/Learn“
For automatic force setting and registration
of hand transmitters
Jumper
“FORCE/PRES-
SURE”
Setting of lower or higher force
7 White, transformer, 24V
8 White, transformer, 24V
9 MOTOR Connector for the plug from the motor
PE Earthing from P�C�B� to base plate
Earthing of
the mains
supply
The earthing of the mains supply (green/yellow)
is connected to the base plate with a screw (the
screw is marked with a earthing symbol)
