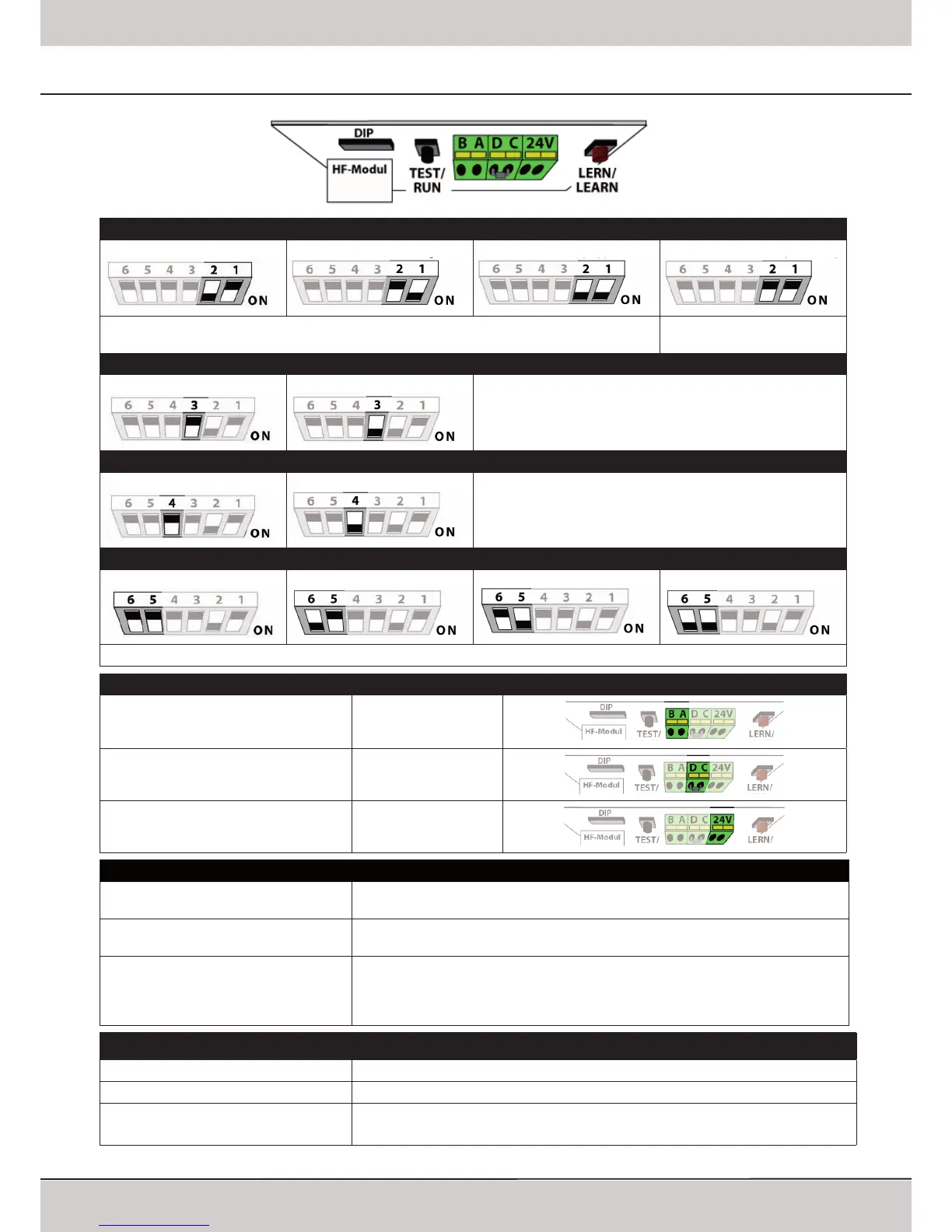

Seip TM 50 - Quick Reference for Experienced Installers

Installation Instructions TM50/TM80 - MO911/1V0
Page 3
Adjusting the Door Type
Sectionaldoor
Tilting Door
Tilting Door
Canopy Type Doors
Canopy Type Doors
Canopy Type Doors
Canopy Type Doors
Free Programming
Free Programming
Free Programming
After changing the DIP-switch settings the operator MUST run through a learning cycle: keep the
LEARN button pressed for 3 seconds, release it and press it again shortly�
For free programming, pls�
refer to page 13�
Increased Force shortly before reaching Closed Position
Standard
Increased Force Changing the DIP-switch settings must be conrmed by shortly
pressing the LEARN button�
Pre-Warning Light (always active when using automatic closing, pls� refer to page 14 )
Off
ON Changing the DIP-switch settings must be conrmed by shortly
pressing the LEARN button�
Automatic Closing
None
after 30 sec� after 90 sec� after 120 sec�
Changing the DIP-switch settings must be conrmed by shortly pressing the LEARN button�
Connectors
Push Button (potential free) A + B
Photo Cell and Hatch Door, 8�2 kOhm,
Remove resistor and connect it to the photo cell
by putting it in line with one impulse wire
C + D
24V AC Output, max� 200mAmp� 24 V
Programming
Running Length and Forces Keep the LEARN button pressed for 3 seconds, release it (the operators‘ light is now
blinking) and press it again shortly
Remote Components (Transmitters, Digi
Pad, Remote Wall Push Button)
Keep the LEARN button pressed for 3 seconds, release it (the operators‘ light is now
blinking) and press the desired hand transmitter button
Changing the Duration of the
Internal Lighting
Keep the LEARN button pressed for 6 seconds, release it once the green LED starts
glowing� Press LEARN button once again shortly -> the green LED starts blinking� Each
blink stands for 10 seconds of light duration� Once the desired duration is reached,
press the LEARN button again shortly (e�g� after 6 blinks for a duration of 60 seconds)�
LED-Indicators
Vp (yellow) On when 230V supply is o�k�
TEST/FUNK (green) On whilst an impuls is received from remote devices or a connected push-button (A+B)
8k2/Diag (red) On when an error from a connected safety device is received (connectors C+D) or
blinks in intervalls to indicate error messages (refer to page 19)
Quick Reference for experienced Installers
