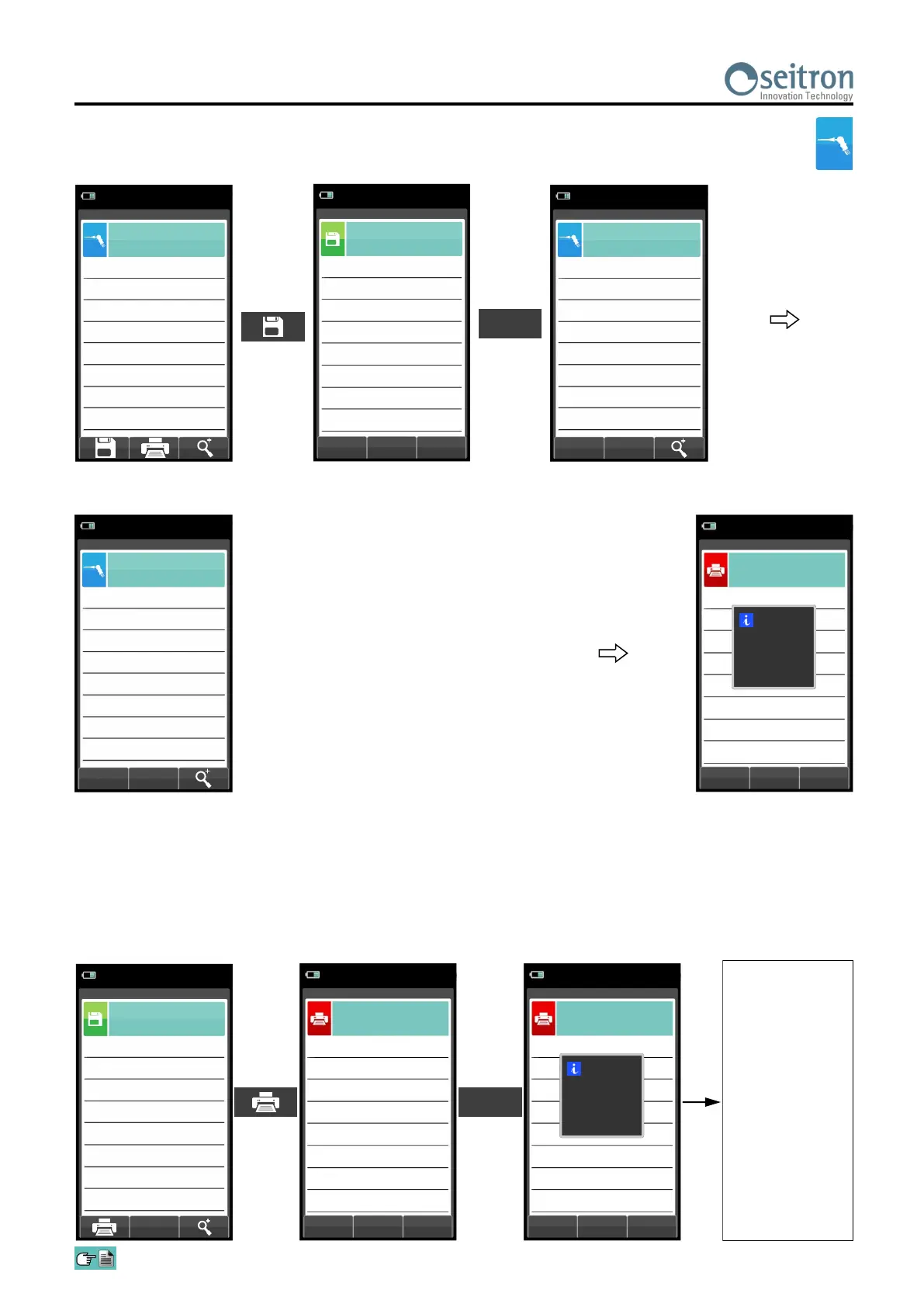

14.5 PERFORMING THE COMBUSTION ANALYSIS - BImSchV MODE
OK
15/01/14
10:00
ηs
%
91.4
Qs
%
8.6
ΔT
°C
74.7
T air
°C
15.4
T flue
°C
190.1
λ,n
1.25
CO
2
%
9.3
O
2
%
4.2
Combustion analysis
BImSchV

1
1
Memory
Save
15/01/14
10:00
OK
Memory
3
Mode
BImSchV
Samples
30
Interval
s
1
Automatically saves
the first sample
when the set time is
over.
15/01/14
10:02
ηs
%
91.4
Qs
%
8.6
ΔT
°C
74.7
T air
°C
15.4
T flue
°C
190.1
λ,n
1.25
CO
2
%
9.3
O
2
%
4.2
Combustion analysis
BImSchV

2
1
Automatically saves the second
sample when the pre-set time
interval has elapsed and so on
until the last sample.
Once the flue gas analysis is
completed the instrument saves
the average value of the samples
taken.
Memory
Analisi BImSchV
15/01/14
10:00
ηs
%
91.4
Qs
%
8.6
ΔT
°C
74.7
T air
°C
15.4
T flue
°C
190.1
λ,n
1.25
CO
2
%
9.3
O
2
%
4.2
15/01/14
10:00
Print
Report
Analysis
BImSchV
Memory
3
OK
Model
partial
15/01/14
10:00
Print
Report
Analysis
BImSchV
Memory
3
F1
Model
partial
NOTE: If, while configuring the tightness test the automatic printing mode has been
selected, the tightness test is printed automatically.
Instead, if the manual printing mode has been selected (exemplified case), at the end
of the tightness test the results are displayed and they can be saved and/or printed.
In this case proceed as follows:
Date: 15/01/14
Time: 10.10
Fuel: Natural gas
Altitude: 0 m
R.H. air: 50 %
O2 4.2 ٪
CO2 9.3 ٪
λ,n 1.25
T flue 190.2 °C
T air 15.4 °C
ΔT 174.8 °C
QS 8.6 ٪
ηs 91.4 ٪
ηc 4.9 ٪
ηt 91.4 ٪
CO 148 ppm
NO 40 ppm
NOX/NO: 1.03
NOX 41 ppm
CO amb 0 ppm
Draft: 0.05 hPa
T out: 20 °C
Smoke: 3 1 2
Aver. n: 2
OK
15/01/14
10:00
Print
Report
Analysis
BImSchV
Memory
3
F1
Model
partial
15/01/14
10:00
ηs
%
91.4
Qs
%
8.6
ΔT
°C
74.7
T air
°C
15.4
T flue
°C
190.1
λ,n
1.25
CO
2
%
9.3
O
2
%
4.2
Combustion analysis
Date/Time
auto
WARNING
F1: stop
Printing.
Please wait...
Date/Time
auto
Date/Time
auto
WARNING
F1: stop
Printing.
Please wait...
