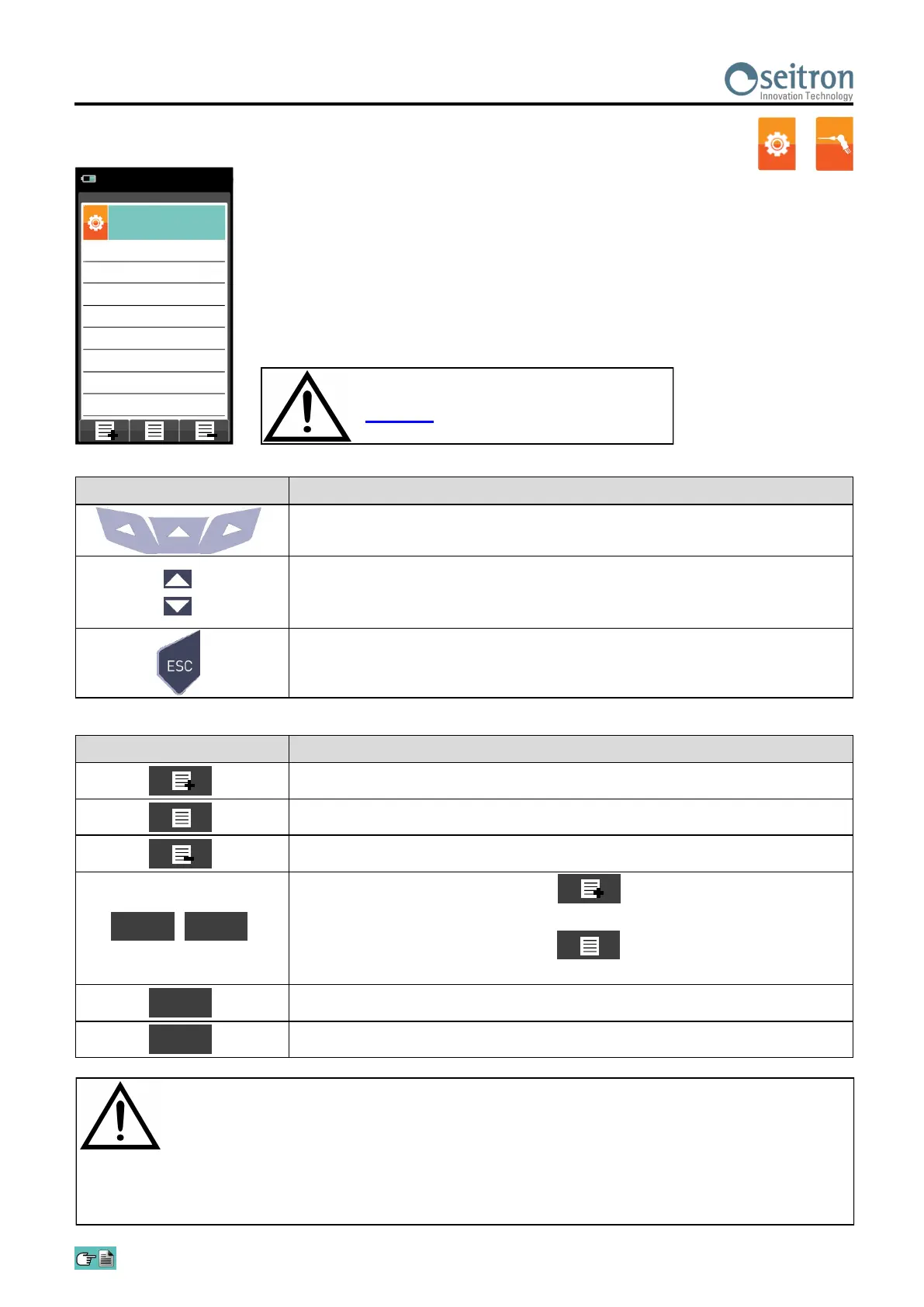

10.2.7 Configuration→Analysis→Measures list
CONTEXT KEY FUNCTION
Adds a line to the list of available measurements.
Activates the movement of a measurement from its current position.
Deletes a measurement from the list of available measurements.
After the activation of the function ' '.
It scrolls through the available measurements.
After the activation of the function ' '.
It moves the element from its current position.
Confirms the operation.
Cancels the operation.
»
OK
▼
▲
Esc
KEY FUNCTION
Activate the context keys shown on the display.
Select each line displayed (the line selected is red).
In edit mode, it sets the desired value.
When pressed in modify mode cancels the selection made, otherwise
returns to the previous screen.
»
→
Configuration
Measures list
15/01/14
10:00
ηs (PCI)
Qs (PCI)
ΔT
T air
T flue
λ,n
CO
2
O
2
»
FOR FURTHER DETAILS SEE THE
ANNEX E
OTHER THAN THE MEASUREMENT LIST ABOVE, IT IS POSSIBLE TO VISUALIZE THE
MEASURE OF THE DETECTED GAS ALSO IN PPM, DEPENDING ON THE KIND OF
MEASUREMENT CELL IN THE INSTRUMENT. IF IT IS NECESSARY TO MEASURE THE
VALUE OF GAS WITH TWO DIFFERENT MEASUREMENT UNITS, SELECT IN THE
MEASUREMENTS LIST THE DESIRED GAS IN PPM AND CHANGE THE MEASUREMENT
UNIT FOR THE SAME GAS IN THE “CONFIGURATION->ANALYSIS->MEASUREMENT UNIT”
SCREEN. NOW THE INSTRUMENT ACQUIRES THE MEASURE WITH TWO DIFFERENT UNITS
(PPM AND THE ONE PREVIOUSLY SET)
To Next Page
