In order to perform the calibration, the following tools are needed:
- Known concentration gas cylinder suitable for the sensor, complete with a pressure regulator
WARNING!
For the oxygen sensor on site calibration, the zero value calibration must be carried out with nitrogen
or any other gas mixture which DOES NOT contain oxygen.
- Flow meter.
- Hose with ' T ' shaped junction, in order to connect the cylinder to the instrument and the flow meter.
Following, the suggested stabilization times for the sensors on-site calibration.
O
2
sensor: from 3 to 5 minutes
CO sensor: from 3 to 5 minutes
NO sensor: from 3 to 5 minutes
SO
2
sensor: from 5 to 8 minutes
NO
2
sensor: from 5 to 8 minutes
CxHy sensor: from 3 to 5 minutes
H
2
S sensor: from 3 to 5 minutes
CO
2
sensor: from 3 to 5 minutes
NH
3
sensor: from 3 to 5 minutes

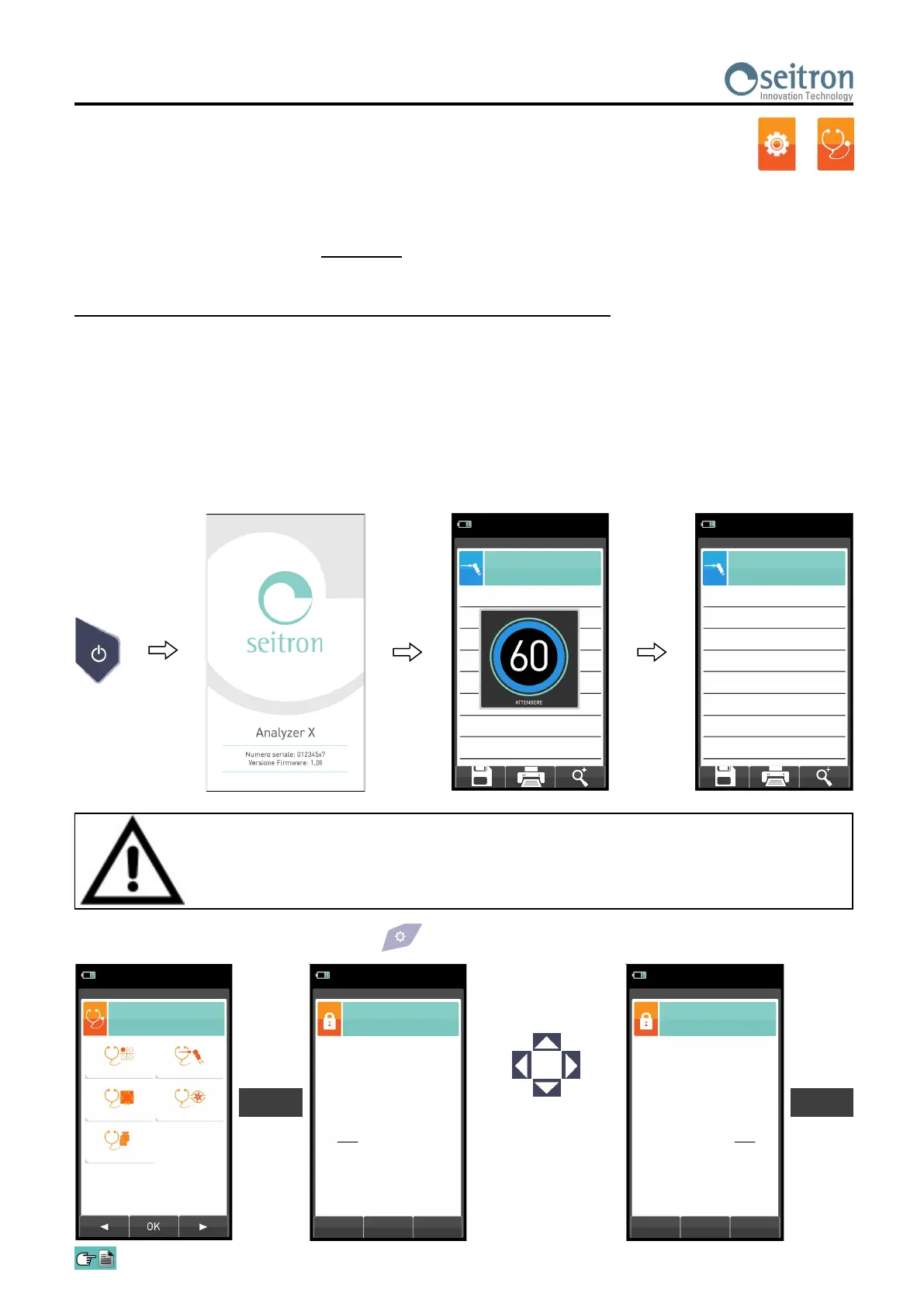

Calibration procedure
→
1. Start the instrument
WARNING
Make sure autozero is execute in clean air and terminates correctly.
Do not connect the gas probe to the instrument.
Check the battery charge level or connect the power adapter to avoid data loss
during recalibration.
15/01/14
10:00
Sensors
Hardware
Gas probe
Pump
Diagnostic
On site cal.
Password
On site calibration
15/01/14
10:00
0 0 0 0
OK
Password
On site calibration
15/01/14
10:00
1 1 1 1
OK
OK OK
2. Once autozero is completed press the key and select the diagnostic icon.
Enter the
recalibration menu
password 1111.
