32

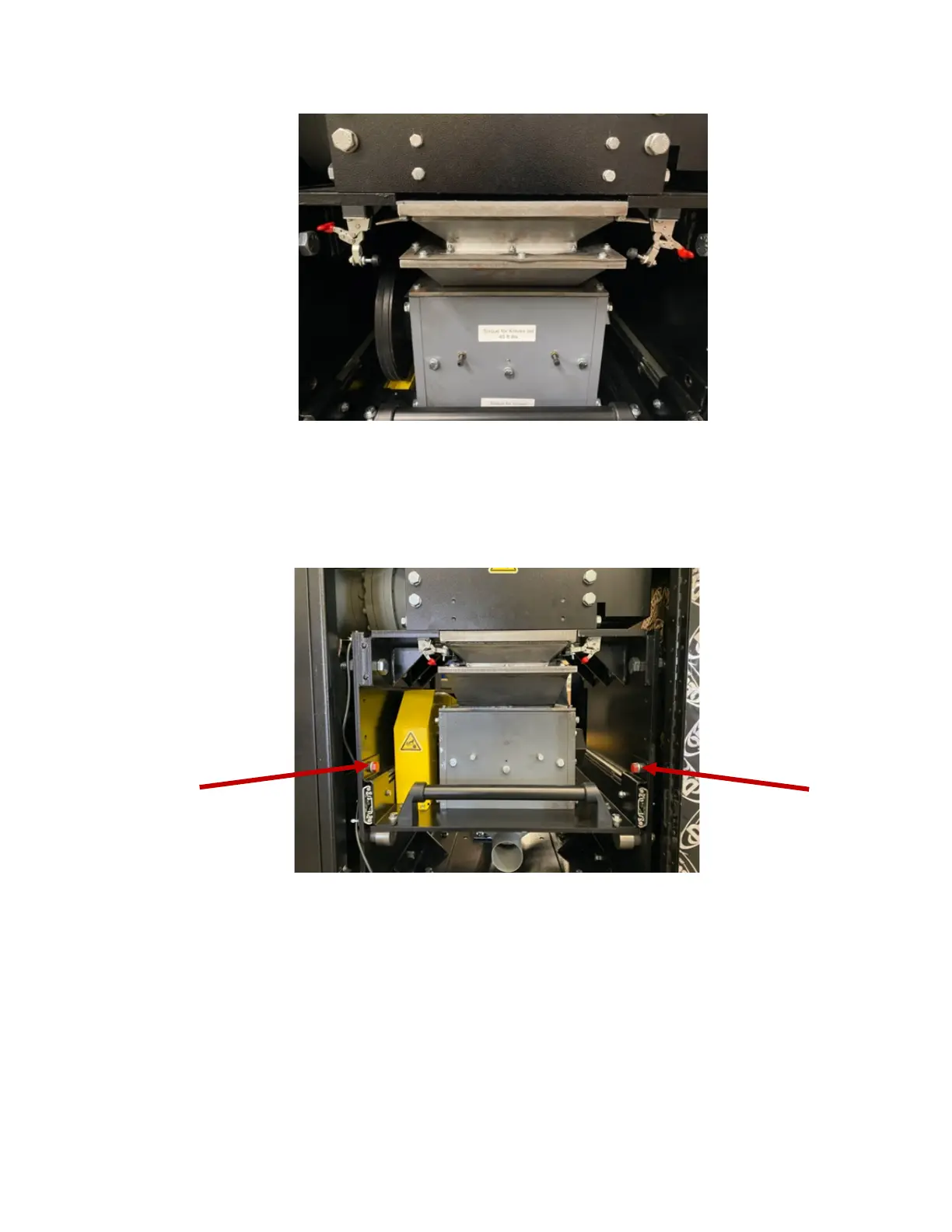

Figure 35. Inside Stage 2 cutting chamber access door
3. Using a 3/4” socket wrench, remove the two painted side bolts that hold the cutting chamber drawer in
place. See Figure 36.
NOTE: Never operate the unit without these bolts in place.
Figure 36. Two painted side bolts to remove
4. Unlatch the four latches holding the mid-hopper adapter to the bottom of Stage 1 (Figure 37). There are
two latches in the front and two in the back.
