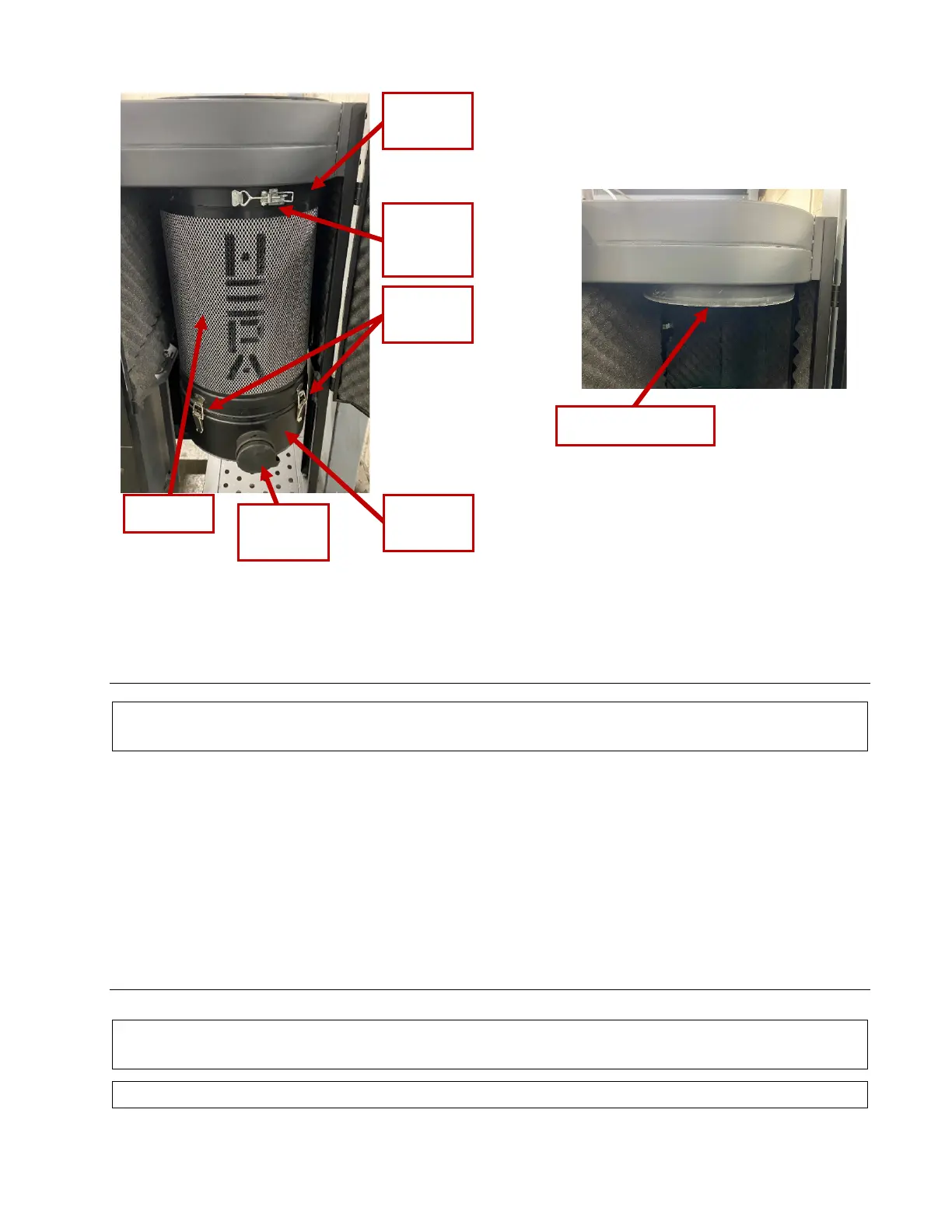

Figure 11. HEPA filter installation details

Figure 12. Filter support

Removing or Changing the Screen

Caution: Always de-energize the unit using proper lockout-tagout (LOTO) procedures when cleaning,

lubricating, or performing any other maintenance, troubleshooting, or repair.

Tools and PPE Required:

• Cut resistant gloves

• 9/16” socket (for 3/8” bolts)

• 1/2” deep socket with 6” or longer extension

To remove or inspect the screen you need to access the Stage 2 cutting chamber. The screen will be exposed

under the cutting chamber drawer. Follow the instructions in the next section to access the Stage 2 cutting

chamber.

Accessing the Stage 2 Cutting Chamber Before Removing the Screen

Caution: Always de-energize the unit using proper lockout-tagout (LOTO) procedures when cleaning,

lubricating, or performing any other maintenance, troubleshooting, or repair.

Warning: NEVER reach into the cutting chamber with bare hands.

Endcap

latches

Filter

endcap

Filter

band

clamp

Filter

band

Endcap

window

Filter support lip
