Sena SF Series - Installing the Microphones

SF Series
13
English
3. Connect the speaker cable to the speaker connector.

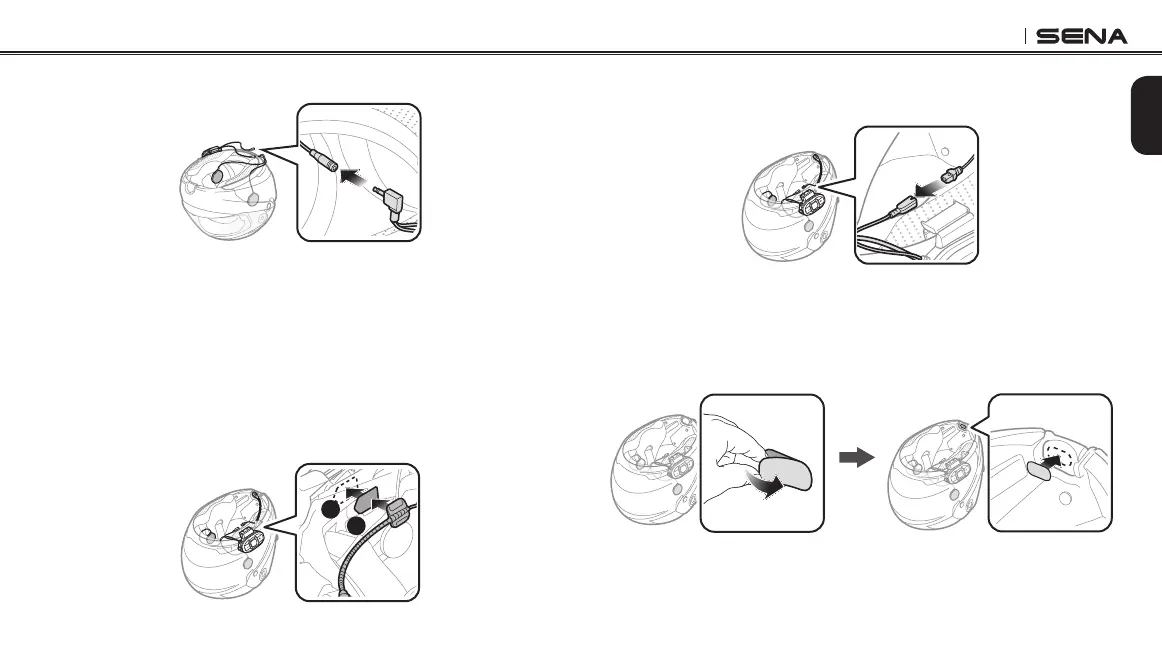

3.3 Installing the Microphones
3.3.1 Using the Wired Boom Microphone
1. Peel off the cover of the hook and loop fastener for the wired
boom microphone to expose the adhesive tape.
2. Attach the hook and loop fastener on the inside surface of the
left external shell, and then attach the wired boom microphone’s
mounting plate to the hook and loop fastener.
1
2
3. Align the arrows on the main unit and microphone cables and
insert the microphone cable into the microphone connector.
3.3.2 Using the Wired Microphone
1. Peel off the cover of the hook and loop fastener for the wired
microphone to expose the adhesive tape. Then, attach the hook
and loop fastener on the inside of the helmet’s chin guard.
