SPIDER ST1 Motorcycle Mesh Communication System | 13
2 INSTALLING THE HEADSET ON YOUR HELMET

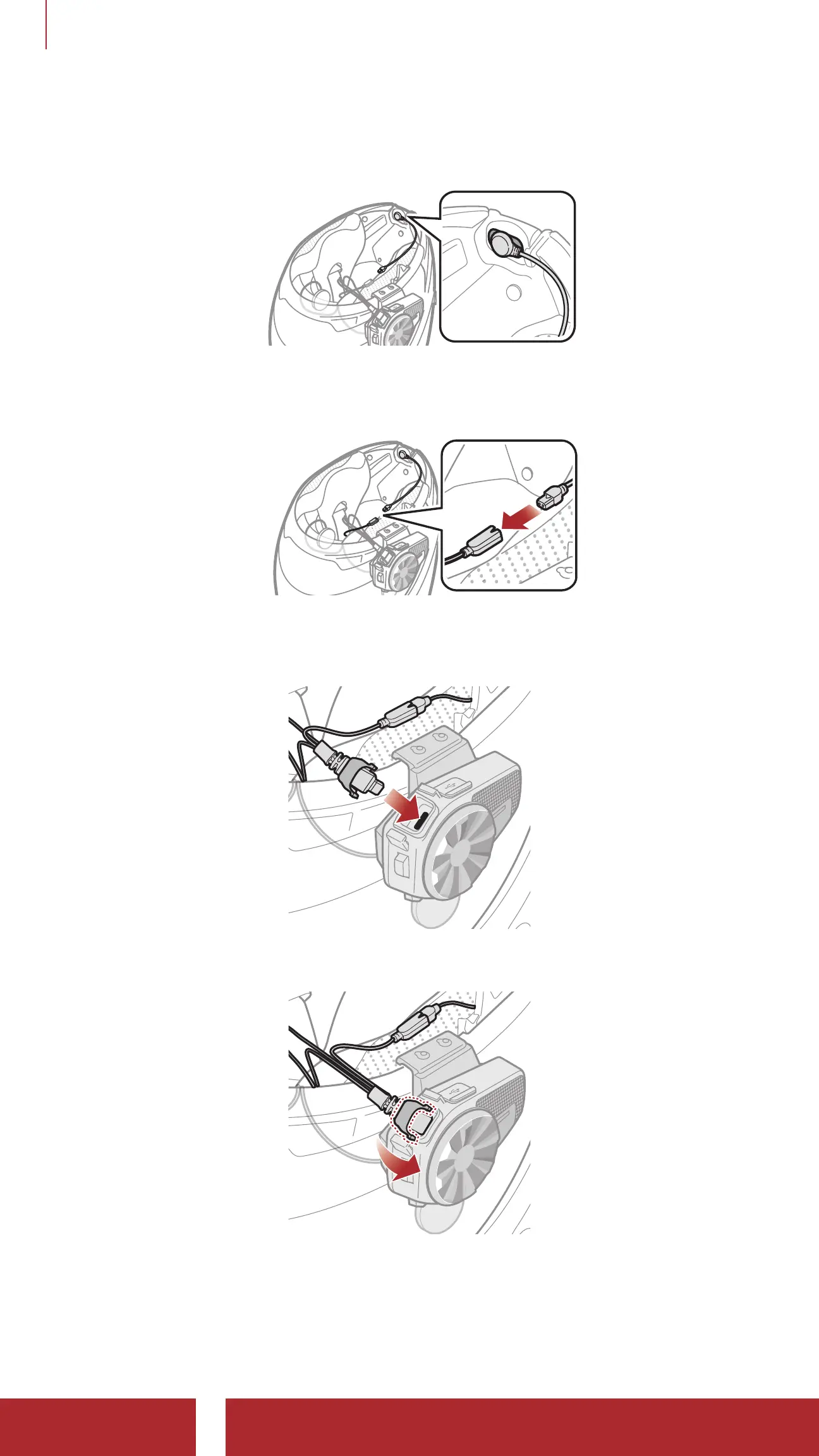

2. Attach the wired microphone to the hook and loop fastener for wired
microphone.
3. Align the arrows on the microphone and speaker cables and insert
the microphone cable into the microphone connector.
4. Insert the speaker cable into the speaker and microphone port to
connect it to the main unit.
5. Close the cover of the speaker cable to lock the cable to the port.
