REAR PANEL FEATURES

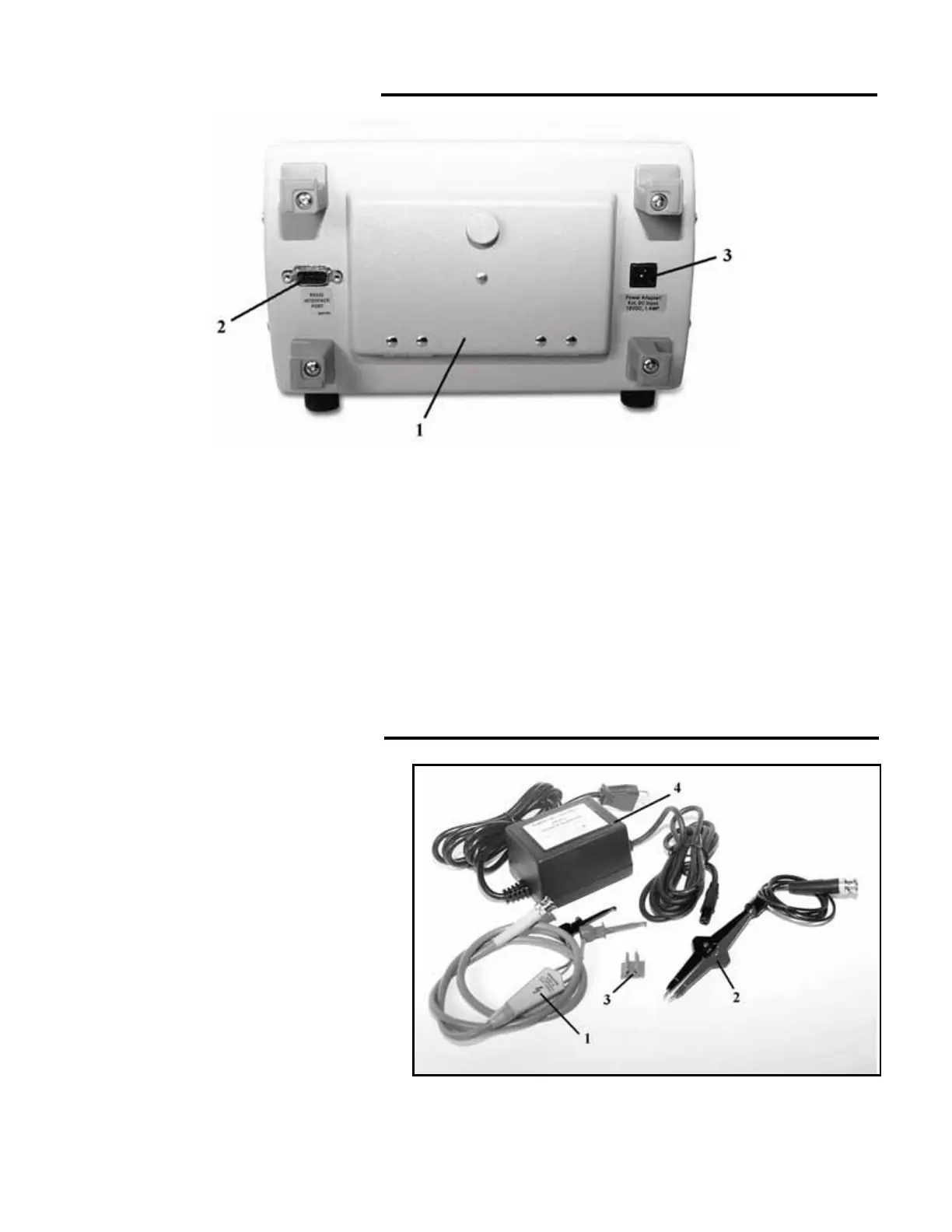

Fig. 2: Location of rear panel features.
1. BATTERY COMPARTMENT COVER –
Provides access to the (optional) BY289
rechargeable battery.
2. RS-232 SERIAL CONNECTOR – Allows
connection to a computer for automated operation.
3. POWER ADAPTER Jack – Connects to supplied
PA251 POWER ADAPTER for 110 VAC operation,
or (optional) PA252 for 220 VAC operation.
SUPPLIED ACCESSORIES
1. Out-of-Circuit Test Leads (39G219) –
Special low capacity cable with E-Z Hook®
clips. Connect to TEST LEAD jack.
2. Adjustable In-Circuit Test Probe (AP291)
patent pending – Exclusive in-circuit probe
with width adjustment wheel and test
activation switch. Connect to TEST LEAD
jack.
3. Test Lead Mounting Clip (64G37) – Use to
hold test leads when not in use.
4. Power Adapter/Charger (PA251) – Plugs
into POWER INPUT to power unit from 105-
130 VAC line. Also recharges the (optional)
BY289 battery when installed inside the
LC103.
Fig. 3: Supplied Accessories
