SOHO Power Supply
9
3.2 System Wiring
MCCB
Feedback
Run/Stop
Digital Output
Fault, W24
Input
Terminal
Surge
Filter
Fuse
Isolation
Transformer
Feedback
RUN/STOP
Airconditioner Lights
Electronic
Devices
Engine Generator
SOHO 37PS4N

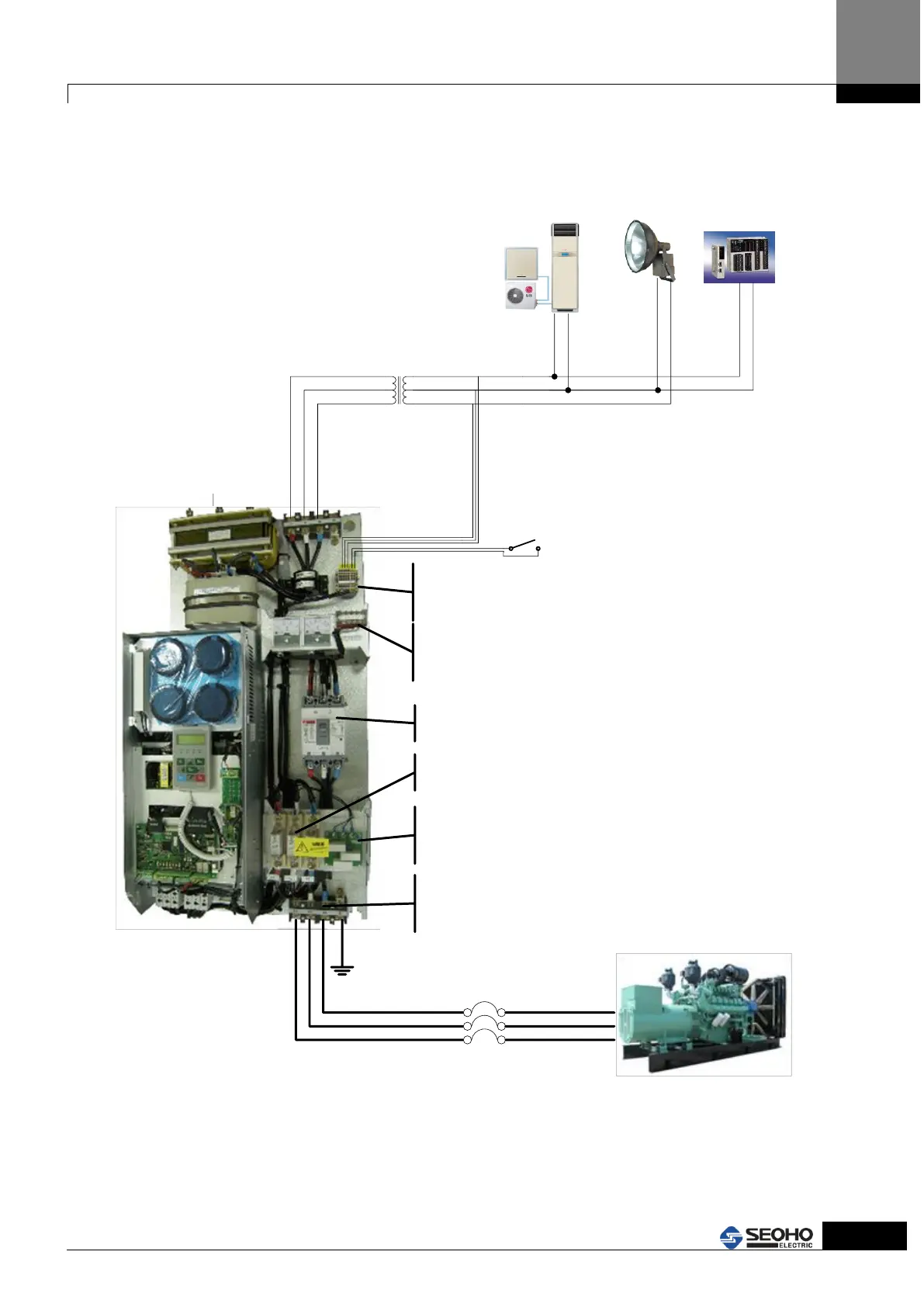

Figure 3.1 System Wiring
