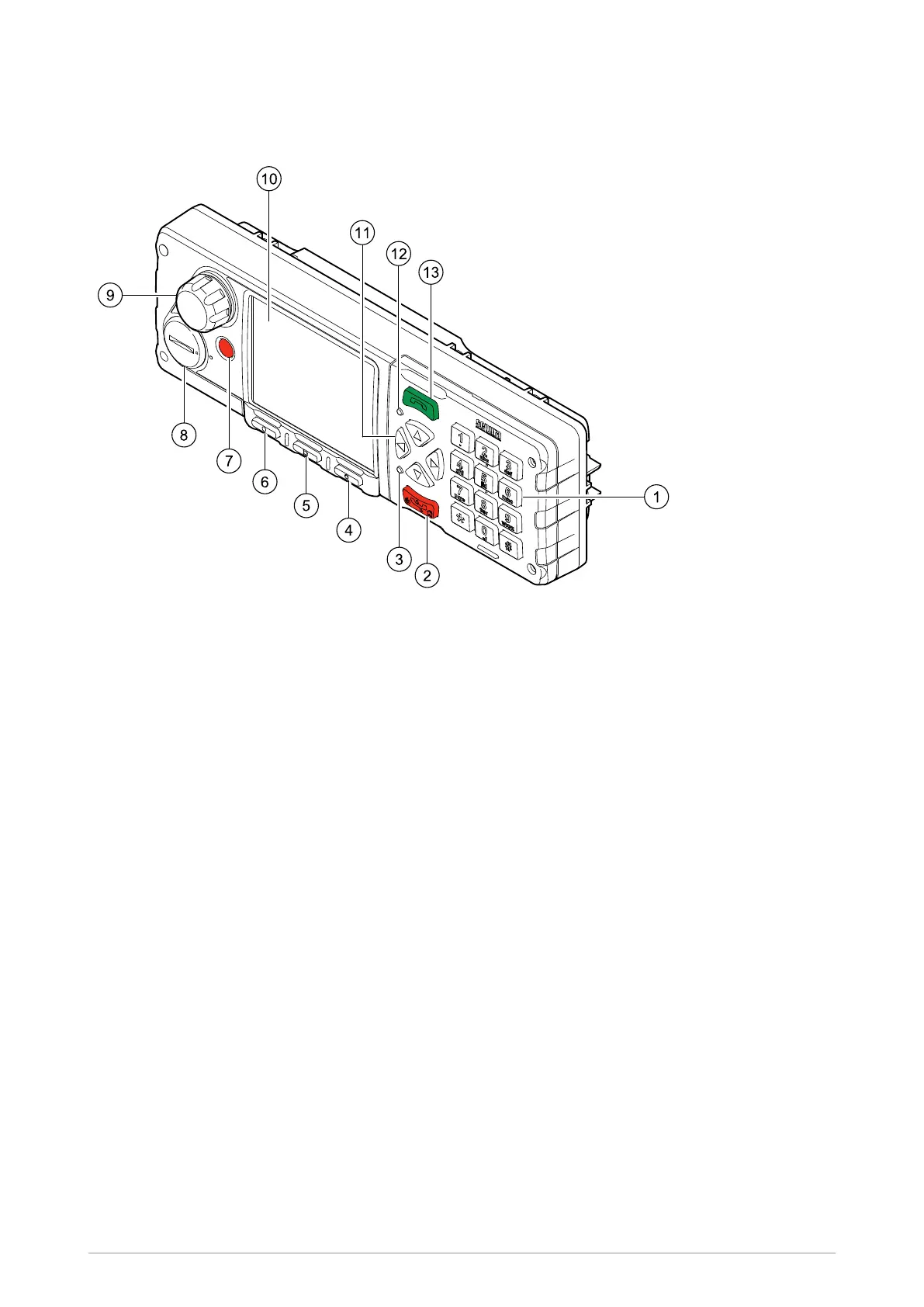

Your console at a glance
Item Description
1 Alphanumeric keypad with backlight. Use the keypad to enter alphanumeric characters for text
editing and dialling. Keys 0–9, # and * are programmable soft keys.
2 Red (Cancel/Home) key. Press and hold (2 seconds) to power on your radio. From the Home
screen, press and hold (4 seconds) to power off. Press and hold (2 seconds) to return to the Home
screen from any other screen.
3 Tri-colour LED (indicator). Indicates various operational states of the radio.
4 Right context key. Press to activate the feature or option that appears directly above the key.
5 Centre context key. Press to activate the feature or option that appears directly above the key.
6 Left context key. Press to activate the feature or option that appears directly above the key.
7 Emergency Button. Press and hold (2 seconds) to initiate an Alarm Call.
8 VAC connector.
9 Navi-knob. A continuously rotating knob used to adjust the volume of an independent loudspeaker
or through an earpiece.
10 Colour display with backlight.
11 Navigation keys. Use to scroll through lists and move the cursor when writing text.
12 Blue LED. (indicator). Indicates a missed event such as a call, Callout or message.
13
Green (Select/Send) key. Press to initiate a half-duplex individual call or a full-duplex call.
Press to select a menu item or action a function, or send a status or text (SDS) message.
User Guide 1
