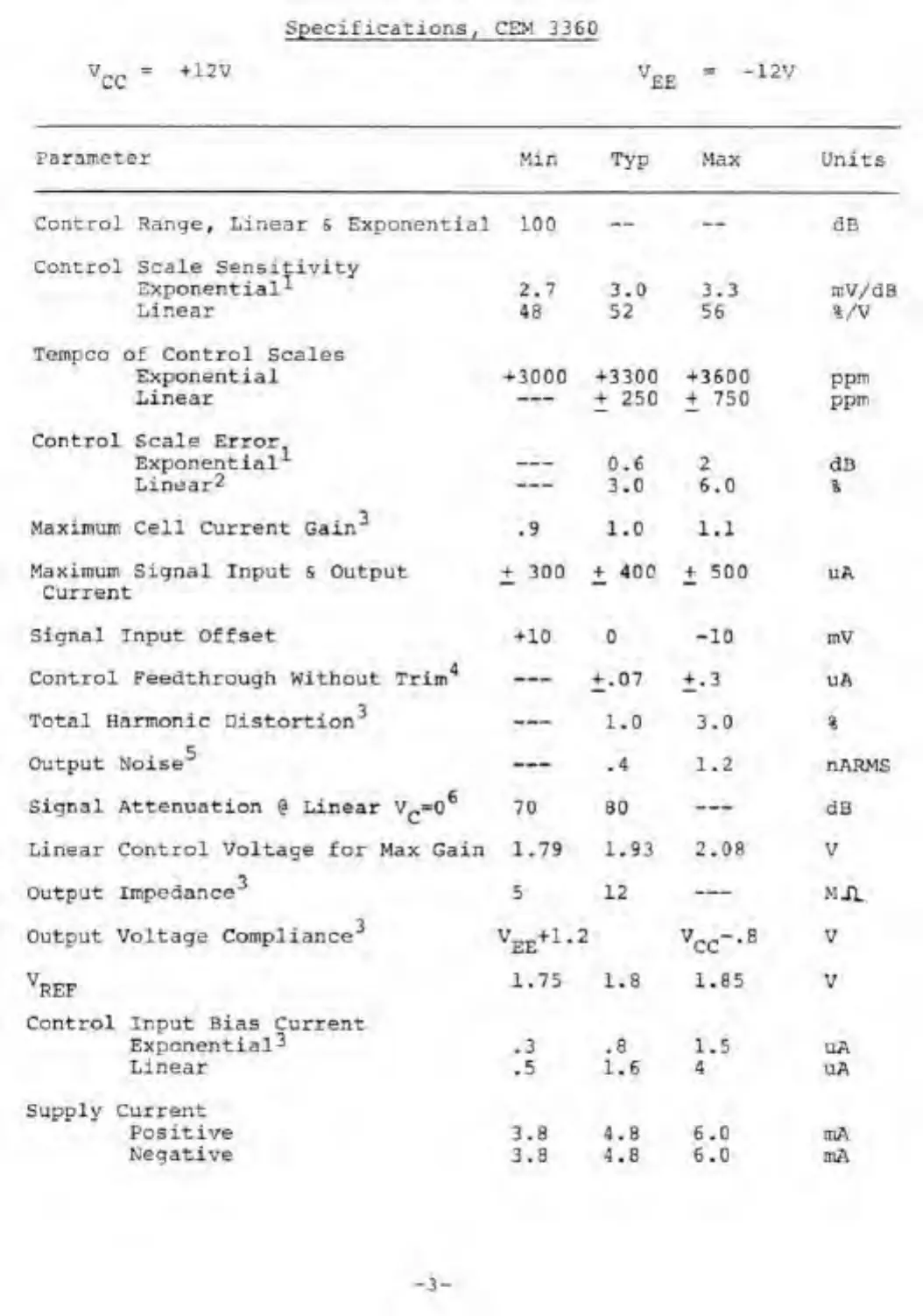

Specifications, CEM 3360
V CC = *12V
V EE
- -12V
Parameter Min Typ Max
Units
Control Range, Linear & Exponential 100 -- -- dB
Control Scale Sensitivity
Exponential 1 2.7
3.0 3.3 mV/dB
Linear 48 52 56 %/V
Tempco of Control Scales
Exponential 4-3000 +3300 + 3600 ppm
Linear
—
+ 250 + 750 ppm
Control Scale Error.
Exponential 1
———
0.6 2 dB
Linear 2
—
3.0 6.0
%
Maximum Cell Current Gain 5 .9 1.0 1.1
Maximum Signal Input & Output + 300 + 400 ♦ 500
uA
Current
Signal Input Offset
+ 10 0 -10 mV
Control Feedthrough Without Trim 4
—
+ .07 + .3 uA
Total Harmonic Distortion 5 —
1.0 3.0
%
Output Noise 5
—
.4 1.2
nARMS
Signal Attenuation @ Linear V c =0 6
70 80
—
dB
Linear Control Voltage for Max Gain 1.79 1.93 2.08 V
Output impedance"*
5
12
—
MJL
Output Voltage Compliance 5
V EE +1 *
2
V cc -.8
V
v
REF
1.75 1.8 1.85 V
Control Input Bias Current
Exponential 3
.3 .8 1.5
UA
Linear .5 1.6 4
UA
Supply Current
Positive
3.8 4.8 6.0 mA
Negative 3.8 4.8 6.0 mA
