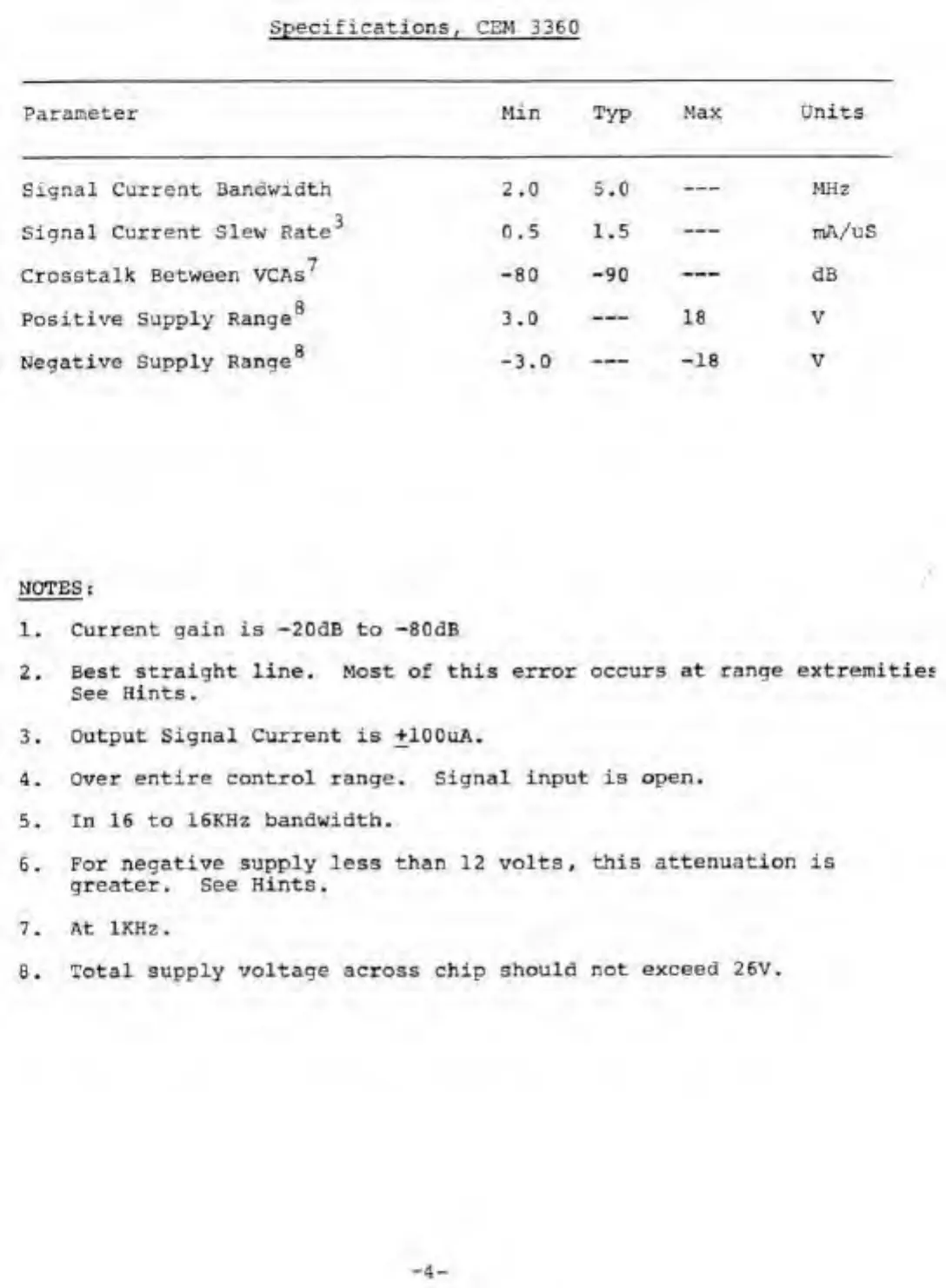

Specifications, CEM 3360
Parameter Min Typ Max Units
Signal Current Bandwidth 2.0 5.0
—
MH2
Signal Current Slew Rate 3 0.5 1.5
—
nA/uS
Crosstalk Between VCAs' -80 -90
—
dB
Q
Positive Supply Range
3.0
-—
18 V
Q
Negative Supply Range -3.0
—
-18 V
NOTES ;
1. Current gain is -20dB to -80dB
2. Best straight line. Most of this error occurs at range extremities
See Hints.
3. Output Signal Current is +100uA.
4. Over entire control range. Signal input is open.
5. In 16 to 16KHz bandwidth.
6. For negative supply less than 12 volts, this attenuation is
greater. See Hints.
7. At lKHz.
0. Total supply voltage across chip should not exceed 26V.
