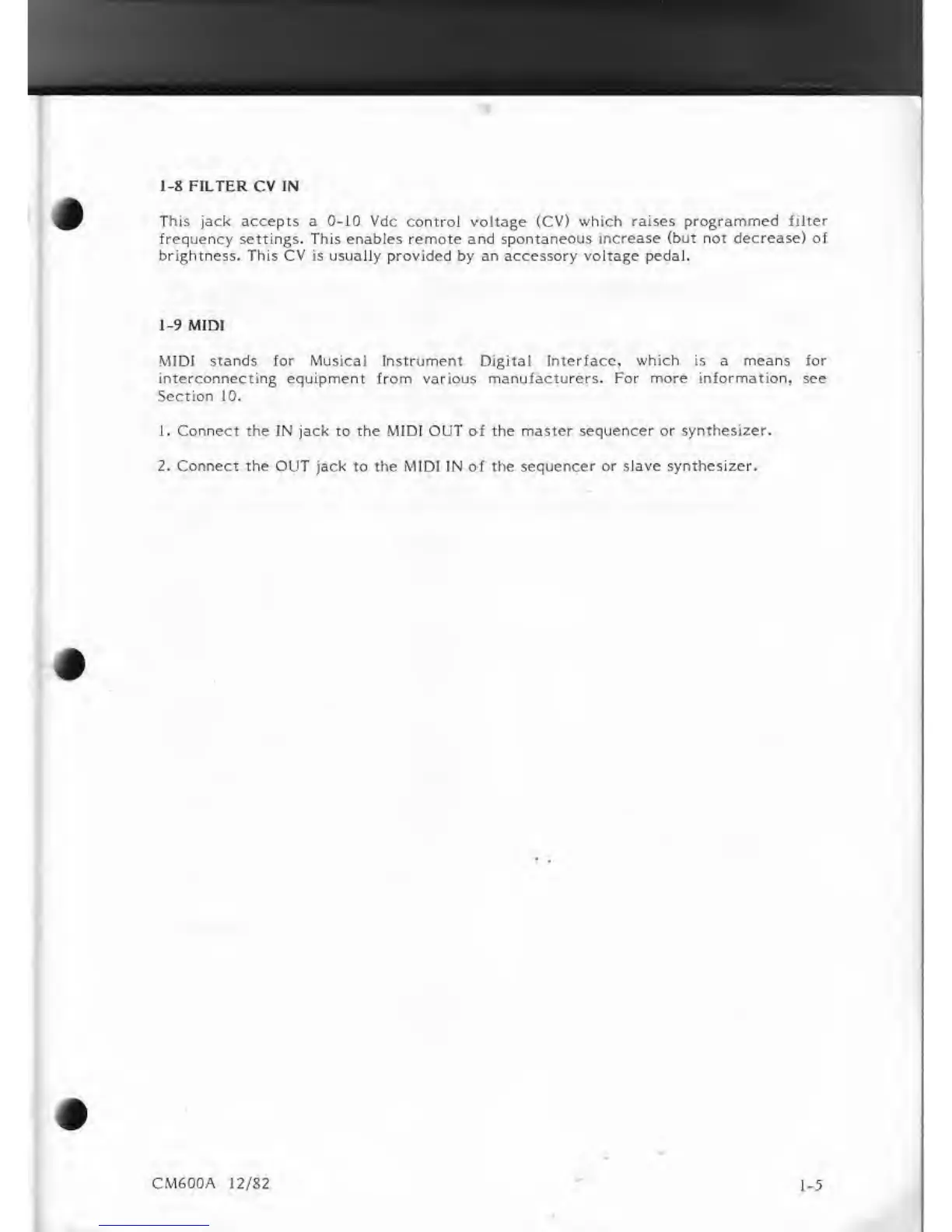

FILTER CV IN
This jack accepts a
0-10
Vdc control voltage (CV) which raises programmed
filter
frequency settings. This enables remote and
spontaneous increase (but not decrease) of
brightness.
This CV is usually
provided by
an
accessory
voltage
pedal.
1-9 MIDI
MIDI stands for Musical Instrument
Digital
Interface, which is a means for
interconnecting equipment from various manufacturers. For
more information,
see
Section 10.
1. Connect
the IN jack to the MIDI OUT of the master
sequencer
or
synthesizer.
2. Connect the OUT jack to the MIDI IN
of
the sequencer or slave synthesizer.
CM600A 12/S2
