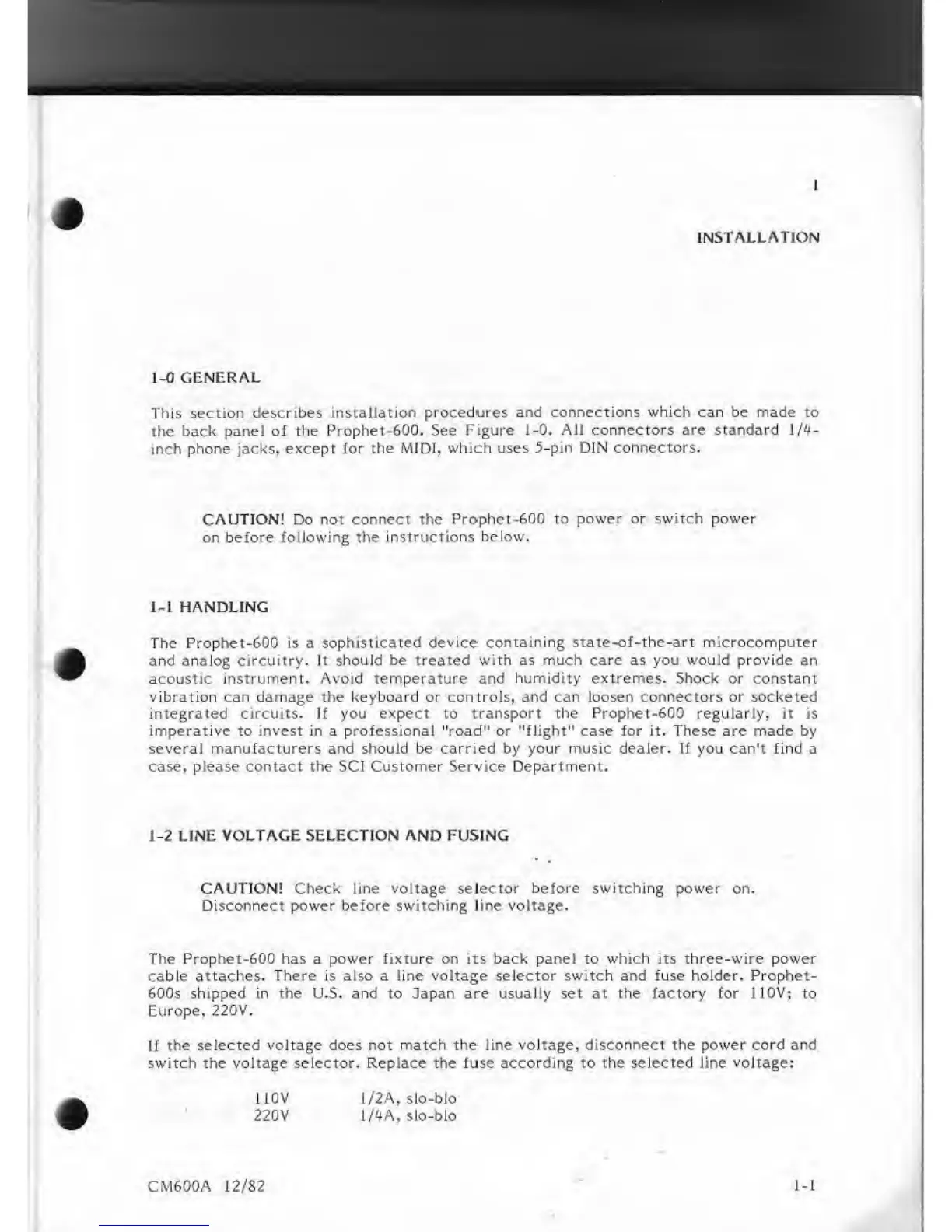

INSTALLATION
1-0
GENERAL
This section describes
installation procedures and connections
which
can be made to
the back panel of the
Prophet-600. See Figure
1-0.
All
connectors
are
standard 1/4-
inch phone jacks,
except for the MIDI, which uses
5-pin
DIN
connectors.
CAUTION! Do
not connect the Prophet-600 to power or switch power
on before
following the instructions below.
1-1
HANDLING
The Prophet-600 is a
sophisticated device containing state-of-the-art microcomputer
and analog circuitry. It should be treated with as much care as you would provide an
acoustic
instrument. Avoid temperature and humidity extremes. Shock or constant
vibration can damage the keyboard or controls,
and
can
loosen connectors
or
socketed
integrated circuits. If
you
expect to transport the Prophet-600 regularly,
it is
imperative
to
invest
in a professional "road" or "flight" case for it. These are made by
several
manufacturers
and should
be carried by
your music
dealer.
If
you can't
find
a
case,
please contact the
SCI
Customer Service Department.
1-2
LINE
VOLTAGE SELECTION AND FUSING
CAUTION! Check line voltage selector before switching power on.
Disconnect power before switching line voltage.
The Prophet-600 has a power fixture on its back panel to which its three-wire power
cable attaches. There is also a line voltage selector switch and fuse holder. Prophet-
600s
shipped in the
U.S. and to
Japan
are usually set at
the
factory for
110V;
to
Europe, 220V.
If
the selected
voltage
does not
match the
line
voltage, disconnect the power cord and
switch the
voltage
selector. Replace
the
fuse
according to the selected line voltage:
110V
220V
1/2A,
slo-blo
1/4A, slo-blo
CM600A 12/82
l-l
