PROGRAM
as
000
000
000
PROGRAM
SELECT
•
TO
TAPE
•
FROM
TAPE
TUNE
»
PRESET
•
RECORD
SEQ SEO (ARPEG ARPEGi
2 I I
UPON
|
[A55tGM|
1
?^
:*
5 5
SPEED
PROGRAM display: Indicates
current program in Preset or Manual
Modes. Indicates
Edit Mode by
lighting decimal point between the
digits.
PROGRAM
SELECT
0-9 switches: Used
to
select program numbers
00-
99.
TO TAPE switch: Used for initiating program and sequence storage
through cassette interface.
FROM
TAPE switch:
Used for
verifying and loading programs and
sequences through cassette interface.
TUNE
switch: Activates
and indicates computer tuning of oscillators
and filters.
PRESET switch: When on, indicates the Prophet-600 is programmed
according to memory. When unlit, indicates Manual Mode.
RECORD switch: Used for storing programs or sequences, or initiating
tape interface operations. Also used to latch arpeggiator.
SEQ l and SEQ 2 switches: Selects sequence banks for recording or
playback.
ARPEG UP-DN switch: Controls arpeggiator by key position.
ARPEG ASSIGN switch: Controls arpeggiator by key order.
SPEED knob: Adjusts arpeggiator and sequence playback rate.

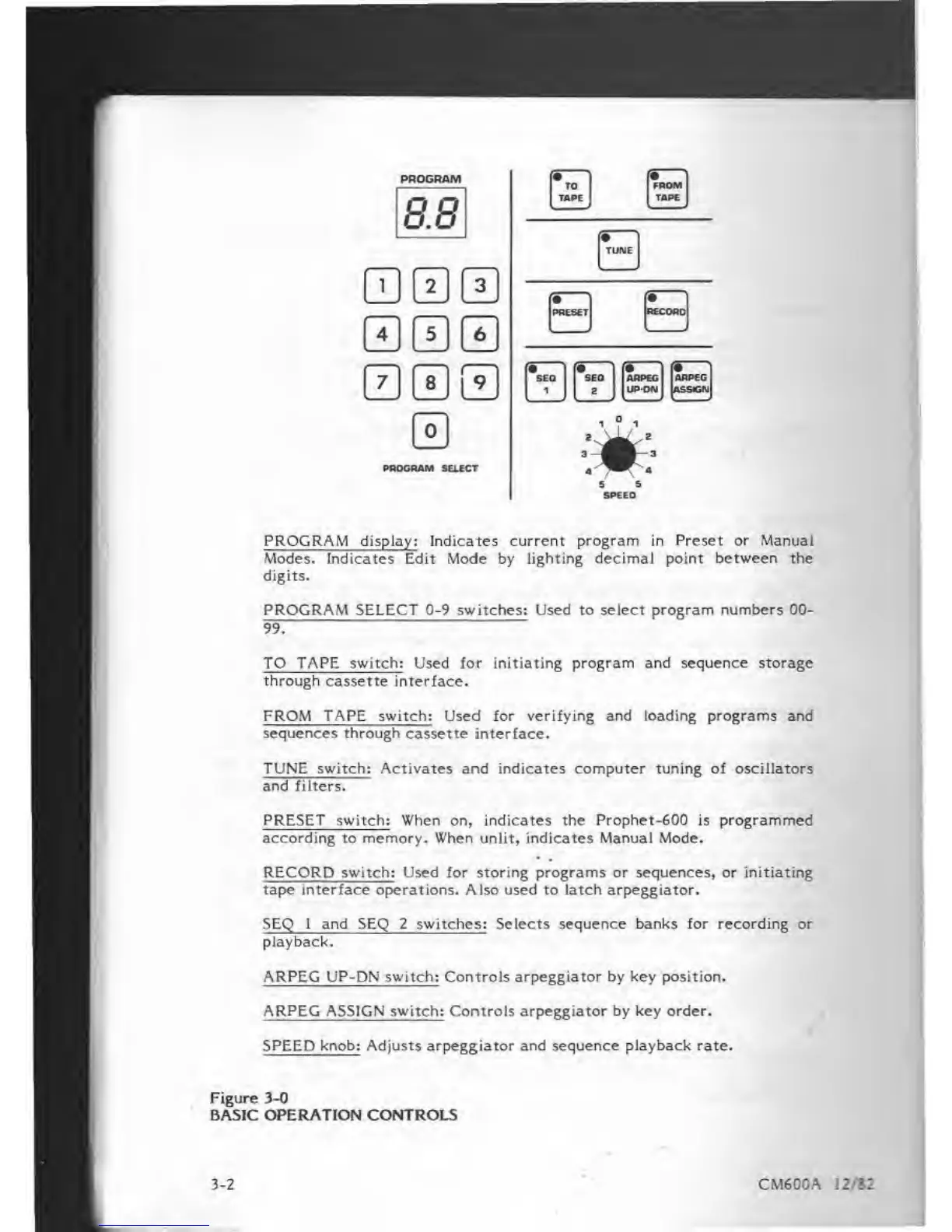

Figure
3-0
BASIC OPERATION CONTROLS
3-2
CM600A 12/82
