LISST-200X User’s Manual LISST-200X Introduction and Tutorial Page 19
External Digital Input, and Time Delay. Select the mode by clicking on
the button next to its label. Select the correct parameters as required.
For this example let’s select the External Mechanical Switch Start
Condition.
Step 13: Setting
Stop Conditions

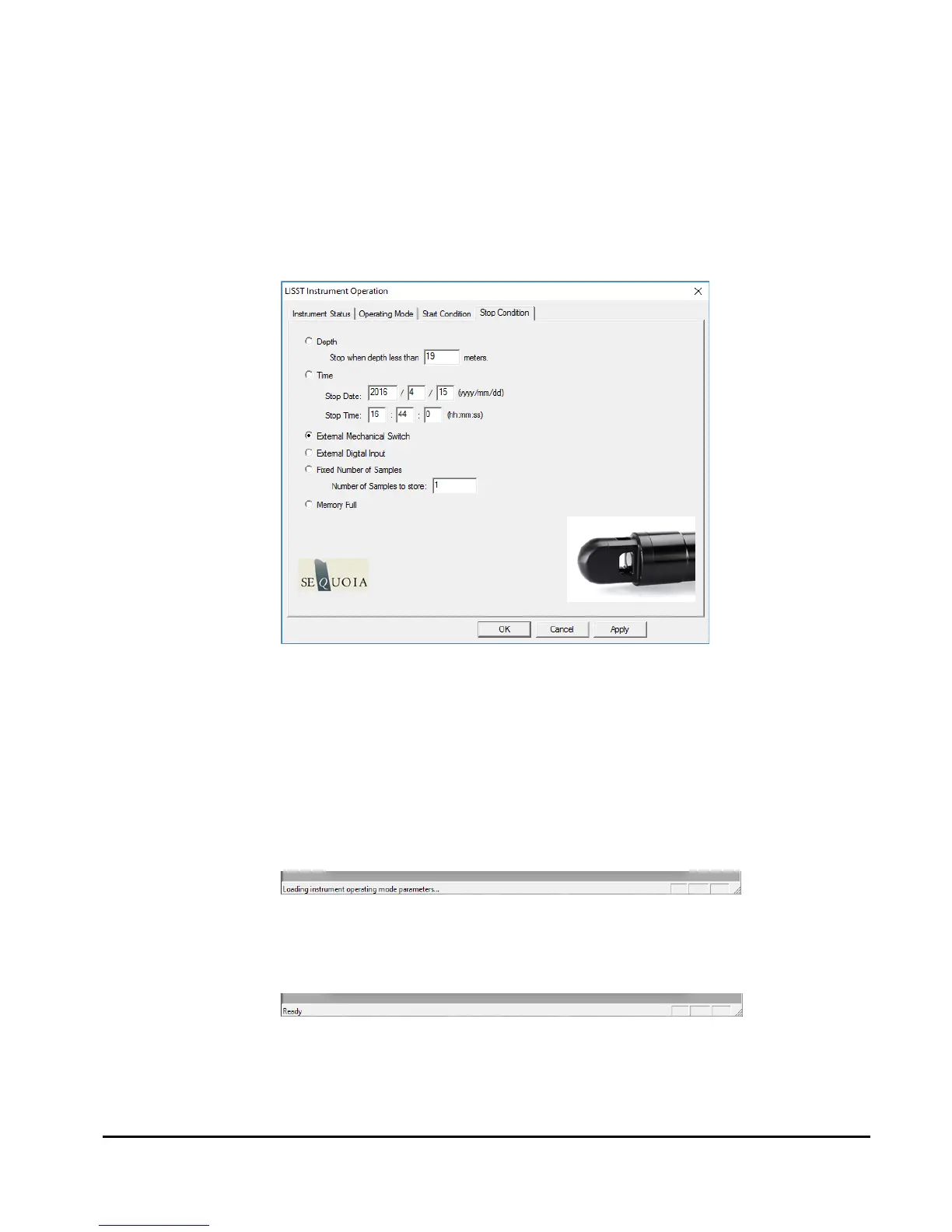

Similarly the Stop conditions can also be selected. Click on the Stop
Condition Tab to open the Stop Condition window. The available stop
conditions are: Depth, Time. External Mechanical Switch, External
Digital Input, Fixed number of Samples, and Memory Full (<less than
6.5 V).
For this example, choose the External Mechanical Switch as the Stop
condition.
After selecting the Stop Conditions, click the APPLY button to
complete the configuration. This will transfer the settings to the
instrument. Then return to the Instrument Status page by clicking on
the Instrument Status Tab. It may take several seconds to configure
the sampling parameters on the LISST-200X. The status bar at the
bottom of the main window will indicate when a process is underway:
The status bar will return to ‘Ready’ when the process is completed:
Step 14: Saving
Settings for
The Instrument Status Page will now display the summary of the
settings that have been selected. These settings can be saved for
To Next Page
